Home > Computer Products > Keyboard > Mechanical Keyboard > IP68 Dynamic Rated Washable Industrial Membrane Keyboard With Integrated Numeric Keypad

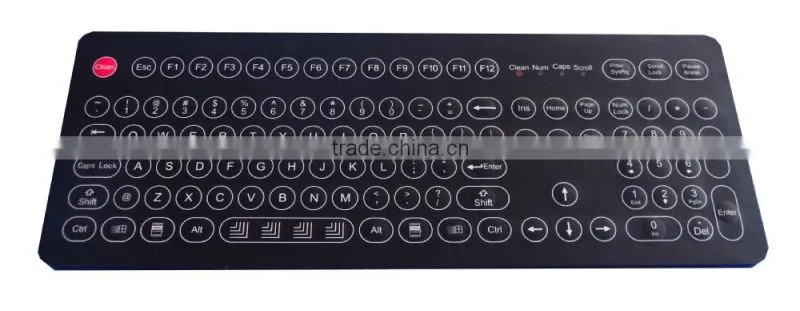

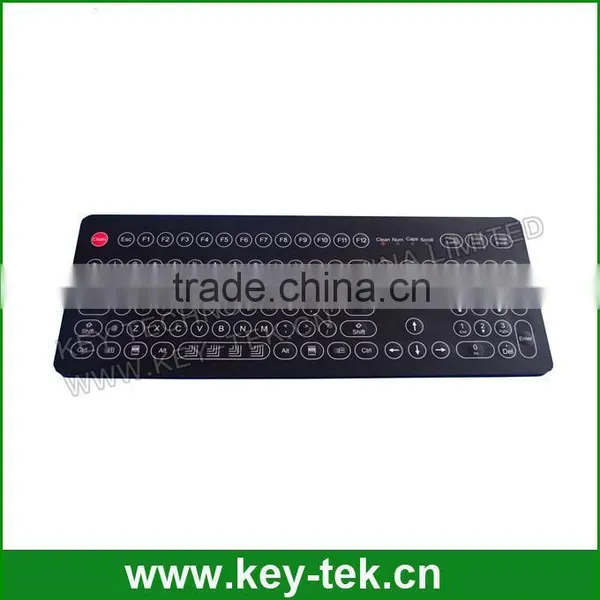

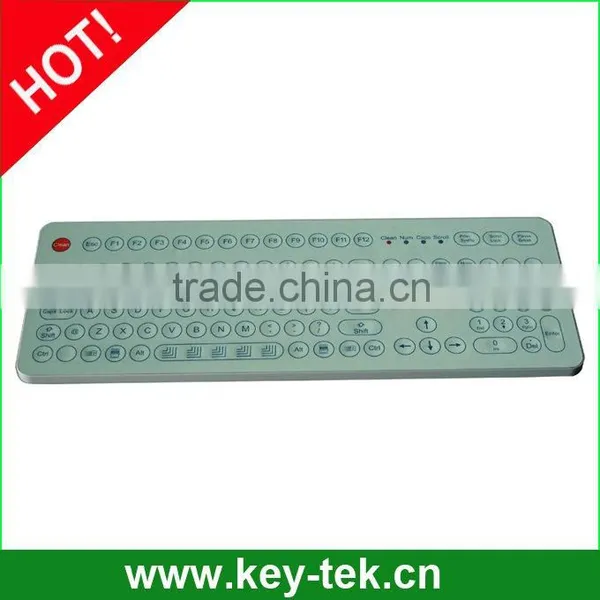

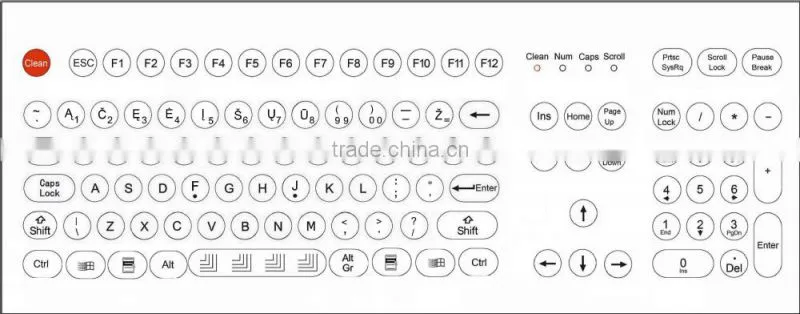

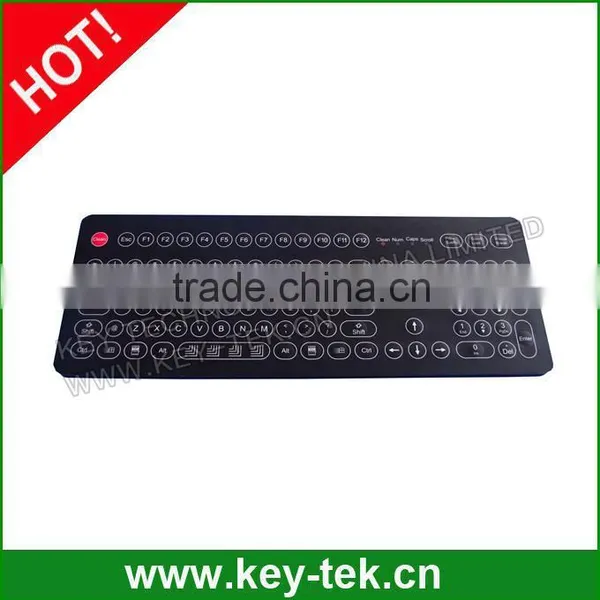

IP68 Dynamic Rated Washable Industrial Membrane Keyboard With Integrated Numeric Keypad
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, DESKTOP
Type:
Other, WIRED
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen and HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PS/2 Industrial Membrane Desktop Keyboard With TouchpadNegotiableMOQ: 1 Set -
25 Keys Industrial Waterproof Membrane Keypad With Numeric KeypadUS$ 1 - 200MOQ: 1 Piece
-
19 Keys Industrial Waterproof Membrane Keypad With Numeric KeypadUS$ 1 - 200MOQ: 1 Piece
-
Panel Mounted Membrane Keyboard With Mechanical Trackball and Numeric KeypadUS$ 1 - 300MOQ: 1 Piece
-
Industrial Waterproof Mini Compact Membrane Keyboard With Alpha and FN KeysUS$ 1 - 200MOQ: 1 Piece
Products Status
Stock
Application
Other, DESKTOP
Type
Other, WIRED
Style
Standard, Other, Standard, STANDARD
Interface Type
PS/2, USB, Other, PS/2, USB, USB or PS/2
Brand Name
HI-KEY,KEY-TEK
Model Number
K-TEK-D399KP-FN-DT
Place of Origin
Guangdong, China
Description: IP65 compact format polystyrene medical keyboard, metal dome key switch technology with short stroke 0.45mm, with antimicrobial keyboard surface, standard alone desk top version with robust polycarbonate case.
Dimension:399.0mm x 150.0mm x 20.0mm (L x W x H)
MAIN FEATURE
- MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
- MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
- MILITARY: Army, Navy, Air force
- INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
- OTHER INDUSTRIES
MECHANICAL DATA
- Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
- The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
- Clean key
- -Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime
- -User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
- Special dura-coating for excellent mechanical and chemical resistance
- With firm tactile key feel, 0.45mm key travel.
- Integrated numeric keypad.
- Ease of customizing with multiple languages, to accommodate foreign or custom variants.
- PS/2, USB connection cables that plug directly into computer like keyboard operations.
- Enclosure: polystyrene, ABS Polycarbonate Case
- Low-profile keys for easy cleaning
- Key life: 5 millions
MECHANICAL DATA
- Key: 108 keys
- Key top style: Protuberant circular keys with tactile feeling.
- Switch life: more than 3 million of operations.
- Actuation Force:1.0 N+/-0.1N for normal key
- Enclosure Material: polystyrene
- Colors: 4 (Blue, white, grey, black)
- Cable Length: 2.5m
- G.W.: 1.50KGs
- Dimensions: 399.0mm x 150.0mm x 20.0mm (L x W x H)
ELECTRICAL DATA
- Supply Voltage: +5V DC +/-5%
- Current Rating:
PS2: keyboard with 210mA@5V (from keyboard port)
Touchpad: 10mA@5V (from mouse port)
USB: 220mA@5V (from CPU port) - EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003
- Emission: EN 50081-1
- Immunity: EN 50082-1
- Lifespan> 3 years
- Key switch Technology: metal dome key switch technology with short travel keys
- Interface: PS2, USB available.
- OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/win7, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
- Operating temperature:-20oC to +55oC
- Storage temperature: :-30oC to +65oC
- Operating RH: 30-90%
- Atmospheric pressure: 60-106Kpa
- Shock: 3x11 ms pulses of 50g on each of 3 axes
- Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
- Flammability
PRINTED CIRCUIT BOARD: 94 VO
SILICONE OVERLAY: 94 HB
INTERFACE CABLE: 94 V
RELIABILITY
- RoHS Compliant, CE and FCC
- Protection Level: IP68, NEMA 6P
- MTBF >50000H
- MTTR <30min
