Specifications
hdpe boardmaterial: 100% pure PE and 100% pure PP
certificate: ISO9001, CE, FDA, SGS

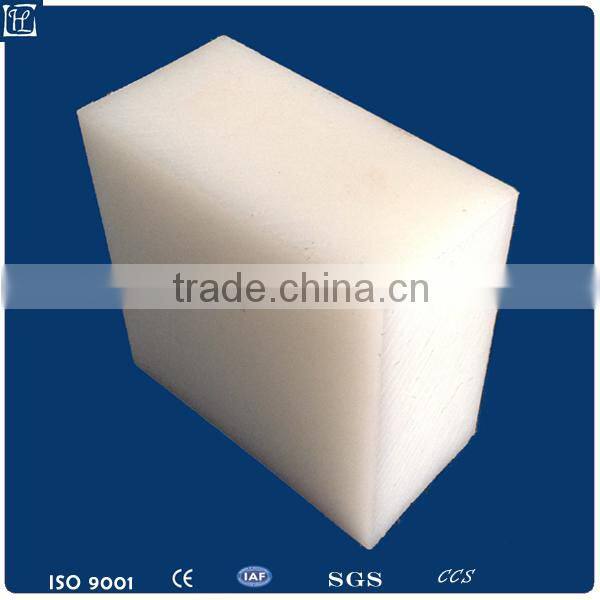

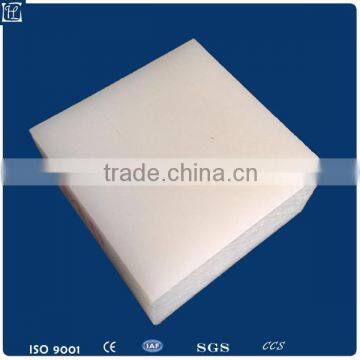

PRODUCT NAME: LDPE HIGH-DENSITY POLYETHYLENE HDPE BOARD
PARAMETERS
ITEM | TEXT METHOD | Ticona GUI4152 | Ticona GUS4150,4120 | UNIT |
Molecular weight |
| 1.5million-4million | 1.5million-8million |
|
Density | ISO1183-1:2012/DIN53479 | 0.92-0.98 | 0.93-0.98 | g/cm3 |
TensileStrength | ISO527-2:2012 | ≥20 | ≥22.0 | Mpa |
Compression Strength | ISO 604:2002 | ≥30 | ≥32 | Mpa |
Impact Strength |
| KJ/m2 | No broken |
|
Elongation at break | ISO527-2:2012 | ≥280 | ≥300 | % |
Dynamic Friction coefficient | ASTM D 1894/GB10006-88 | ≤0.20 | ≤0.18 |
|
Notched impact strength (Charpy) | ISO179-1:2010/GB/T 1043.1-2008 | ≥100 | ≥100 | kJ/m2 |
Abrasion wear index | ES-X60210-2008 | ≤30 | ≤30 | mg |
water absorption |
| 0.01% |
|
|
Vicat softing point | ISO306:2004 | ≥80 | ≥80 | °C |
Hardness shore-D | ISO 868:2003 | 60-65 | 61-66 | D |
CHARACTERISTICS OF HDPE BOARD
Excellent chemical resistance | Excellent chemical resistance |
FDA Certified for food processing | FDA Certified for food processing |
Resists organic solvents, degreasing agents & electrolytic attack. | |
DESCRIPTION OF HDPE BOARD
HDPE SHEET represents an excellent combination of good sliding characteristics and
high resistance to wear and also possesses flame inhibiting qualities of class V0 according to the international test process UL94.It is very light and extremely tough, chemically resistant plastic
UHMWPE has physical and chemical properties which are high wear resistance, low firction coefficient. It can withstand repeated impact, vibrantion, mechanical performance is excellent, light weight, easy installation, no maintence, low noise, smooth operation.
SIZE AVAILABLE OF HDPE BOARD
Width(mm) | Length(mm) | Thickness(mm) |
600-2000 | 600-2000 | 1-200 |
(Note: we can supply any color or size)
ADVANTAGES
Good Electronic and Dielectric properties | Relative low cost |
Chemical resistance to solvents, acids and alkalies. | Light weight |
Toughness and flexibility even at low temperatures | Ease of fabrication |
Low coefficient of friction | Food contactable |
WHY CHOOSE US?
Quality | Standard production line, Quality control and management |
Certificate | ISO9001, CE |
Price | reasonable prices to your market |
Stock | Goods in stock to meet your need |
Customer | high evalution from global customers, or at least no one complain. |
COMPANY INFORMATON
Advantage of us
More than 10 years experience in plastic production
Cooperate with leading raw material manufacturer
High virgin grade with 100% high quality raw material
Package and delivery by international standard pallet
What we do
Offer all kinds of PE,HDPE,LDPE,UHMWPE,ABS,PP products for any shapes, sheet, gear and customsized size. Yes we do!
Where we are
Located in the economy centre of China----Shanghai, convenient trasnportation and best technical support
Why choose us
`Plastic board: a wide range, good quality, reasonable prices and stylish designs
`Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
`Technical Support and full service convenient
PRODUCT LINE OF HDPE BOARD
CONTACT US PLEASE!
Hanliang Technology Co., Ltd (HL) is a professional enterprise and one of the earliest developers of plastic sheets and rods in China. Our main products include PP, PE, PC, PVC, ABS sheet and other types of plastic sheet customized.
Any more questions and inquiries are appreciated
Ease leaves me a message below
Will get back to you ASAP
