2.ISO9001,CE,ROHS certificate
3.OEM,ODM
4. the wire length and the socket can design as customer reqrirement.

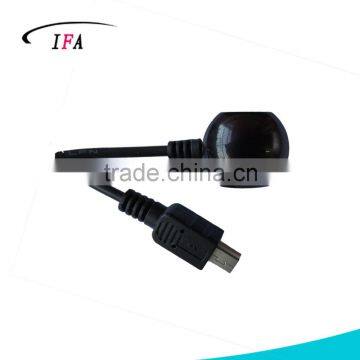

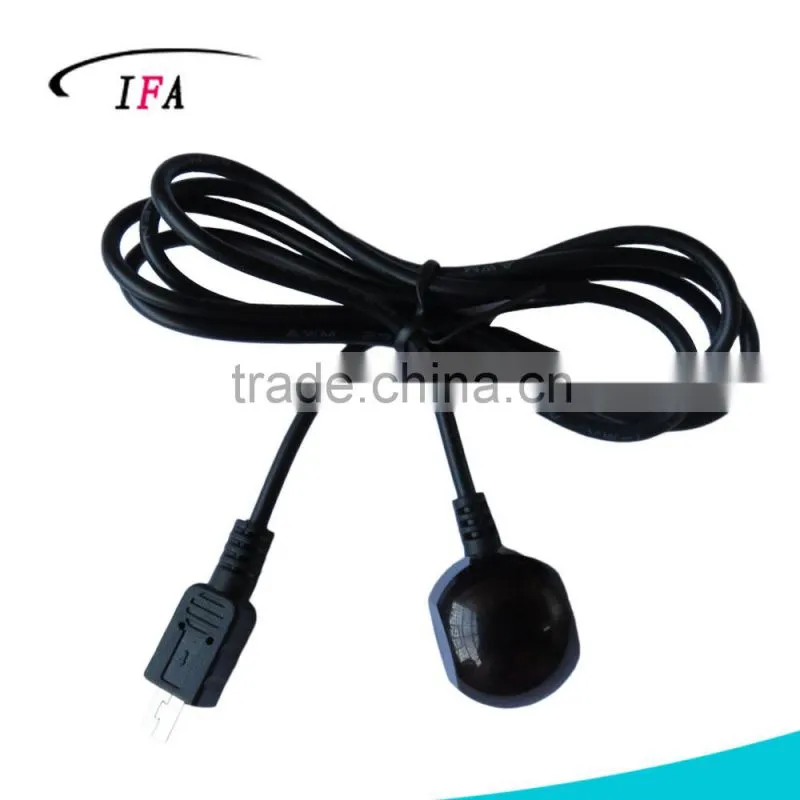

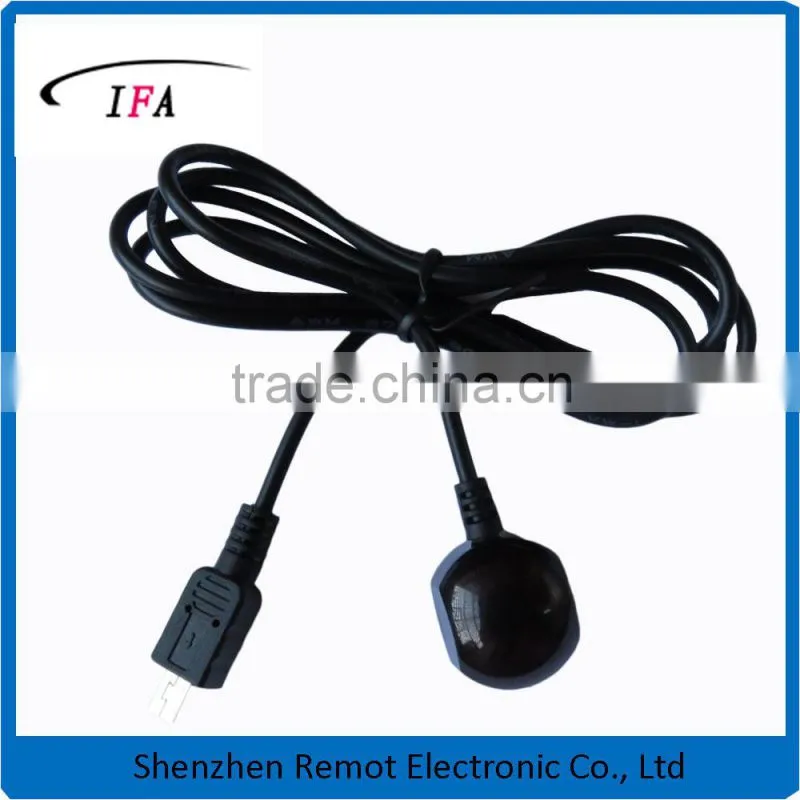

ir receiver cable ir receiver emitter cable ir receiver extender cable
Specification
| Model | DX9-MU |
| Size | 24*21*14mm |
| Length | 100-500cm option |
| Frequency | 36,38,56KHZ option |
| Appliance | Setup box,DVB car Audio,amplifier |
China factories supply ir receiver extender cable
Optical parameters (T=25℃ Vcc=5v f0=38KHZ)
| Parameters | Mark | Test condition | Min | Type | Max | Unit |
| Working votage | VCC | 2.7 | 5 | 5.5 | V | |
| Working Current | Icc | 0.6 | 0.8 | mA | ||
| Quiescent current | Ice | With out signal | 0.1 | 0.5 | mA | |
| Receive distance | L | 20 | 23 | M | ||
| Receive angle | θ1/2 | +/-60 |
Deg | |||
| Carrier frequency | f0 | 38 |
KHZ | |||
| BMP width | fBW | -3Db Bandwidth | 8 | kHz | ||
| Low output | VOL | Vin=0V Vcc=5V | 0.4 | V | ||
| High output | VOH | Vcc=5V | Vcc-0.3 | Vcc | V | |
| Output pulse Width | TPWL | Vin=50mVp-p | 500 | 600 | 700 | μS |
| TPWH | Vin=50mVp-p | 540 | 640 | 740 | μS |
|
1. Q: Can we do OEM project?
A: Yes, no problem. Custom logo and custom packing will be no problem for us. For example, custom artworks and patterns printing on phone cases, and OEM brand batteries, chargers etc. with your own logos.
2. Q: Is quality guaranteed? How ACC do QC?
A: Definitely, quality is the most important factor to maintain a company's reputation, so it's a must! Product Quality is always strictly controlled by our QC staff members before delivery. It is promised and gaurateed! If you have time and would like to visit our factory before ordering, you will be highly welcome!
3. Q: Is it safe to deal with ACC?
A: Of course, ACC has been a verified gold supplier of Alibaba, has exported all over the world.
4. Q: Are ACC's products available in a variety of colors and sizes?
A: Yes. ACC supply over 10000 different models, available in a variety of colors and sizes for mobile phone accessories like chargers, cables, earphones, cases, power banks, batteries, screen protectors, mini speakers, etc. You can advise the size or color you need and if we don't have the existing ones, they can be customized.
5. Q: Can ACC provide the best service?
A: Of couse. ACC has a great sales team, professional and helpful, always try the best to offer the best service to you!
6. Q: are you accept Paypal?
A:for the first cooperation, you can pay through Escrow or Paypal if worry about the safty.
