Specifications
Surface treatment: Tin-plated mini 15 micronsProduct Property: It is in accordance with DIN 46329. And its barrel cappe

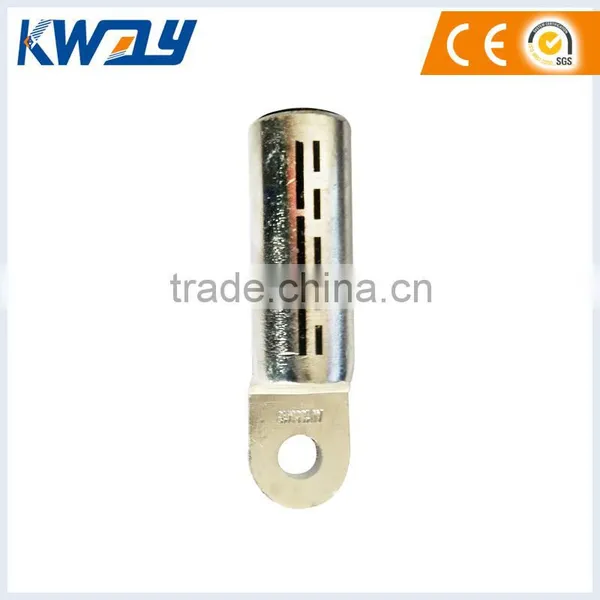

ALUMINIUM LUG(AU SERIES)
Size from 16mm2 up to 300mm2
Material: Al-99.5
Surface treatment: Tin-plated mini 15 microns
Product Property: It is in accordance with DIN 46329. And its barrel capped is filled with joint compound to avoid oxidization. And its type test is in accordance with IEC 61238-1.
Type |
Dimensions(mm) |
Die Code |
||
L |
d |
Φ |
||
AU16-8 |
60 |
5.8 |
8.4 |
12 |
AU25-8 |
61.5 |
6.8 |
8.4 |
12 |
AU25-10 |
61.5 |
6.8 |
10.5 |
12 |
AU35-10 |
77 |
8 |
10.5 |
14 |
AU50-10 |
77 |
9.8 |
10.5 |
16 |
AU50-12 |
77 |
9.8 |
13 |
16 |
AU70-10 |
84.5 |
11.2 |
10.5 |
18 |
AU95-12 |
88 |
13.2 |
13 |
22 |
Type |
Dimensions(mm) |
Die Code |
||
L |
d |
Φ |
||
AU120-12 |
95 |
14.7 |
13 |
22 |
AU150-12 |
105 |
16.3 |
13 |
25 |
AU150-16 |
105 |
16.3 |
17 |
25 |
AU185-12 |
106 |
18.3 |
13 |
28 |
|
AU185-
16 |
106 |
18.3 |
17 |
28 |
AU240-12 |
122 |
21 |
13 |
32 |
AU240-16 |
122 |
21 |
17 |
32 |
AU300-16 |
123 |
23.3 |
17 |
34 |
Wenzhou Kinway Technology Co.,LTD,a high-tech enterprise specialized in power line fitting for more than 10 years,is located in Chinese famous "Captial Of Electric"--LIUSHI,where is about 40minutes far from Wenzhou airport and 20minutes far from railwaystation.The factory specialized in power fitting,example for Connector( Parallel groove connectors AL/AL,AL/CU,CU/CU, Aluminium PG connectors extrud type,PG Clamps,Bimetallic PG clamp),Lugs(Bimetallic lugs,,bimetal compression cable lugs,Aluminium lugs),we also can make special offer according to customer’s drawing.
The factory owns a land area of 2000m2, more than 150 workers,also have a professional team for technic,sales and after-sale service.We export our goods to Canada,Vintan,Malaysia,Dubai ect,more than 20countries and area.Welcome friends from all over the world to visit and cooperate with us.Do us a favor,we'll back you a world!
