Home > Electrical & Electronics > Connector & Terminals > Wire to Wire Connector > DOUBLE BOLTS CLAMP

DOUBLE BOLTS CLAMP

Name: DOUBLE BOLTS CLAMP
Brand: kinway
SKU: 115990967
Availability: InStock

US$ 1.3 - 1.5 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

kinway

Model Number:

CAPG-C1(AL16-70 CU6-50)

Contact Supplier Request Quote Chat Now

Wenzhou Kinway Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name kinway

Model Number CAPG-C1(AL16-70 CU6-50)

Type DIN

Application Automotive

Gender Other

Specifications

bimetallic CAPG choosing the high strength, corrosion resistant aluminium alloy and forging bimetal

Product information:

For connection of Al conductors according DIN 48201&ACSR conductors according to DIN 48204 with copper tap-off conductors according to DIN 48201.

Model	Conductor Cross-section(mm2)	Bolts
Capg-A1	CU 6-50 AL 16-70	1XM8X40
Capg-A2	CU 10-95 AL-25-150	1XM8X45
Capg-B1	CU 6-50 AL 16-70	2XM8X45
Capg-B2	CU 10-95 AL 25-150	2XM8X50
Capg-B3	CU 25-185 AL 35-200	2XM10X60
Capg-C1	CU 6-50 AL 16-70	3XM8X45
Capg-C2	CU 10-95 AL 25-150	3XM8X50
Capg-C3	CU 25-185 AL 35-240	3XM10X60
Capg-C4	CU 35-240 AL 35-300	3XM10X70

Material:

Body: high strength, corrosion-resistant, aluminium 99.5 with hot forged bimetallic sheet .

Bolts: steel 8.8, DIN 933, Dacromet .

Nut:Steel 8,Din 934 Dacromet . pressed into lower part Conical Washers:Steel,Din6796 corrosion-protected.

Pressure Pad: Aluminium alloy, with spring washers. Dacromet

Recommended Torque moments: M8:23Nm M10:46Nm

Introduction of our company

Wenzhou Kinway Technology Co.,LTD,a high-tech enterprise specialized in power line fitting for more than 10 years,is located in Chinese famous "Captial Of Electric"--LIUSHI,where is about 40minutes far from Wenzhou airport and 20minutes far from railwaystation.The factory specialized in power fitting,example for Connector( Parallel groove connectors AL/AL,AL/CU,CU/CU, Aluminium PG connectors extrud type,PG Clamps,Bimetallic PG clamp),Lugs(Bimetallic lugs,,bimetal compression cable lugs,Aluminium lugs),we also can make special offer according to customer’s drawing.

The factory owns a land area of 2000m2, more than 150 workers,also have a professional team for technic,sales and after-sale service.We export our goods to Canada,Vintan,Malaysia,Dubai ect,more than 20countries and area.Welcome friends from all over the world to visit and cooperate with us.Do us a favor,we'll back you a world!

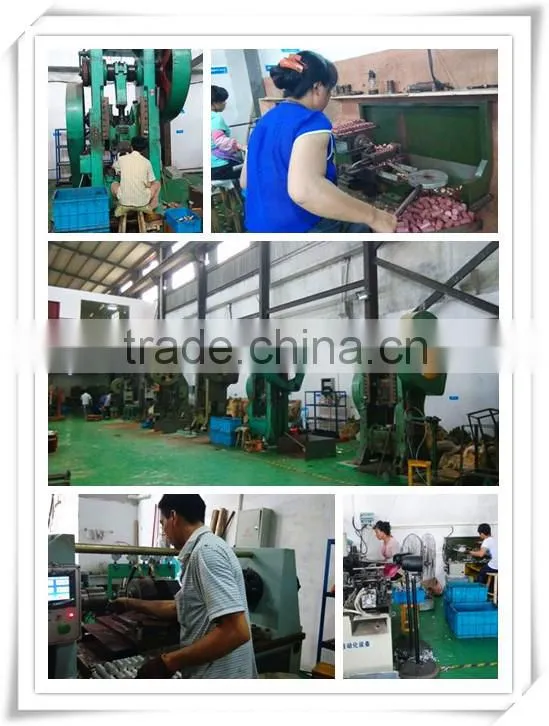

Equipment

For more information, please contact us!
