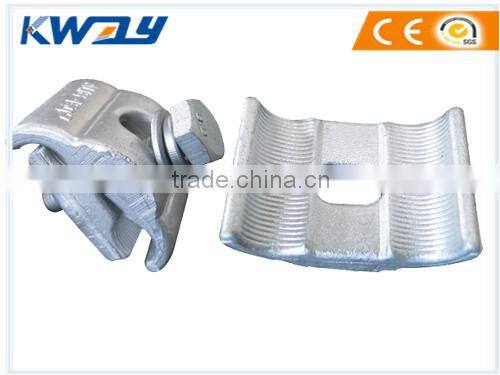

Help CenterAluminium Copper Biametallic Wire Clamp, CAPG Type,Aluminium Copper and Bimetallic Clamp Type:CAPG-B2(AL25-150 CU10-95)
Related Products
-
JBTL ClampUS$ 0.8 - 1MOQ: 2 Pieces -
Al & Cu PG ClampUS$ 1.3 - 1.5MOQ: 10 Pieces
-
Biametallic Cable Wire Clamp,CA PG CLAMP CAPG-C3(scope From 25-800mm)US$ 2.5 - 3MOQ: 10 Pieces
-
China Aluminum Parallel Groove Clamp(3bolts,APG-B5)25MMUS$ 0.68 - 0.8MOQ: 10 Pieces
-
Aluminium Cable TieUS$ 0.9 - 1MOQ: 10 Pieces
Specifications
bimetallic CAPG choosing the high strength, corrosion resistant aluminium alloy and forging bimetal
| Application |
| For bare overhead aluminium or copper tap conductors. |
| Description |
|
Parallel groove clamps are mainly used for transmitting current between the interconnected conductors, for example for connection loops on terminal poles or tapping off bus-bars to equipment on substations. From this function it is therefore obvious that the electrical conducting properties and the corrosion resistance are the main factors for consideration in the design. Besides this main area of application parallel groove clamps are also used for safety loops and therefore they must provide an adequate mechanical holding strength. If conductors made of different materials are to be connected this can be done by using bimetallic tubes. This range of connectors is designed to connect two paralell conductors in order to do a derivation of a secondary conductor, or to close a loop of one conductor to fit it on an insulator. These connectors are composed of two parts : Upper body and lower body, they have two paralell grooves to receive the conductor(s).One, two or three bolts are passing throught the bodies between the grooves. In aluminium clamps, the two bodies are made out of high strength aluminium alloy. In copper clamps, the bodies are made out of high strength electrolitic copper. In bimetallic clamps, the two bodies are made out of high strength aluminium alloy, and to tight a copper conductor, one groove is made with allumiunm alloy and welded by hot forged bimetallic sheet . The bolts are made out of hard steel (8.8) and Dacromatized. To warranty a reliable tightening, a pressure pad and a spring washer are inserted under the bolt head.
Introduction of our company Wenzhou Kinway Technology CO.,LTD, a high -tech specialized in power line fitting foe more than 10 years,is located in Chinese famous "Capital of Electric"-LIUSHI,where is 40 minutes far from Wenzhou airport and 20 minutes far from railway station.The factory specialized in power fitting,example for Connector(Parallel groove connectors AL/AL,AL/CU,CU/CU,Aluminium PG connectors extrud type,PG Clamps,Bimetallic PG clamp),Lugs(Bimetallic lugs,bimetal compression cable lugs,Aluminium lugs), we also can make special offer according to customer's drawing. The factory owns a land area of 2000m2,more than 150 workers,also have a professional team for technic sales,and after-sale servive.We export our goods to Canada,Vintan,Malaysia,Dubai ect. more than20 countries and area.Welcome friends from all over the world to visit and cooperate with us.Do us a favor,we'll back you a world! Website: Equipment
For more information,please contact us! Our website:
|
