20kva ~300kva Diesel Generating Set Details
Our Features:
Weifang Huaquan Power is the professional manufacturer of generators. We specialized in producing diesel generator, Power generators, and engine generators for many years.

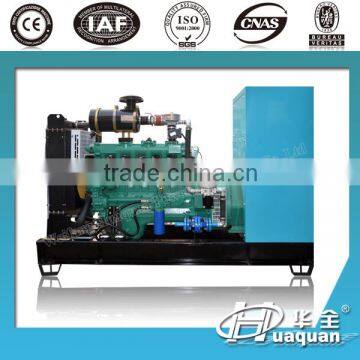

50kva Generator Picture show
Our Generator Standard configurations:
1. Standard High-level quality engine Ricardo series.
2. Standard High-level quality alternator, Stanford, Brushless, 100% copper wires. Protection Grade: IP23, Insulation Class H.
3. No-maintenance start battery.
4. After acidification under frame, High-level strong.
5. Electric start, use key start.
6. Electric throttle.
7. Standard control panel Spray-print or LCD show panel.
8. Daily fuel tank.
9. High-level shock absorber system.
10. Ripple flexes exhaust pipe, exhaust siphons, flange, Muffler.
11. 40°C radiator as standard.
12. Exhaust silencer
13. Charger motor for battery.
14. Standard export box.
15. Manuals.
16. Tools box.
Generator Details
| Standy Output(KW/KVA) | Prime Out(KW/KVA) | P.F | Phase | Wires | Size(mm) | Weight (KG) |
| 33/41.25 | 50/62.5 | 0.8 | 3 | 4 | 1800*720*1300 | 850 |
Diesel Engine Data
| Engine Model | R4105ZD |
| Cylinder No. | 4 |
| Intake Method | Turbocharged Aspiration |
| Engine Type | Inline,Direct injection,Four-stroke,water cooling |
| Displacement(L) | 4.33 |
| Bore*Stroke(mm) | 105*125 |
| Engine Max outout(kw/kva) | 56/70 |
| Fuel consumption(g/kw.h) | ≤228 |
| Start Method | DC 12V |
| Manufacture | Ricardo/Weifang |
Alternator Data
| Alternator Model | STC-50/standard |
| Alterantor Capacity | 62kva |
| Voltage(V) | 110/220 230/400 |
| Speed | 1500/1800 |
| Excitation Method | Brush/Brushless |
| Power Factor | 0.8 |
| Frequency (HZ) | 50/60 |
Generator Set Data
Voltage Regulation:≥±5% Voltage Regulation, Stead State:≤±1% Sudden Voltage Warp (100% Sudden Reduce):≤+25% Sudden Voltage Warp (sudden Increase):≤-20% Voltage Stable Time (100% sudden Reduce):≤6s Voltage Stable Time (Sudden Increase):≤6s Frequency Reduce:≤5% adjustable:≤1.5% Frequency Regulation, Stead State:≤0.8% Frequency waving:≤+12% Sudden Frequency Warp (100% Sudden Reduce):≤0.8 % Sudden Frequency Warp (Sudden Increase):≤-10% Frequency Recovery Time (100% sudden Reduce):≤5s Frequency Recovery Time (Sudden Increase):≤5s
|
Our Products Features
The Engine Features
Ricardo diesel generators, adopting diesel engines as power, which are manufactured by the company introducing British Ricardo technology, bear the features of compact structure, convenient operation, stable operation, low fuel consumption, low emission and low noise. Each performance indicator has reached National standard JB/T8981-1999, also meeting international standard IEC34-1. The product is widely used in numerous industries, including highways, telecommunications, hospitals, securities companies, high-rise buildings, public security, transportation systems, television station and etc.
Features of Ricardo diesel generator sets:
1. Ricardo diesel generators have good power performance, economic and sound reliability, emission reaching Euro II standard
2. Ricardo diesel generators adopt vertical four-cylinder, six-cylinder, water-cooled, four stroke, direct injection high-speed diesel engine.
3. Ricardo diesel generators have passed IS09001 quality system certification.
Ricardo Series Generator Details
OPTIONAL
1.Mute case
2.ATS (automatic transfer switch)
3.Mobile Trailer
Production Flow
Sales Promises
Huaquan provides a full line of brand new and high quality products.Each
and every unit is strictly factory tested Warranty is according to our
standard conditions:12 months or 1000 running hour’s ,subject to the
earlier one .Service and parts are available from our factory
About Our Company
1. Offer the main Power range from 10kva~1500kva.
2. Adopt the famous engines like Weichai engines, Deutz engines, Steyr engines, Cummins engines, Perkins engines, Isuzu engines, Ricardo engines, Changchai engines, Yuchai engines, Jichai engines etc. These are widely used all over the word.
3. We only adopt standard high-level quality alternator, to produce the high-level diesel generators.
4. We offer Open-generators, Silent-Generators, Automatic-Generators and Trailer-Generators.
5. All spare parts serviced directly by our company.
6. We are confirmed as the OEM factory by many those engine factories and alternator factories.
Our experience
We specialized in producing diesel generator for many years. We have exported to many countries and widely used in domestic.
- Exported countries: Nigeria, Indonesia, Malaysia, Philippine, North Korea, Ghana, Gabon, South Africa, Guinea, Russia, Iraq, Iran, Colombia, Burkina Faso, Liberia, Zambia, etc.
- Domestic: Send to most of the cities in china, and get high praise from my clients.
