Specifications
pressure switch automatic pump control manualSuitable for Air - Conditioning
Refrigeration Equipment
stable performance
pressure switch automatic pump control manual
Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:
1, Switching type : SPST NC or SPST NO (Selectable),
Switch frequency & Response time: 60 Cycle /min, ≤100ms.
2, Pressure fitting: 1/4"-18NPT Thread ( Male ).
3, Electrical connection: UL 1015 18AWG, Lead wire .
4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC;
Resistance load : 0.1A to 6A, Inductive load : 0.1A to 3A.
5, Fluid media: R22, R134a, R407c, R410a, etc.
6, Work Life: ≥100,000 Cycle.
7, Protection class : IP65.
8, Ambient temperature: -30°C~55°C, Medium temperature: -40°C~80°C.
9, Model: (Read table 1).
10,Working pressure: 10 to +800PSI (Selectable, Read table 2).
After-sales service:
We promise to carry out the following after-sales service:
Warranty: The warranty period is 12 months starting from the shipping date.
The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.
Certificate:

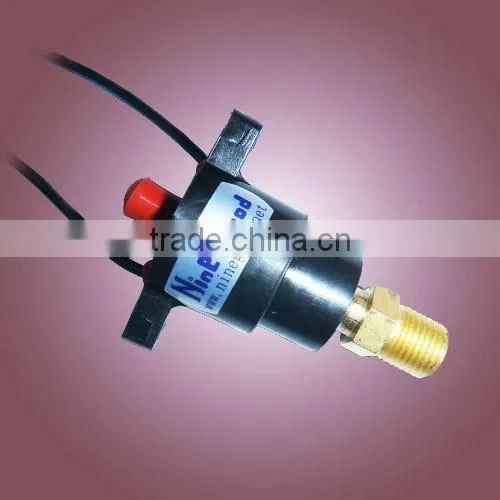

Production Photo:

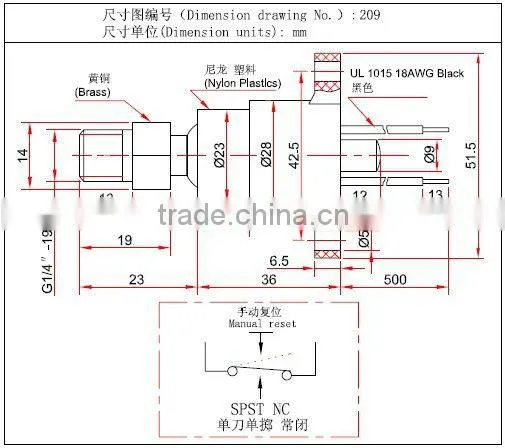

Dimension Drawing:
