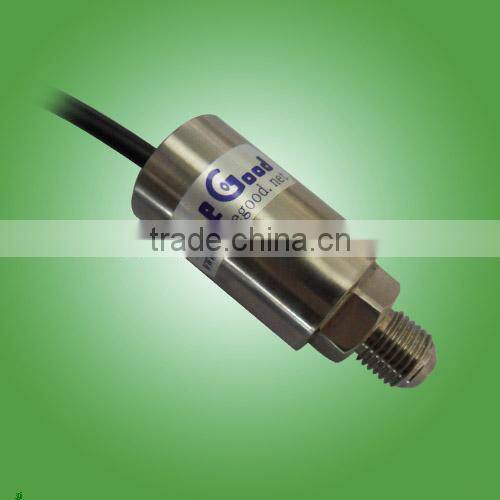

steam high temperature pressure control switch (905)

Specifications

Suitable for water & gas & air & oil & steam,etc.
Pressure range: 0 to 800PSI

steam high temperature pressure control switch

Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:



1, Switching type : SPST NC or SPST NO or SPDT NC+NO (Selectable),

    Switch frequency & Response time: 60 Cycle /min, ≤100ms.

2, Pressure fitting: M12X1.25-6g,male.

3, Electrical connection: 227IEC 52 2X0.5mm².

4, Voltage: 5-110VDC, 5-250VAC;

    Resistance load : 0.1A to 6A,  Inductive load : 0.1A to 3A.

5, Fluid media: water &  gas & air & oil & steam,etc .

6, Work Life: ≥100,000 Cycle.

7, Protection class : IP00 or IP54 or IP65(Selectable).

8, Ambient temperature: -40°C~125°C(Selectable),

    Medium temperature: -40°C~180°C(Selectable). .

9, Model: a variety of user-selectable.

10,Working pressure: 0 to 800PSI (Selectable).





After-sales service:

              We promise to carry out the following after-sales service:

       Warranty: The warranty period is 12 months starting from the shipping date.

 The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.

Certificate:



Production Photo:

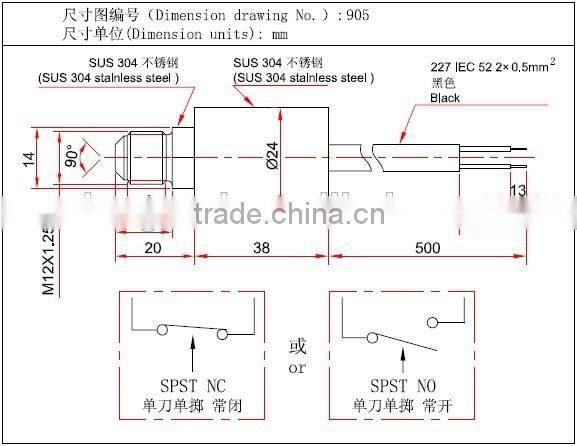

Dimension Drawing:
