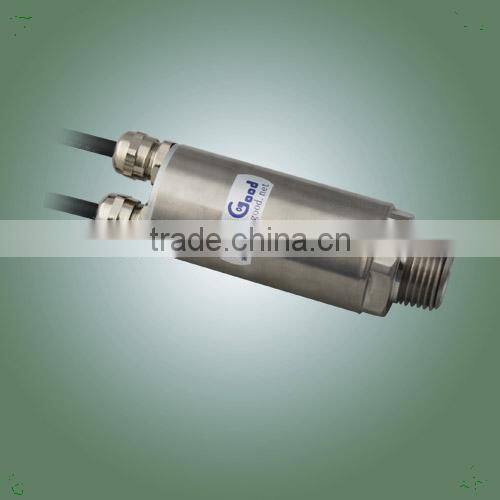

R1/2 thread Ex-proof air gas pressure switch 604

Ex-proof air gas pressure switch

Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:

1, Switching type : DPDT 2NC+2NO, Switch frequency & Response time: 60 Cycle /min, ≤100ms.

2, Pressure fitting: R1/2"-14BSPT( Male ).

3, Electrical connection: UL 2517 3X22AWG,

    Lead wire length: 1000mm & 2000mm & 3000mm & 4000mm & 5000mm( Selectable ).

4, Voltage & Resistance load : DC24V 3A; 50Hz AC250V 3(1.5)A.

5, Fluid media: water, steam, hydraulic oil, compressed air etc .

6, Work Life: ≥100,000 Cycle.

7, Protection class : IP65.

8, Ambient temperature: -40°C~125°C(Selectable),

    Medium temperature: -40°C~180°C(Selectable). .

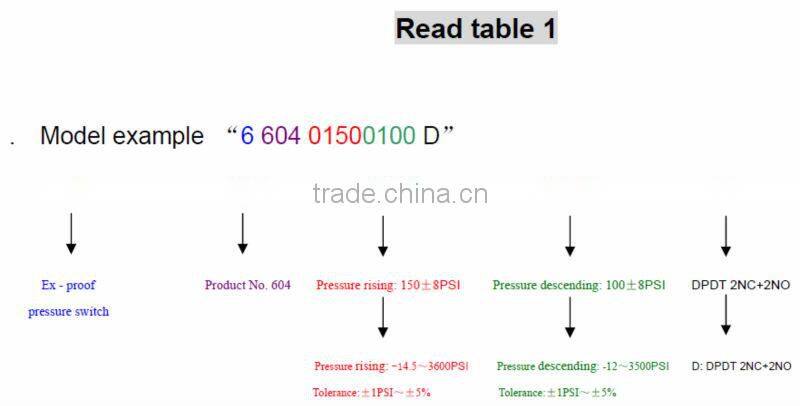

9, Model: ( Selectable,   Read table 1).

10,Working pressure: -14.5 to 3600PSI (Selectable,   Read table 2).

11, Explosion-proof grade: Exd Ⅱ CT6 , Explosion-proof certificate Certificate No.: CNEx11.2271


After-sales service:

          We promise to carry out the following after-sales service:

     Warranty: The warranty period is 12 months starting from the shipping date.

 The rate of Production Quality Problem is lower to 100PPM, replace the bad for free.

Certificate:

Production Photo:

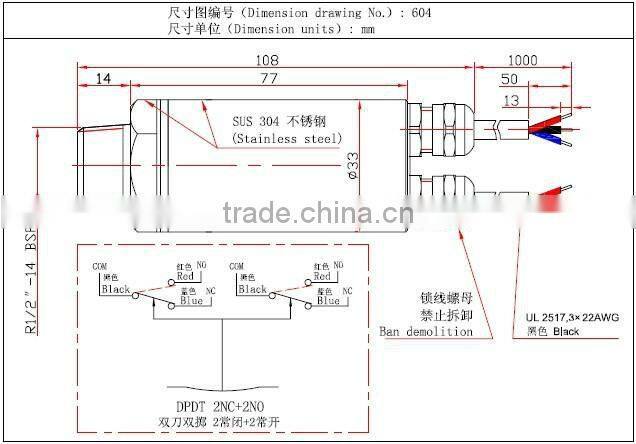

Dimension Drawing:
