pneumatic adjusting control pressure switch

Specifications

Suitable for Air pressure Water Oil Corrosive fluids.
Pressure range: Vacuum -14.5 to 200PSI.
easy installation
IP65

pneumatic adjusting control pressure switch

Advantages:
fessional skill
2.Specific products
3.Tailored cost-effective production for our customers
Technical Parameter:



1, Switching type : SPDT NC+NO (Selectable), Switch frequency & Response time: 60 Cycle /min, ≤100ms.

2, Pressure fitting: 1/8"-27NPT,Thread (Male ).

3, Electrical connection:  227 IEC 52,3X0.5mm², Lead wire.

4, Voltage: 5VDC to 110VDC, 5VAC to 250VAC;

    Resistance load : 0.1A to 6A,  Inductive load : 0.1A to 3A.

5, Fluid media: Air pressure & Water pressure & Vacuum & Oil & Corrosive fluids,etc.

6, Work Life: ≥100,000 Cycle.

7, Protection class : IP65.

8, Ambient temperature: -20°C~55°C, Medium temperature: -40°C~80°C.

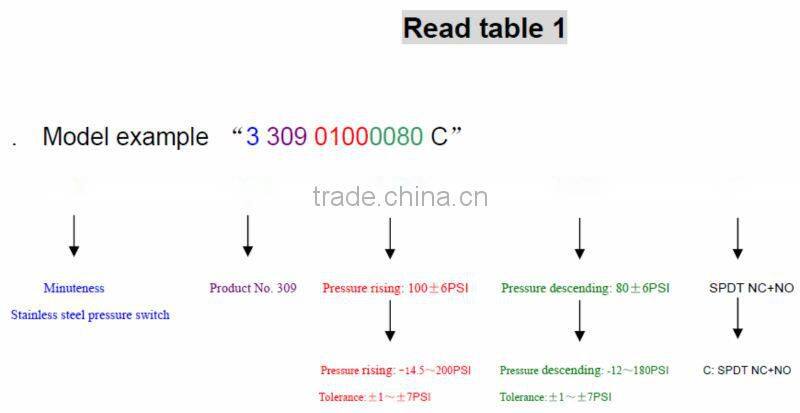

9, Model: (Read table 1).

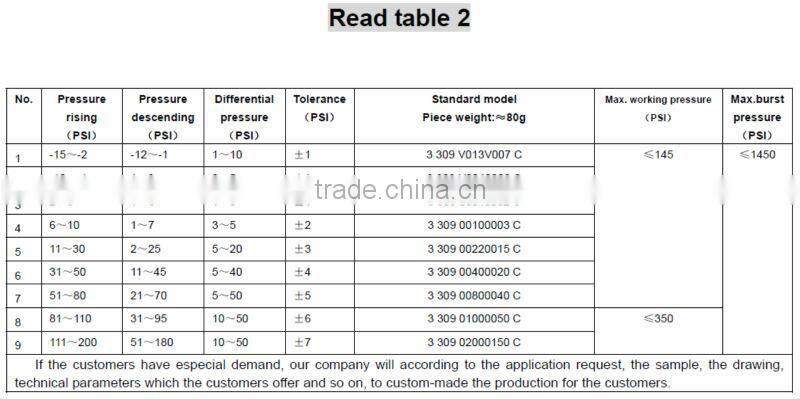

10,Working pressure: Vacuum -14.5PSI to +200PSI (Selectable,   Read table 2).

  After-sales service:
              We promise to carry out the following after-sales service:
       Warranty: The warranty period is 12 months starting from the shipping date.
 The rate of Production Quality Problem is lower to 100PPM, replace the bad for free



Certificate:

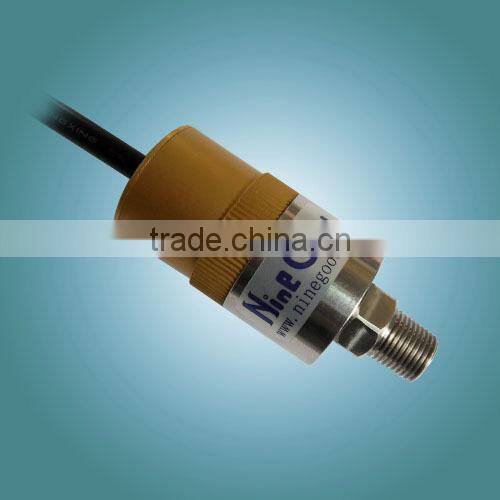

Production Photo:

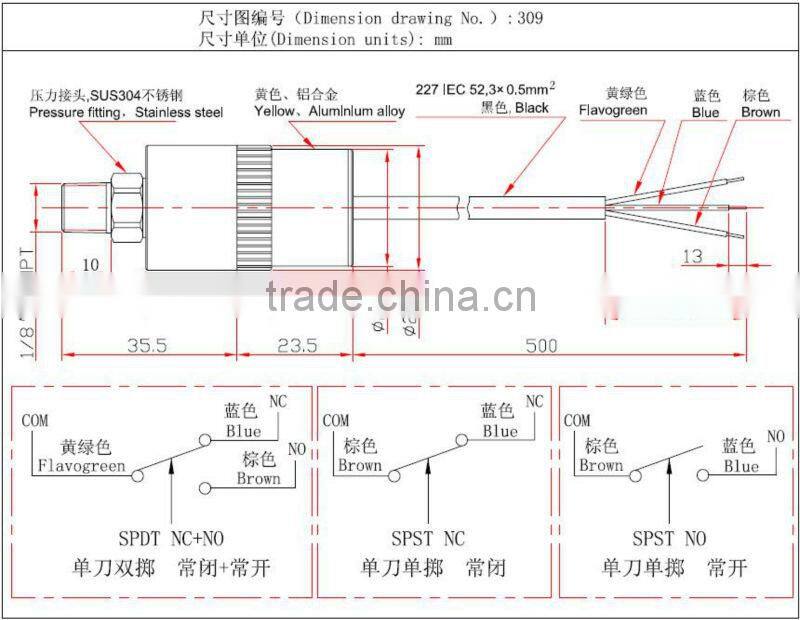

Dimension Drawing:
