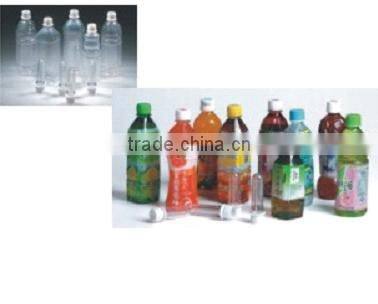

Help CenterDrinking Water Drinks OPP Hot Glue Labeling Machine
Related Products
-
Pepsi Cola Drinks OPP Hot Glue Labeling MachineNegotiableMOQ: 1 Cubic Meter -
Cola Drinks OPP Hot Glue Labeling MachineNegotiableMOQ: 1 Cubic Meter
-
Lemom Drinks OPP Hot Glue Labeling MachineNegotiableMOQ: 1 Cubic Meter
-
CSD Drinks OPP Hot Glue Labeling MachineNegotiableMOQ: 1 Cubic Meter
-
Gassed Water OPP Hot Glue Labeling MachineNegotiableMOQ: 1 Cubic Meter
Specifications
1) SUS 304 CE certificate2) Capacity: 2000-40000BPH.
3) Volume :200-2500ml
4) PET bottle , Glass Bottle , Can Bottle
Hot glue labeling machine -HY Filling
1) CE certificate
2) ISO9000: 2000 Certificate
3) Volume: 200-5L
4) PET bottle, glass bottle
Hot Melting Labeling Machine Main features
l Adopting full round labeling manner, the label can be cut, adsorbed, glued and labeled automatically.
l It is use PLC step-less speed control system, which can adjust the speed as the bottle in-fed to make system synchronous.
l Bottle in-fed by the star wheel to ensure high speed working stability.
l The drive system is controlled by main motor controller and frequency conversion.
l The label is tracked and cut by the servo technology, which working with special designed high speed vacuum drum, the labeling performance can be precise and stable.
l Electric type labeling emendation system, which can ensure the cut precision to be ±0.5mm.
l It is equipped with safety system. If there is any bottle block, the drive system will stop automatic.
l The labeling area can be adjusted up and down as need.
l Glue temperature no reach to the set parameter, the whole system don’t work.
l No label, no working.
l No labeling on the bottle, the whole system will alarm and stop automatic.
l Label leaking and no inspection space will make the machine alarm automatic.
l Label not enough will make machine alarm automatic.
l Malfunction will alarm.
l Central lubricating system is easy and clean for machine.
l Easy installation and connection with other machine in filling line.
Hot Melting Labeling Machine Technical parameters
Size | 3100mm*2600mm*2500mm (L*W*H) |
Weight | About 5500KG |
Applicable bottle: | Vertical column bottle |
Bottle material | PET, glass, metal |
Bottle diameter | φ28-φ128(mm) |
Bottle height | 25-360(mm) |
Label height | 15-150(mm) |
Label material | OPP, BOPP, complex film, paper(roll-fed) |
Inner diameter of roll | 152mm |
Speed | 300BPM |
Power | 9KW, AC 3φ 380V/60HZ |
Installation and commissioning
After the equipments arrived buyer's workshop, the buyer should take it's place for each equipment according to the supplied layout; the seller will send the experienced technician to guide the installation and debugging and trail production, and fulfil the designed capability within the designed time. The installation, debugging and training is about 30-35 days.
Training
The seller will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.
After-sales service
1) After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price. Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipments and maintenance, to find the common malfunctions and fault clearing in time; if the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone; if relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.
2) After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
