unalloyed electrodes welding rods e6013

Specifications

unalloyed electrodes welding rods e6013
Low spatter and smoke
good arc stability,real rutile coatings
good ignition,bestprice

 unalloyed electrodes welding rods e6013



AWS Specification:	E6013
JIS Specification:	D4313
Other Specification:	ISO 2560 A E4313



APPLICATIONS/Use in:

Welding of all types of mild (low carbon) steel

Steel structures –trusses, portal frames, tube transmission

Sheet and plate metal structures and containers –plating, storage tanks, hoppers, silos, bins

Fillet jointing of pipes for water, gas and fluid transmission

Site jointing of H/sheet/pipe piles

Light steel frames = grills, ornamental and gate works, furniture

General workshop welding and maintenance

Compatible and suitable for welding steels to: ASTM (eg A36), BS EN 10025 (eg S75, S275 JR), API Std. 5L (eg grade A, B, A25, X42, X46) BS 4360 (eg grade 40, 43) JIS G3106 (eg SS41, SM41)







Chemical Composition of Welding Wire(%):







	C	Mn	Si	S	P	Ni	Cr	Mo	V
gurantee value	≤0.12	0.3-0.6	≤0. 30	≤0.035	≤0.040	≤0.0	≤	≤	≤
general result











Mechanical Properties of Deposited Mental:







test item	Rm (MPa)	Rel (MPa)	A (%)	Akv(J)
				0°C
gurantee value	≥420	≥330	≥17	-
general result	460~540	340	18-26	47







  X-ray detection: Ⅱ







 Reference Current (AC,DC) :



Welding positions:





 Others Main Specifications:



E6010: All position electrode only suitable with DC power sources. It delivers deep penetration and has the ability to dig through rust, oil, paint and dirt. This electrode features an extremely tight arc, which can make it difficult for inexperienced welders. Excellent for penetration on joints with a tight fit-up.



E6011: All position electrode for use with AC and DC power sources. It produces a deep, penetrating arc that cuts through corroded and unclean metals – ideal for maintenance and repair. Excellent for penetration on joints with a tight fit-up.



E6013: All position electrode with a soft arc and minimal spatter, moderate penetration and easily removable slag. Suitable with AC or DC power sources, this electrode is better served on newer and clean materials, thinner materials and wide root openings.



E7018: All position electrode with a thick flux and high iron powder content, which makes it one of the easiest electrodes to use. These electrodes produce a smooth, quiet arc with minimal spatter and medium arc penetration. Produces strong welds with high impact properties (even in cold weather) and can be used on carbon steel, high-carbon, low-alloy and high-strength steel base metals. Suitable with AC and DC power sources.



E7024: For flat or horizontal welding with an AC or DC power source, this electrode contains a high iron powder content that helps increase deposition rates. Performs well on steel plate that is at least ¼-in. thick and can be used on metals that measure over ½ in.



rod diameter (mm)	φ2.5	φ3.2	φ4.0	φ5.0
welding current (A)	70~100	100~150	160~210	200~250

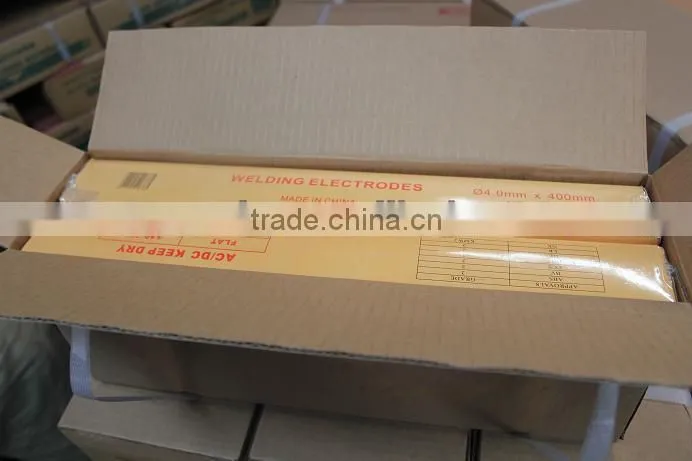

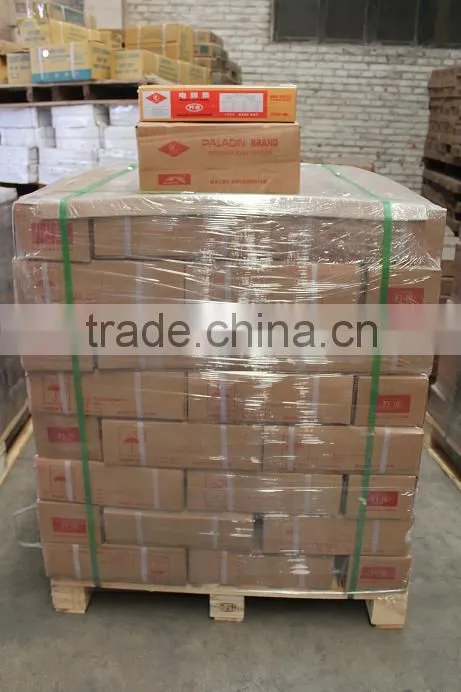

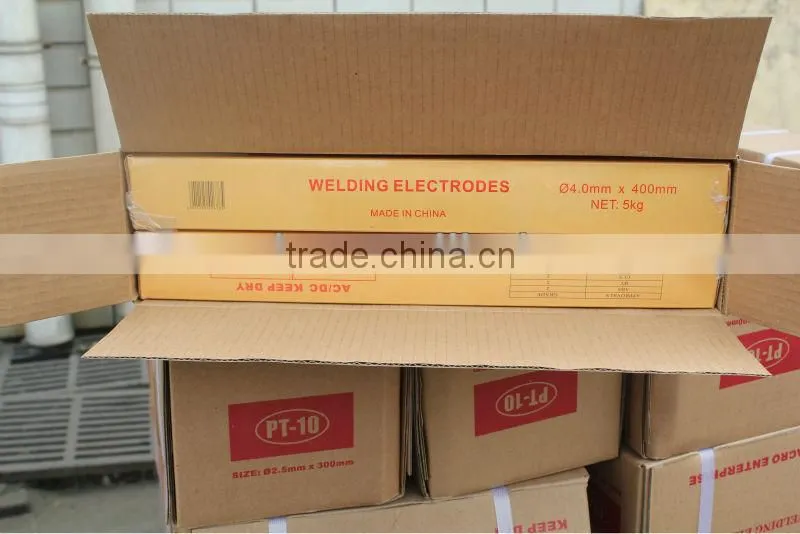

General Packing Styles:







 For new customers,we surely will offer the best cheapest prices to promote our first cooperation in welding consumables



Please contact us for competitive price ,thank you!
