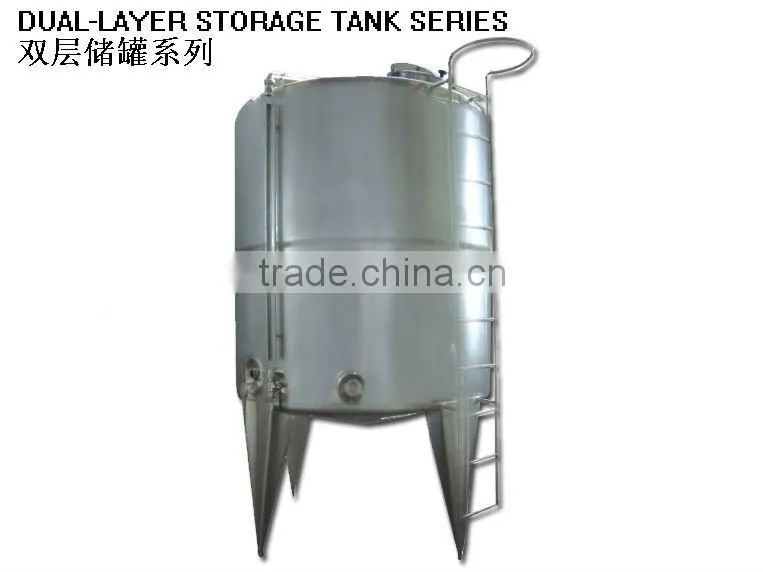

Stainless Steel Double Layer Storage Silo
- 30 Set / Sets per Month
- Shanghai port
- T/T
- Vertical double jacketed stainless steel mixing agitator tank
- stainless steel vertical juice storage tank
- high quality milk cold storage tank
- Milk storage tank, raw milk storage tank, milk agitator tank
- raw milk collection tank
- Factory Genyond Best quality dairy farming machine milk cooler / milk cooling cold storage tanks /milk chiller
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | HY-FILLING |
Model Number: | HYFL20120005A | Processing Types: | Juice | Voltage: | 380v |
Certification: | CE |
Product Description

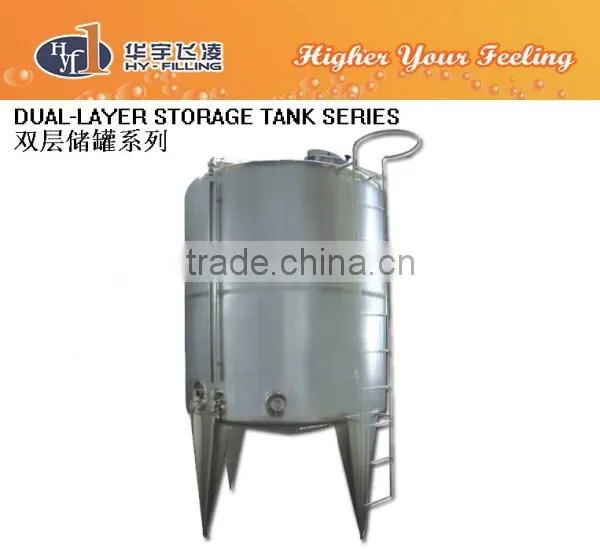

Stainless Steel Double Layer Storage Silo
Applicable range
Used as liquid storage tank, liquid composing tank, temporary storage tank and water storage tank etc.
Ideal in fields such as foods, dairy products, fruit juice beverages phamacy, chemical industry and bilological engineering etc.
Structure characteristics
Made of single-layer stainless steel structure.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.
Transition area of interior wall on tank adopts arc for transition to ensure no deed comer of sanitation.
Configuration of tank
Quick open manhole.
Various models of CIP cleaning machines.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Disountable materials input pipe assembly.
Thermometer(According to customer requirements).
Ladder(According to customer requirements).
Liquid level meter and level controller(According to customer requirements).
Eddy-proof board.
Effective volume | Dimension of tank | Total height | Diameter of inlet& outlet | Heat preservation layer | Diameter of inlet& outlet | Blending speed |
(L) | mm*mm | (mm) | (mm) | (mm) | (kw) | (r/min) |
500 | 840*1000 | 2750 | 60 | 38 | 0.55 | Common rotation speed 35, 43, 60. stepless speed reducer or dual-speed reducer or dual-speed reducer are also available |
6
|
Installation and commissioning
After the equipments arrived buyer's workshop, the buyer should take it's place for each equipment according to the supplied layout; the seller will send the experienced technician to guide the installation and debugging and trail production, and fulfil the designed capability within the designed time.
Training
The seller will supply technical training to the buyer. The training is includes: equipment structure and maintenance, control and operation. After training, the technicians of the buyer will grasp relevant operation and maintenance skills, and could adjust the technologies more skilled, and can deal with all kinds of malfunction in time.
After-sales service
1) After qualified of the equipment, the seller will supply one year guarantee, control system one year guarantee, free charge for wearing parts, and other spare parts with cost price. Within guarantee period, the technicians who accepted training should strictly obey the requirements asked by the seller to operate the equipments and maintenance, to find the common malfunctions and fault clearing in time; if the technicians of the buyer couldn't solve the problems themselves, the after-sales department will supply long range guide service by phone; if relevant measurements couldn't solve the problems, the seller will send the technicians to the buyer factory, clear the fault or relevant technical problems on site, the charges will reference to the installation and debugging charges.
2) After guaranteed, the seller will supply widely favorable technical support, after-sales service for the lifetime: favorable price for the wearing parts and other spare parts.
Company Instruction:
Located in Zhangjiagang City of Suzhou, the Yangtze River Delta, our company has 50million RMB fixed assets, covers an area of 30,000 square meters, with a more than 30 professionals team to design and develop, is a key professional enterprise, which integrates development, research, design, manufacture, technology service and marketing, to manufacture complete sets of wine, beverage and sticky filling equipments.
We are adhering to the principle of "market-oriented, quality as the main line, service as the guarantee and repute as the basis". HY-Filling follows ISO9001:2000 international quality management system, it has established and improved the quality assurance system to ensure the quality and performance of the company's products. The Development department of HY-Filling, with advanced technologies, has more than 30 full-time design and development engineers. HY-Filling's technologies mainly sources from Italy, France, Germany, Switzerland and Japan; furthermore, a set of liquid filling production line with advanced technology and high starting-point has been developed combined with China's basic conditions, its high automation level achieved the one in late nineties. Department of After-sale Service of HY-Filling adheres to service goal of "Customers' needs are urgent, customers' requirements are important, customers' satisfaction is the aim", provides the services of equipment installation guidance, products testing, maintenance and spare-parts supplying, consultation, complaints, regular visit every 24 hours.
HY-Filling has a network of customers for the complete set of beverage bottling lines more than 500 which spreads 30 more domestic provinces, municipalities, autonomous regions and the United States, Britain, Japan, the Middle East, Southeast Asia, Africa, Russia, CIS, South Africa etc. Besides the production and sale of equipments, HY-Filling provides various technical services to help users design equipment layout, answer users' consultation, train users' staff and provide practical operation guidance.
Main Product:
- 2000-48000 BPH Mineral Water Bottling Line;
- 2000-40000 BPH Juice Bottling Line;
- 2000-40000 BPH Carbonated Beverage Bottling Line;
- 3000-40000 BPH Beer Bottling Line;
- 6000-30000BPH Aluminium Can Filling Line;
- 120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line;
- Edible Oil Filling Line;
- Aseptic Brick Packing Machine ;
- Aseptic Pouch Packing Machine;
- PET Preform Injection Machine;
- Bottle Blow Moulding Machine;
- Water Treatment;
- UHT Plant;
- Carbonating Mixer;
- Bottle Unscrambler;
- Film Shrink-wrapping or Carton Box Packaging Machine;
- Pa-Depalletizer;
- Turn Key Project.
00
920*1000285060380.55
700 | 990*1000 | 2850 | 60 | 38 | 0.55 | 800 | 950*1220 | 3000 | 60 | 38 | 0.55 | 900 | 1010*1220 | 3000 | 60 | 38 | 0.55 | 1000 | 1060*1220 | 3150 | 60 | 51 | 0.75 | 1500 | 1160*1500 | 3350 | 60 | 51 | 0.75 | 2000 | 1340*1500 | 3410 | 60 | 51 | 1.1 | 3000 | 1410*2000 | 4000 | 60 | 51 | 1.5 | 4000 | 1620*2000 | 4250 | 60 | 51 | 1.5 | 5000 | 1810*2000 | 4300 | 60 | 51 | 2.2 | 6000 | 1980*2000 | 4550 | 60 | 51 | 2.2 | 7000 | 1930*2440 | 5000 | 60 | 51 | 2.2 | 8000 | 2060*2440 | 5000 | 60 | 51 | 3 | 9000 | 2180*2440 | 5050 | 60 | 51 | 3 | 10000 | 2300*2440 | 5050 | 60 | 51 | 3 | 12000 | 2270*3000 | 5600 | 60 | 51 | 4 | 15000 | 2530*3000 | 5700 | 60 | 51 | 4 | 20000 | 2640*3660 | 6400 | 60 | 51 | 5.5 |
