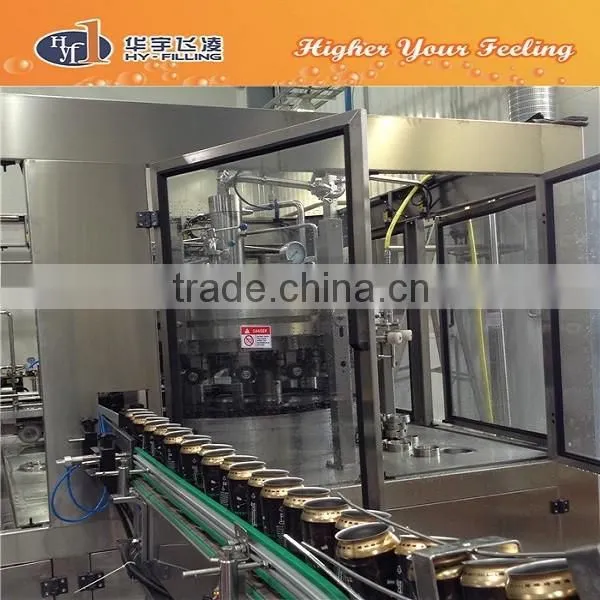

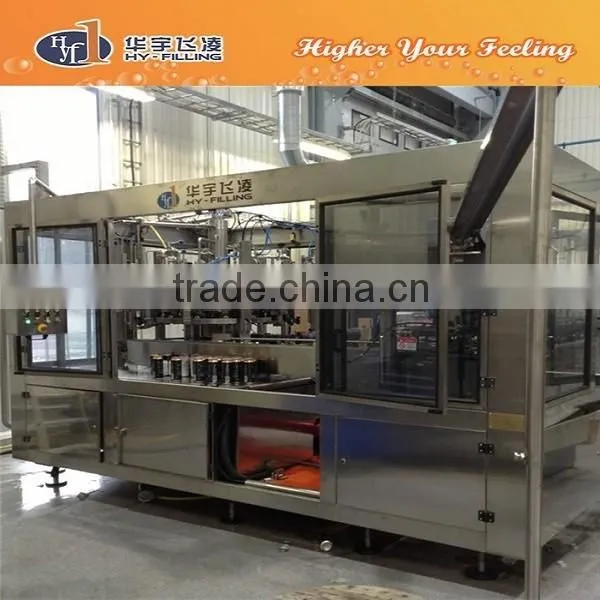

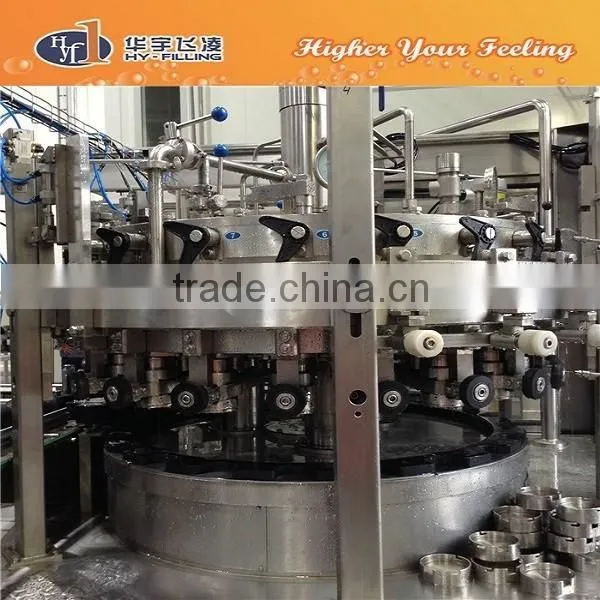

Beer Canning Machine(YGF30-6)
1.Capacity 6000-40000BPH
2.PET or Aluminum Can
3. Filling and Capping carbonated beverage
It is suitable for filling and capping carbonated beverage such as beer, CSD, etc. It is equipped the advanced device, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, less material loss. It can be equipped long-distance control system. It is the preferred equipment for the medium beer and beverage plant.
| Model | RYGF30-6 |
| Working positions | filler 30, capper 6 |
| Chain distance | 114.3mm |
| Rated capacity | 18000CPH (250ml) |
| Way of filling | Hot gravity filling |
| Suitable can | diameter 53-66mm, height 70-175mm |
| Filling pressure | 0.25-0.35Mpa |
| Filling temperature | 85-92° C |
| Filling diameter | 972mm |
| Compressed air consumption | 0.5Nm 3 h (0.4-0.5MPa) |
| Rating voltage | 380V, 50HZ |
| Installed power | 5.5KW |
| Dimension | 3200× 2200× 2800mm(L× H× W) |
| Height of conveyor | 1200mm |
| Machine weight | 4500 Kg |
2000-48000 BPH Mineral Water Bottling Line; |
2000-40000 BPH Juice Bottling Line; |
2000-40000 BPH Carbonated Beverage Bottling Line; |
3000-40000 BPH Beer Bottling Line; |
6000-30000BPH Aluminium Can Filling Line; |
120-2000 Barrels/Hour 3-Gallon & 5-Gallon Filling Line; |
Edible Oil Filling Line; |
Aseptic Brick Packing Machine; |
Aseptic Pouch Packing Machine ; |
PET Preform Injection Machine; |
Bottle Blow Moulding Machine; |
Water Treatment; |
UHT Plant; |
Carbonating Mixer; |
Bottle Unscrambler; |
Film Shrink-wrapping or Carton Box Packaging Machine; |
Pa-Depalletizer; |
Turn Key Project. |
