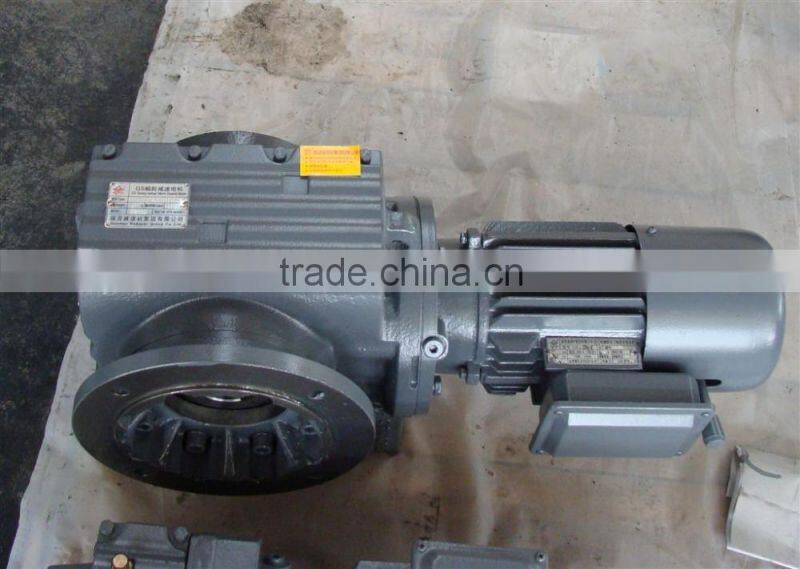

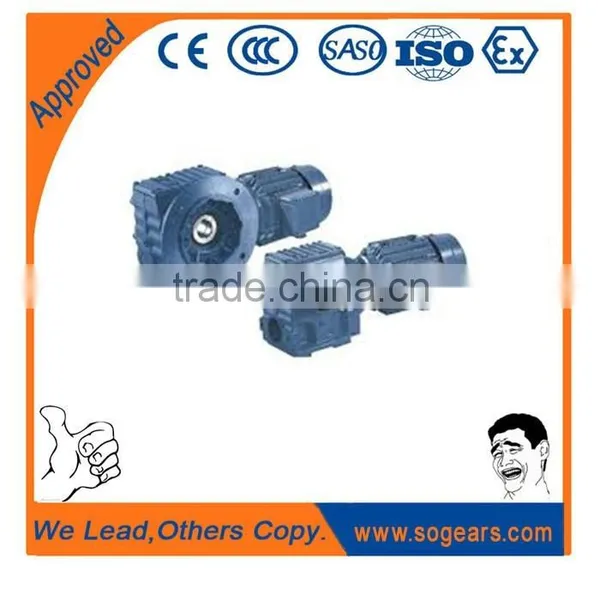

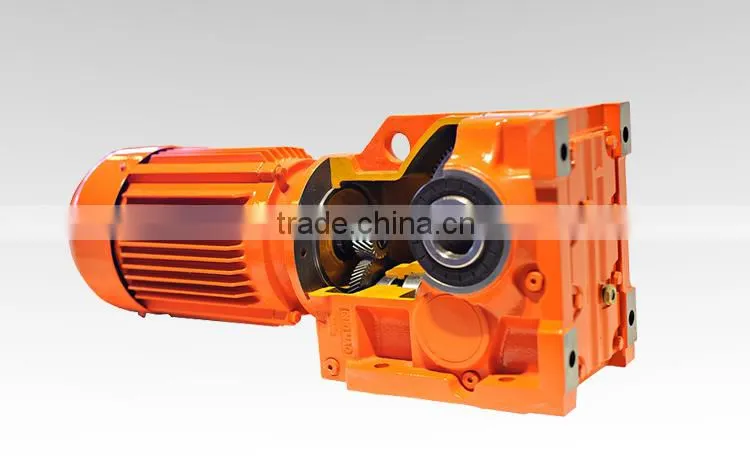

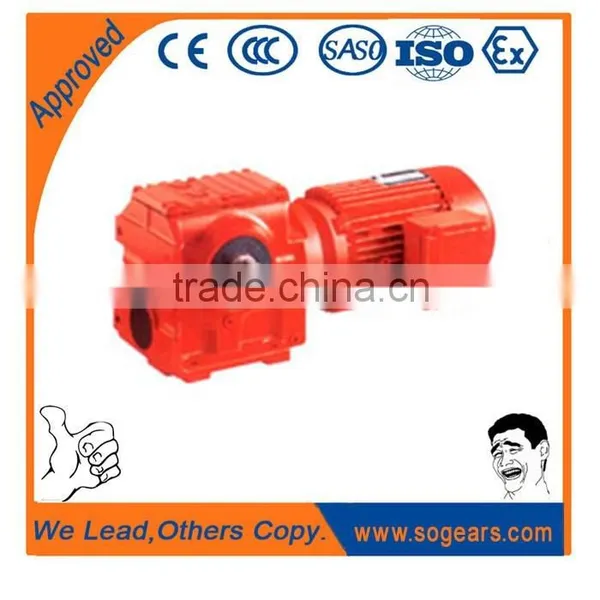

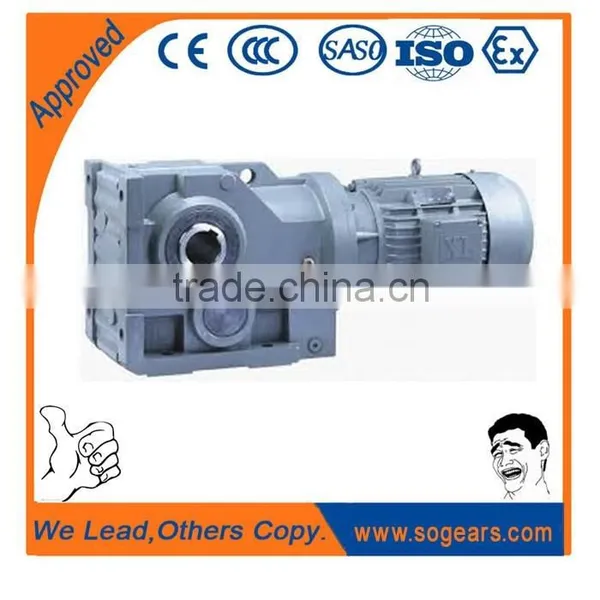

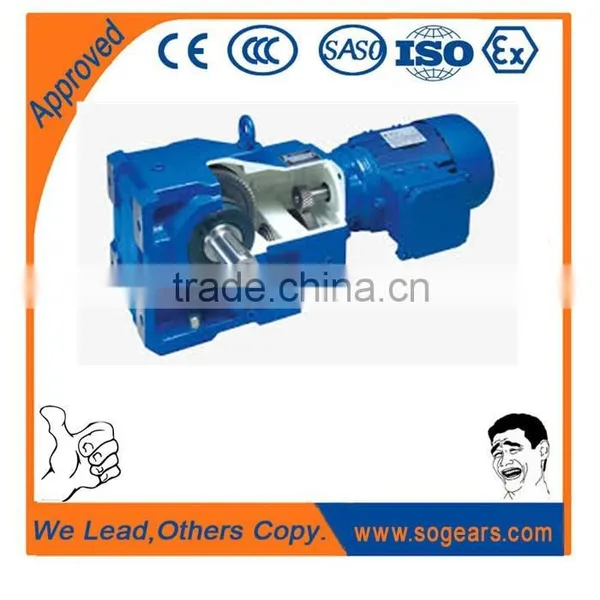

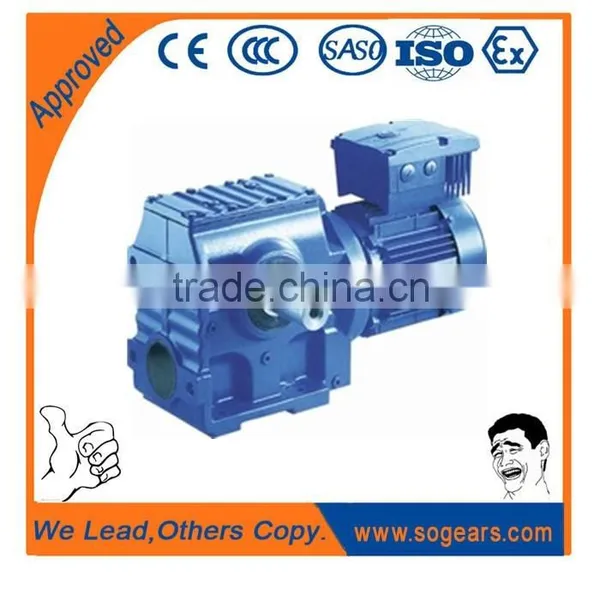

Gearbox with three phase motor reductor

@motor reductor Option

Horizontal type with foot or Vertical type without foot.

Input flange to couple the electromotor or direct coupled.

Output part: Solid shaft with key or multiple spline or flange with hollow shaft or with shrink disk or torque arm or two shafts on both outside

@motor reductor option

Asynchronous AC motor Three or Single phase, DC motor, hydraulic motor.

AC Variable frequency, brake, adjustable-speed, Explosion-Proof etc.

Protective insulation class IP54 IP65 IP44 etc. and A,E,B,F,H,C,N,R.

Energy efficiency grades High, middle and low.

@motor reductor DESIGNATION(WITH MOTOR)

Example: GK(AF)77-Y1.5-4P-52.07-M2-Ø300-270°-3

GK(AF): GK series helical bevel gear motor

(AF): None-shaft output, F-flange output with solid shaft, A-Output hollow shaft type. H-Hollow shaft output with shrink disk AT- Torque-arm mounted (S17…R77)- Combined types

77:Gearbox model number

Y1.5: 1.5kw standard electric motor.

4P: 4Pole motor, 2P-2Pole motor, 6P-6Pole motor, 8P-8Pole motor.

52.07: Gear reduction ratio

M2: Mounting way

Ø300:External diameter of output flane (if there is a flange)

270°: Terminal box position

3:Position of cable entry
