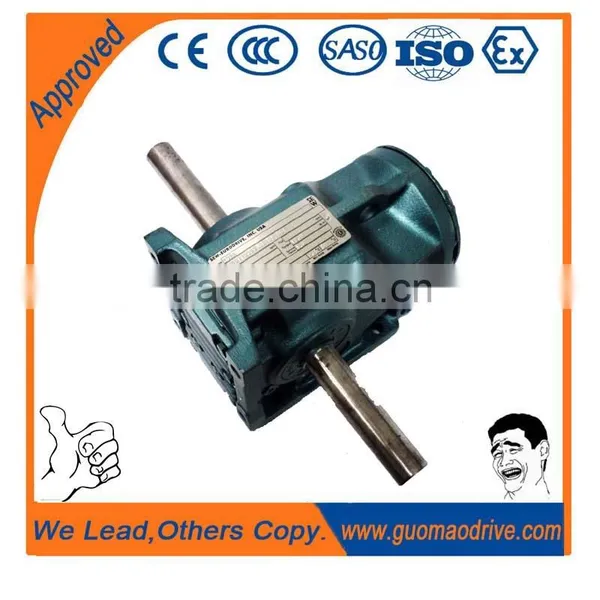

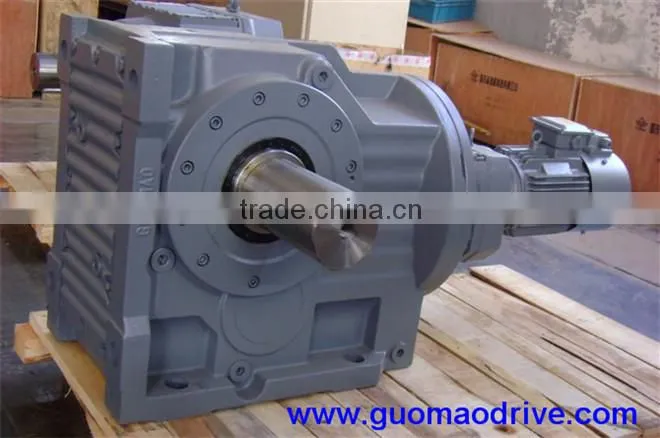

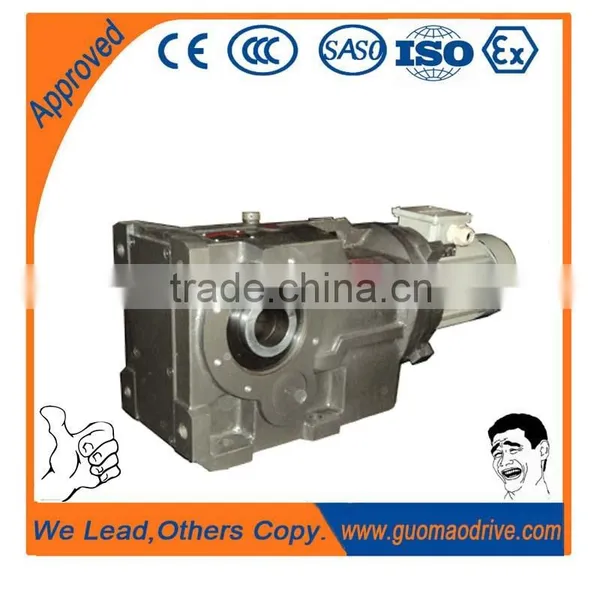

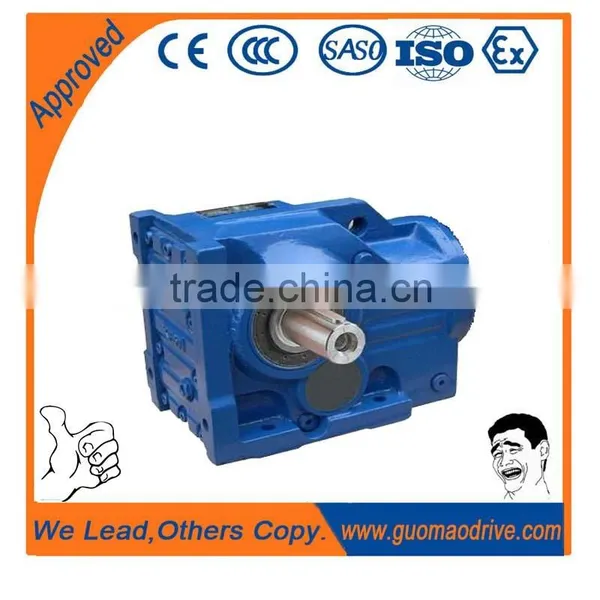

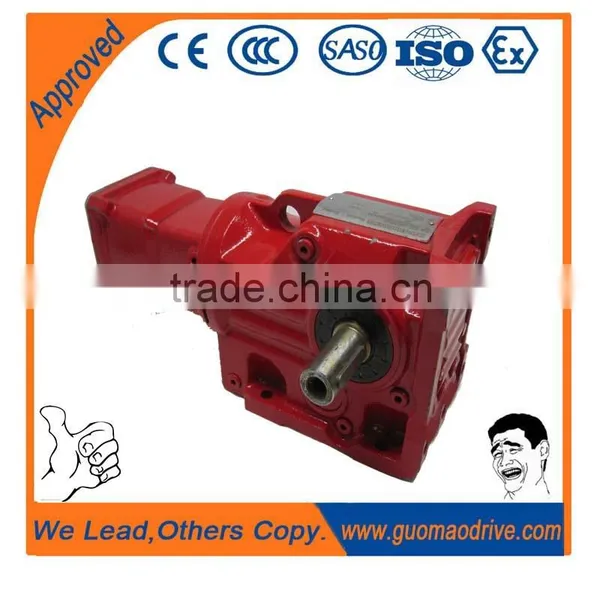

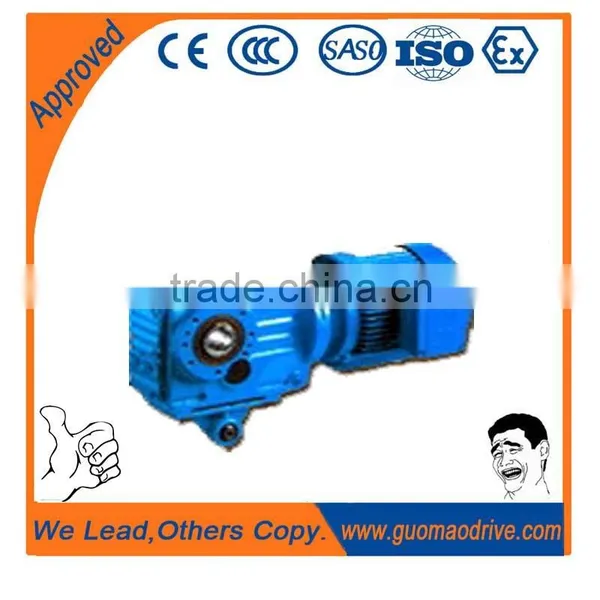

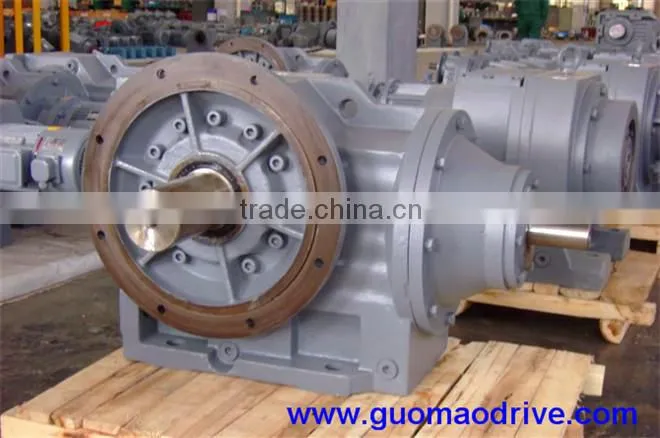

Helical-bevel Gearmotor K Series
@Helical-bevel Gearmotor gerbox Option
Horizontal type with foot or Vertical type without foot.
Input flange to couple the electromotor or direct coupled.
Output part: Solid shaft with key or multiple spline or flange with hollow shaft or with shrink disk or torque arm or two shafts on both outside
@Helical-bevel Gearmotor Electric motor option
Asynchronous AC motor Three or Single phase, DC motor, hydraulic motor.
AC Variable frequency, brake, adjustable-speed, Explosion-Proof etc.
Protective insulation class IP54 IP65 IP44 etc. and A,E,B,F,H,C,N,R.
Energy efficiency grades High, middle and low.
@Helical-bevel Gearmotor DESIGNATION(WITH MOTOR)
Example: GK(AF)77-Y1.5-4P-52.07-M2-Ø300-270°-3
GK(AF): GK series helical bevel gear motor
(AF): None-shaft output, F-flange output with solid shaft, A-Output hollow shaft type. H-Hollow shaft output with shrink disk AT- Torque-arm mounted (S17…R77)- Combined types
77:Gearbox model number
Y1.5: 1.5kw standard electric motor.
4P: 4Pole motor, 2P-2Pole motor, 6P-6Pole motor, 8P-8Pole motor.
52.07: Gear reduction ratio
M2: Mounting way
Ø300:External diameter of output flane (if there is a flange)
270°: Terminal box position
3:Position of cable entry
