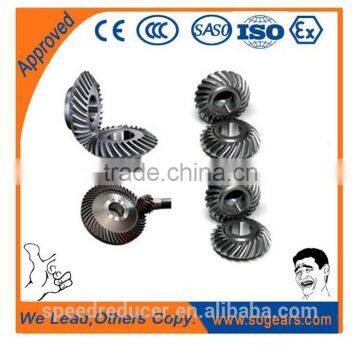

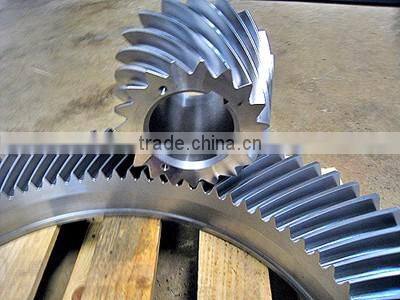

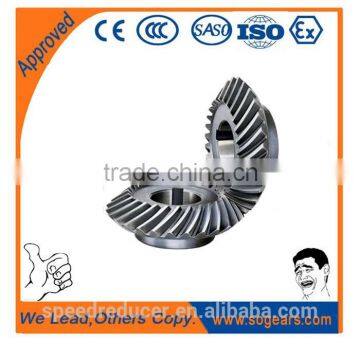

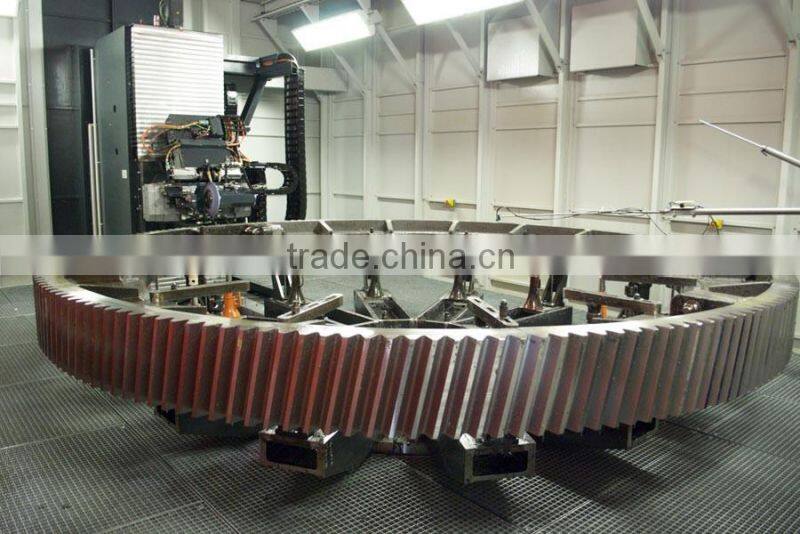

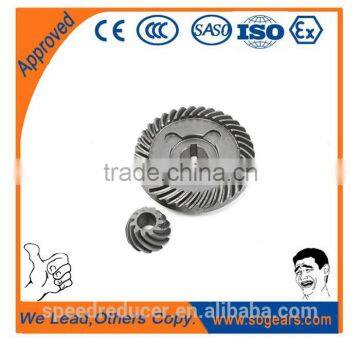

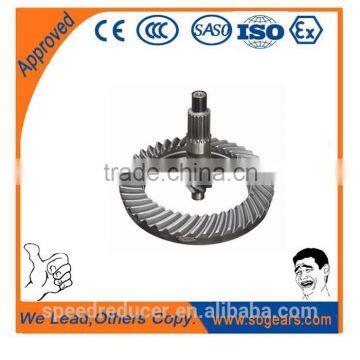

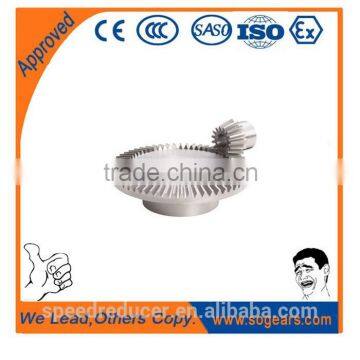

gear assembly for speed reducers
We produce gears as per your special samples or drawing and we also produce as per standards such as Metric standard, British standard, AGMA standards by CNC machine
Material can be C45, 40Cr, 20CrMnTi, 42CrMo, copper, stainless steel and so on as per your requests
There is high precision available as your special request
Our gear is exported to Europe and America in big quantity and so we are sure that we can help you win great success!
Advantage:
• Manufacturer
• Professional Engineering Capability
• Stable Quality
• Reasonable Price
• Small Orders Accepted
• Design service
• Maintenance service
• Prompt Delivery
• Professional Service
| Tooth trace | involute |
| material | 38CrMoAl |
| Process | forging, nitrided, tooth grinding, line cutting |
| Pressure angle | 20° |
| Quality level | DIN 7 |
| Type | Mn=13.2, Z=30, a=20°; keyway ceter aligns to tooth tip center |
Gear and Gear Shaft Product Specifications:
Material |
Alloy Steel |
Casting Steel |
Gray cast iron |
Ductile Iron |
Weldment |
20CrMnTi |
20CrMnTi |
HT200 |
QT400-18 |
20CrMnTi |
|
20CrMnMo |
20CrMnMo |
HT250 |
QT400-15 |
20CrMnMo |
|
20 CrMo |
20 CrMo |
20 CrMo |
|||
35CrMo |
35CrMo |
35CrMo |
|||
42CrMo |
42CrMo |
42CrMo |
|||
20Cr2Ni4A |
20Cr2Ni4A |
20Cr2Ni4A |
|||
20CrNiMo |
20CrNiMo |
20CrNiMo |
|||
20CrNi2Mo |
20CrNi2Mo |
20CrNi2Mo |
|||
40CrNiMo |
40CrNiMo |
40CrNiMo |
|||
18CrNiMo7-6 |
18CrNiMo7-6 |
18CrNiMo7-6 |
|||
17CrNiMo6 |
17CrNiMo6 |
17CrNiMo6 |
|||
34 CrNiMo6 |
34 CrNiMo6 |
34 CrNiMo6 |
|||
18Cr2Ni4WA |
18Cr2Ni4WA |
18Cr2Ni4WA |
|||
18Cr2Ni4WE |
18Cr2Ni4WE |
18Cr2Ni4WE |
|||
45 C |
45 C |
45 C |
|||
40Cr |
40Cr |
40Cr |
|||
38CrMoAl |
38CrMoAl |
38CrMoAl |
|||
16Mn |
16Mn |
16Mn |
|||
16MnCr5 |
16MnCr5 |
16MnCr5 |
|||
GCr15 |
GCr15 |
GCr15 |
|||
Modulus |
1mm-50mm |
||||
Accuracy |
DIN Class 4, ISO/GB Class 4, AGMA Class 13, JIS Class 0 |
||||
Standard |
DIN, ISO/GB, AGMA, JIS |
||||
Heat treatment |
Quenching and tempering, gear teeth induction quenching, nitriding, carburization |
||||
Application |
Wind turbine, locomotive, feeding machinery, metallurgy machinery, mining machinery |
||||
Gear shaft length |
2500mm max. |
||||
Weight |
15 tons max. |
||||
