Help CenterShengyi FR4 Pcb
US$ 1 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TWOWIN
Model Number:
TW002
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
TWOWIN
Model Number
TW002
Base Material
fr4
Copper Thickness
1oz
Board Thickness
1.6mm, Any thickness
Min. Hole Size
0.5mm
Min. Line Width
5mil
Min. Line Spacing
5mil
Surface Finishing
Gold
Specifications

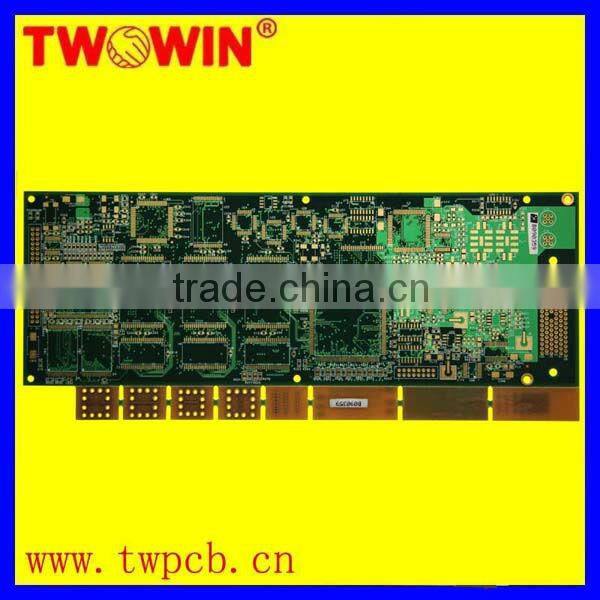

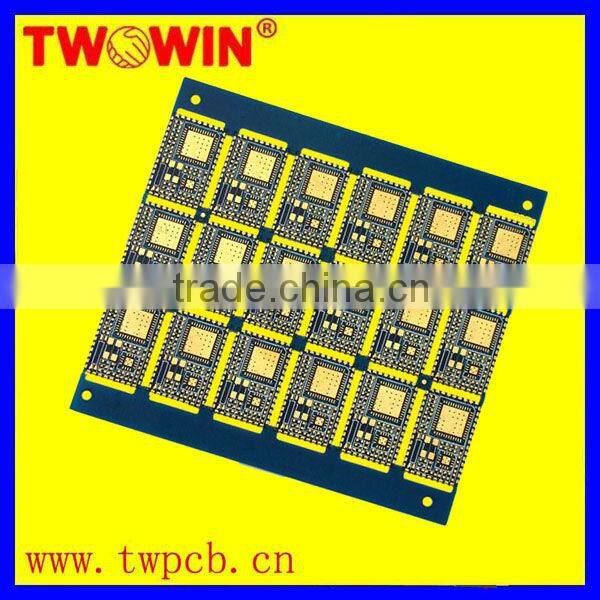

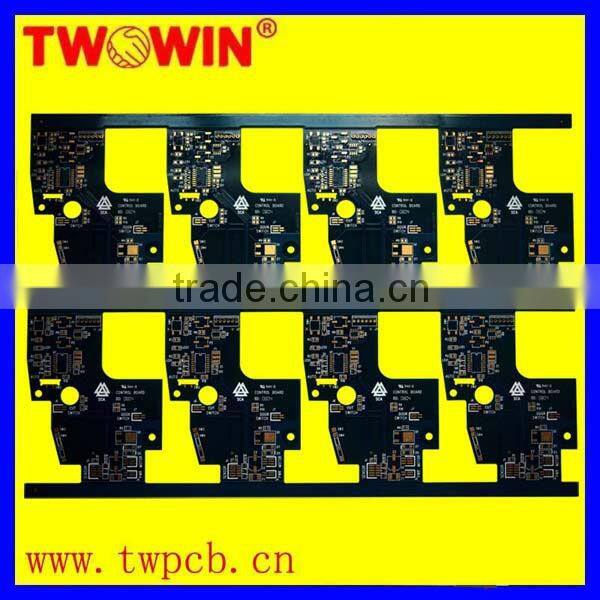

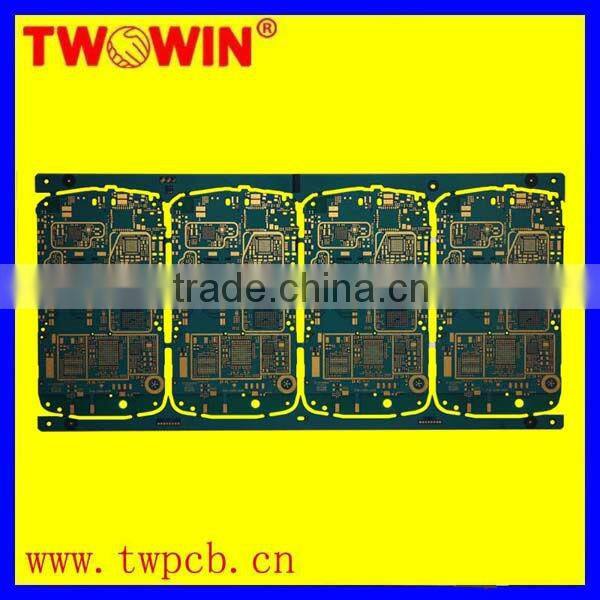

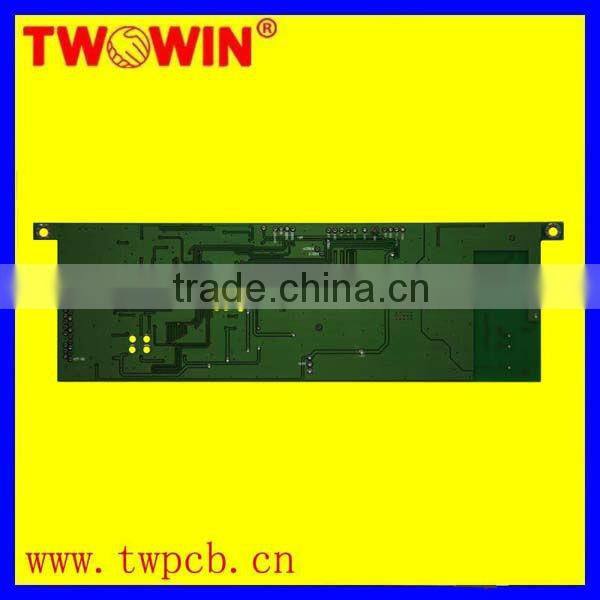

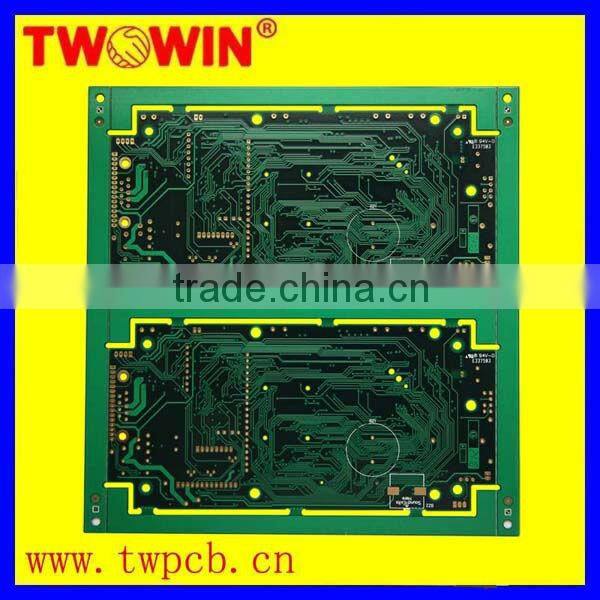

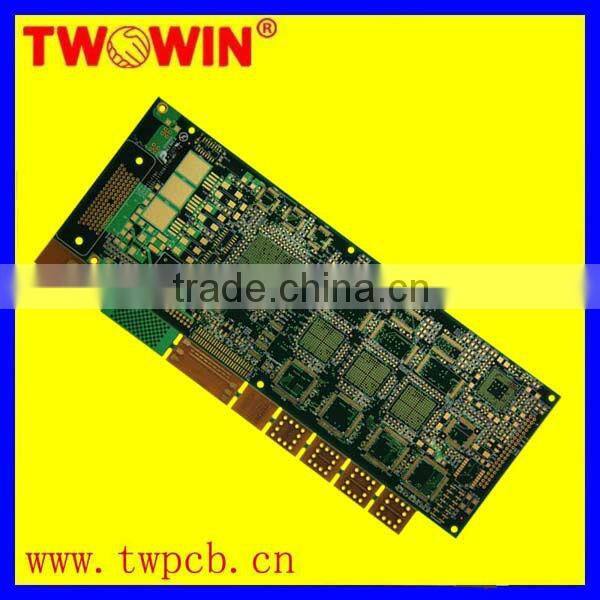

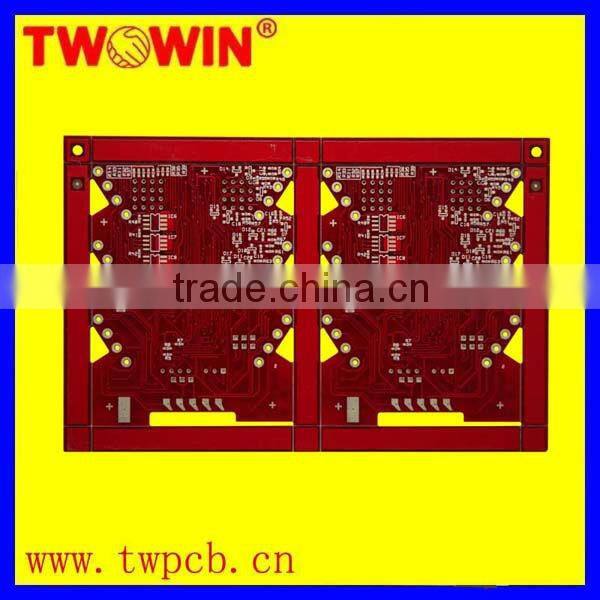

shengyi FR4 pcb :1.thicknese:FR4 1.6MM
2.Colour:black/green/blue/yellow/red
3.layer:2/4/6
4.Finished:gold/hasl
shengyi FR4 pcb :
No need to come to china,
we can see how us to make the PCB.
/v_show/id_XNTA0ODg5MjA4.html
| ITEMS: | SPECIFICATION |
| LAYER: | 2 -10layer |
| BOARD MATERIAL: | FR-4, CEM-1,CEM-3, High TG, FR4 Halogen Free,FR-1,FR-2 |
| BOARD THICKNESS: | 0.6-3.2mm |
| CAMBER: | D>5.0+/-0.076mm 0.3<D<+/-0.05MM D<0.3+/-0.08MM |
| MIN.FINISHED HOLE SIZE: | 0.5MM |
| HOLE COPPER THICKNESS: | >20UM |
| MIN.TRACK WIDTH: | 5mill |
| MIN.TRACK SPACING: | 5mill |
| PROFILE SIZE TOLERANCE: | + / -0.15 |
| PROFILE: | MILLING,MOULDING,VUT,CHANFER |
| COATING: | Hasl gold osp |
| SOLDER MASK COLOR: | green/yellow/black/white/red/blue |
| TECHNNOLOGY: | / |
| LEGEND COLOR: | green/yellow/black/white/red/blue |
| CERTIFICATE: | UL,ROHS,ISO9001,T/S 16949 |
| ASSEMBLY: | LEDA FREE,NOT LEAD FREE |
