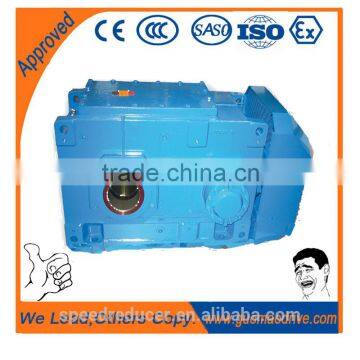

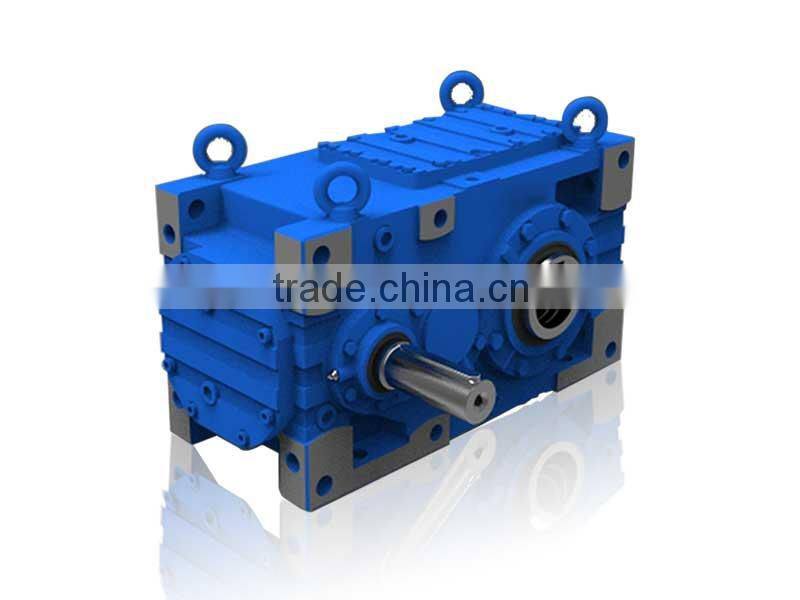

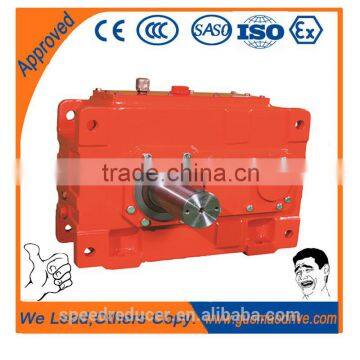

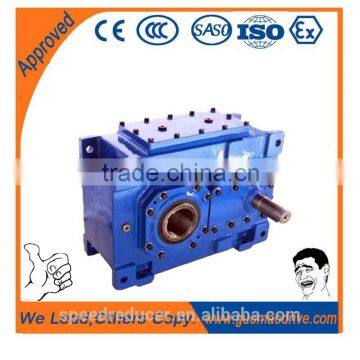

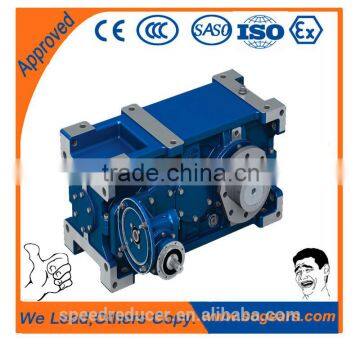

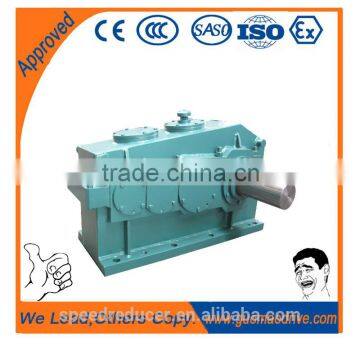

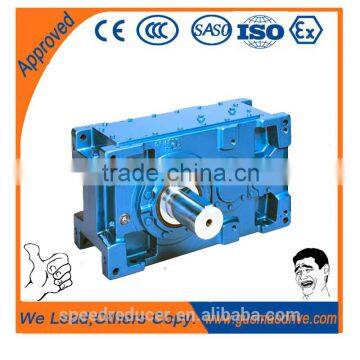

Industrial gear units Helical Gear box

@Helical Gear box Designation(without motor)

Example: P3SH8-80-A

P: P series helical gear box speed reducer

3: No. of stages,1,2,3,4.

S: Output way. S-Solid shaft, H-hollow shaft, D-Hollow shaft with shrink disk.

H: Mounting way, H-Horizontal, M-Horizontal without feet, V-Vertical

8: Model number of gearbox

80: Transimission ratio

A: Design mounting way

@Industrial gear units Parameter Range

Power range: Top to 4800KW

Output speed(r/min): 01- 1200

Output Torque(N.M): Top to 952000N.M

@Industrial Helical Gear box Features

Output way:Hollow shaft with keyed connection, shrink disk, splined ,solid shaft etc.

Unique modular design easy for cross country production, low stock, short delivery time.

Bearing: China standard. But SKF, FAG, NSK, TIMKEN, NTN, KOYO, C&U is a aviable if need

Large output torque,smooth startup,high efficiency, long life cycle, horizontally and vertically

High purity alloy steel gear, strong shock resistance, profile ground gears improve the load capacity, cooling performance and noise lowering.

The seal of output shaft part adopts double oil seal with perfect oil leaking resistance.Reliable sealing and more widely applicable to industry.

High purity alloy steel gear, strong shock resistance, profile ground gears improve the load capacity, cooling and noise lowering performance, stable transmission.
