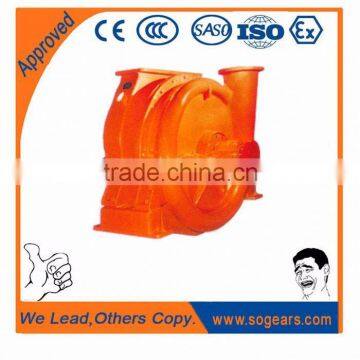

HTD120-22 blower fan for cupola furnace air blower
APPLICATION: HTD series of high pressure centrifugal blower applicable to the common variety of the cupola furnace, but also for all kinds of furnaces, blacksmiths blast furnace use. It can also be selected for use based on performance, but only for the carriage of air and non-corrosive gases, not spontaneous, not containing viscous material gas, the carriage of gases containing not more than dust 150mmg / cubic meter, the gas temperature does not exceed 80 degrees Celsius.
CHARACTERISTICS: The fan on the cupola replaced by other types of high-pressure fan and blower, with high pressure, low power consumption, low noise characteristics, the noise is typically less than 80dB and the frequency is not harsh, than other types of coal 20 fans save -50%, also has a compact structure, easy maintenance, easy to overload the motor, etc., it proved that this series is equipped with the most energy-efficient blowers applicable cupola, and have higher economic returns.
PARAMETERS
| Type | fan blower main parameters | motor | the rion content (T/h) | |||||
| air quantity m³/min | wind pressure mmH20 | rotation rate/min | bearing | type | power(kw) | transmission | ||
| HTD20-11 | 20 | 1100 | 5750 | 6309 | Y132S2-2 | 7.5 | belt | 1 |
| HTD30-11 | 30 | 1400 | 5750 | 6309 | Y160M2-2 | 11 | belt | 1.5 |
| HTD35-12 | 35 | 1200 | 5750 | 6309 | Y160M2-2 | 15 | belt | 2 |
| HTD40-11 | 40 | 1400 | 5750 | 6309 | Y160M2-2 | 15 | belt | 2.5 |
| HTD45-15 | 45 | 1800 | 5600 | 6310 | Y180M-2 | 22 | belt | 3 |
| HTD50-11 | 50 | 1300 | 5000 | 6310 | Y160L-2 | 18.5 | belt | 3 |
| HTD50-12 | 50 | 1500 | 5000 | 6310 | Y180M-2 | 22 | belt | 3 |
| HTD50-13 | 50 | 1600 | 5000 | 6310 | Y180M-2 | 22 | belt | 3 |
| HTD50-14 | 50 | 1800 | 5000 | 6310 | Y200L1-2 | 30 | belt | 3 |
| HTD50-16 | 50 | 2000 | 5600 | 6310 | Y180M-2 | 30 | belt | 3 |
| HTD55-11 | 55 | 1800 | 5600 | 6310 | Y200L2-2 | 30 | belt | 3.5 |
| HTD60-1.21 | 60 | 2100 | 4850 | 6312 | Y225M-2 | 37 | belt | 4 |
| HTD60-1.23 | 60 | 2300 | 4850 | 6312 | Y225M-2 | 37 | belt | 4 |
| HTD70-1.21 | 70 | 2100 | 4850 | 6312 | Y225M-2 | 45 | belt | 4 |
| HTD70-1.23 | 70 | 2300 | 4850 | 6312 | Y225M-2 | 45 | belt | 4 |
Packaging:1unit in 1 plywood case;
Delievery day:15 days
1. Our products be export to more than 30 countries.
2. On time delivery.
3. The experienced customers service team provides excellent communication for all customers to answer questions and solve problem.
