High capacity fresh/dry pepper/chili stem removing machine

1. NAME:High capacity fresh/dry pepper/chili stem removing machine
2. configurations: one host, four belt

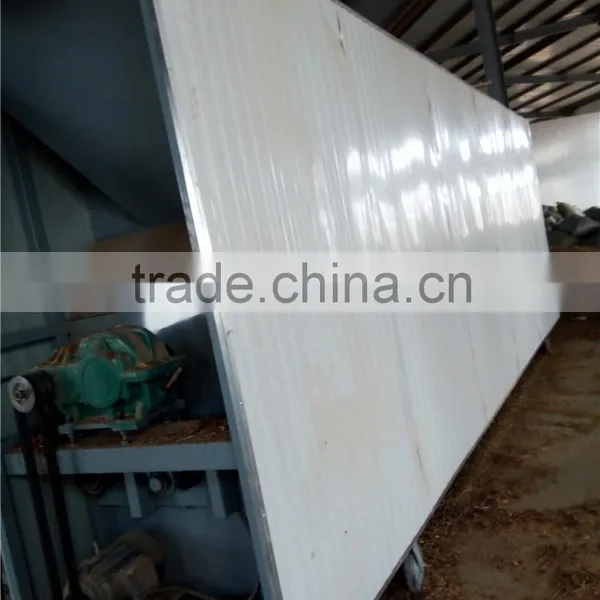

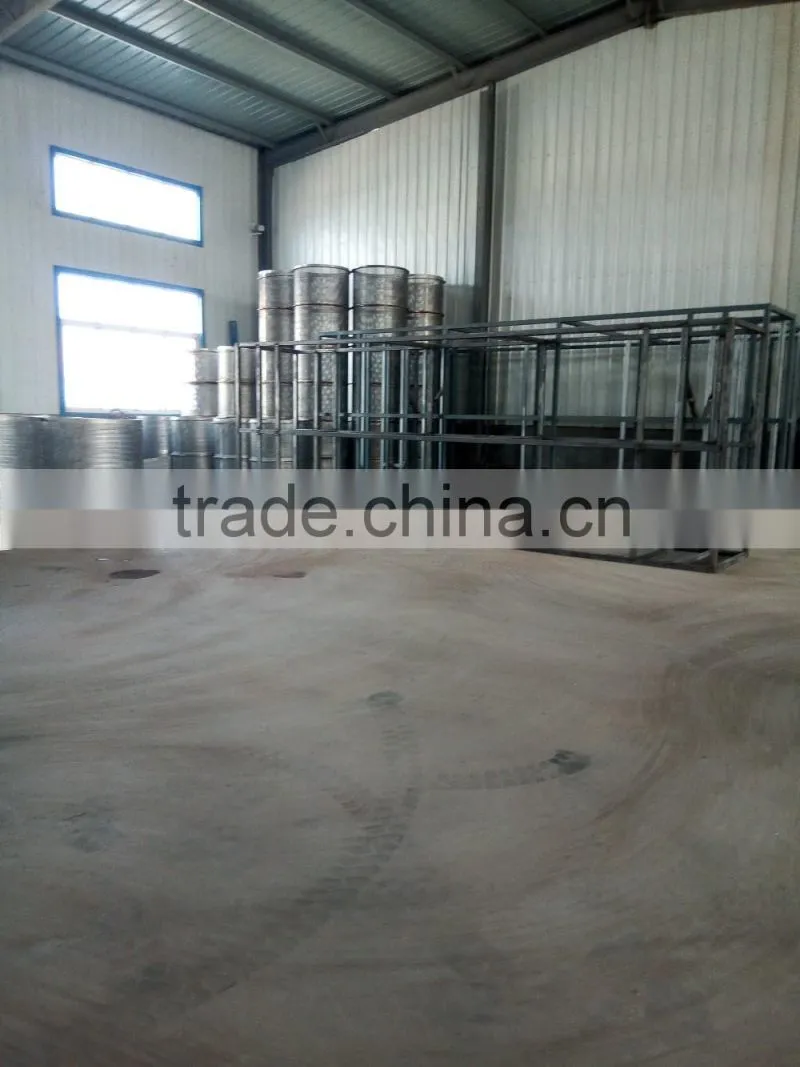

Host Details: Host overall framework for the 5.5cm square steel, stainless steel cylinder with 210, with four casters for easy mobility. Host expected out in the same direction.

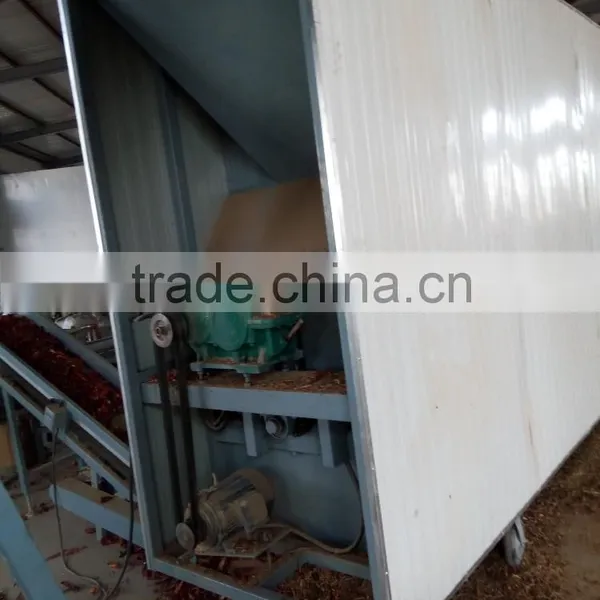

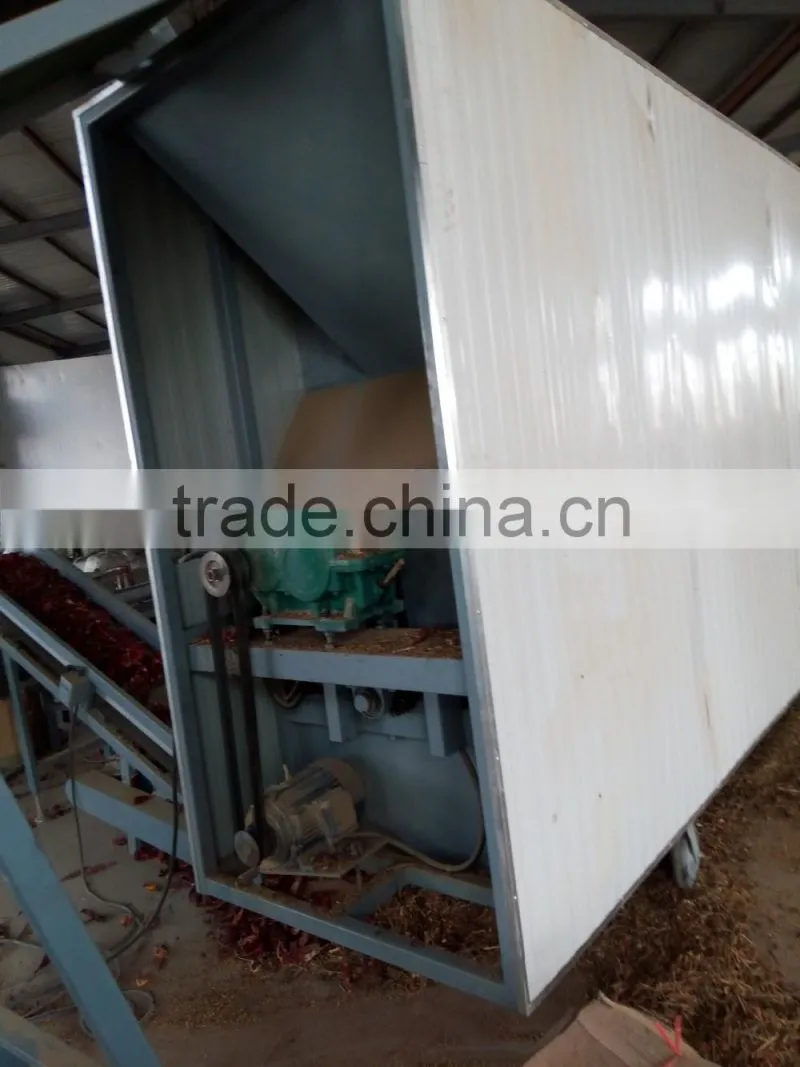

Two each with 4000 watts ZQ250 gear boxes, hosts a total of 8000 watts of power. Plus distribution box switch, you can save electricity by 50%.

AFTER:
6.1 m length of the host (the foreign ministers of 5.7 meters) wide and 1.1 meters high 2.5 meters high each cabinet can hold four.

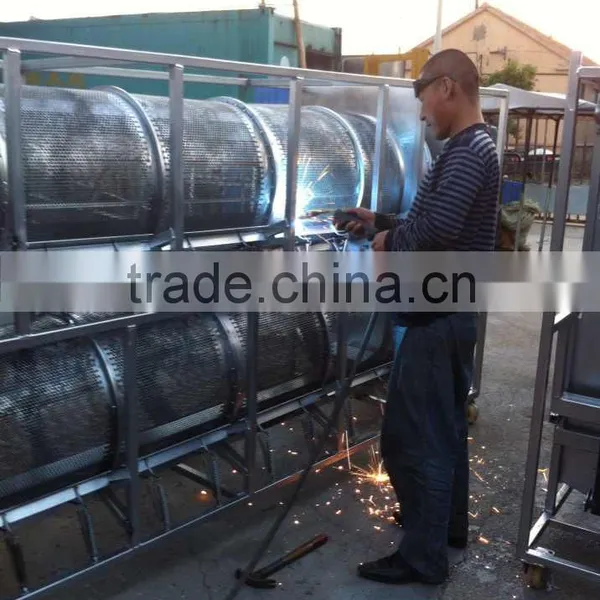

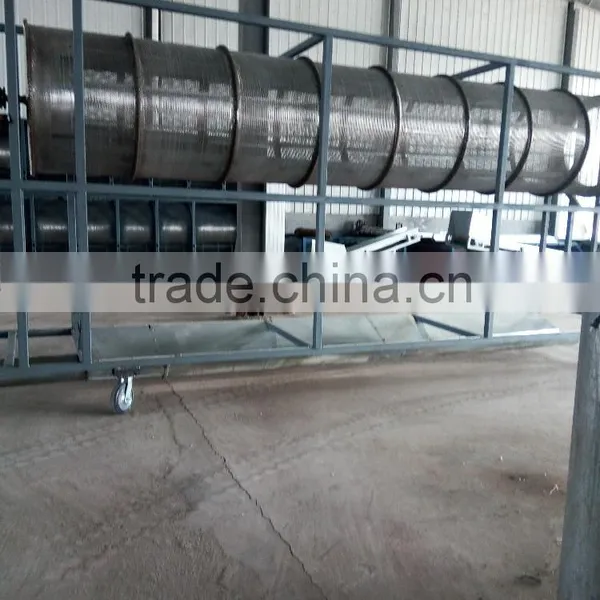

8 by the roller section makes up about 1 meter in diameter, roller mesh size 8mm (India 4mm) can be rotatably 50-60 revolutions per minute according to the type of chili custom drum.
Each host weight of about 1.5 tons
Yield: about 3 tons per hour
Artificial: Each person needs 5-8

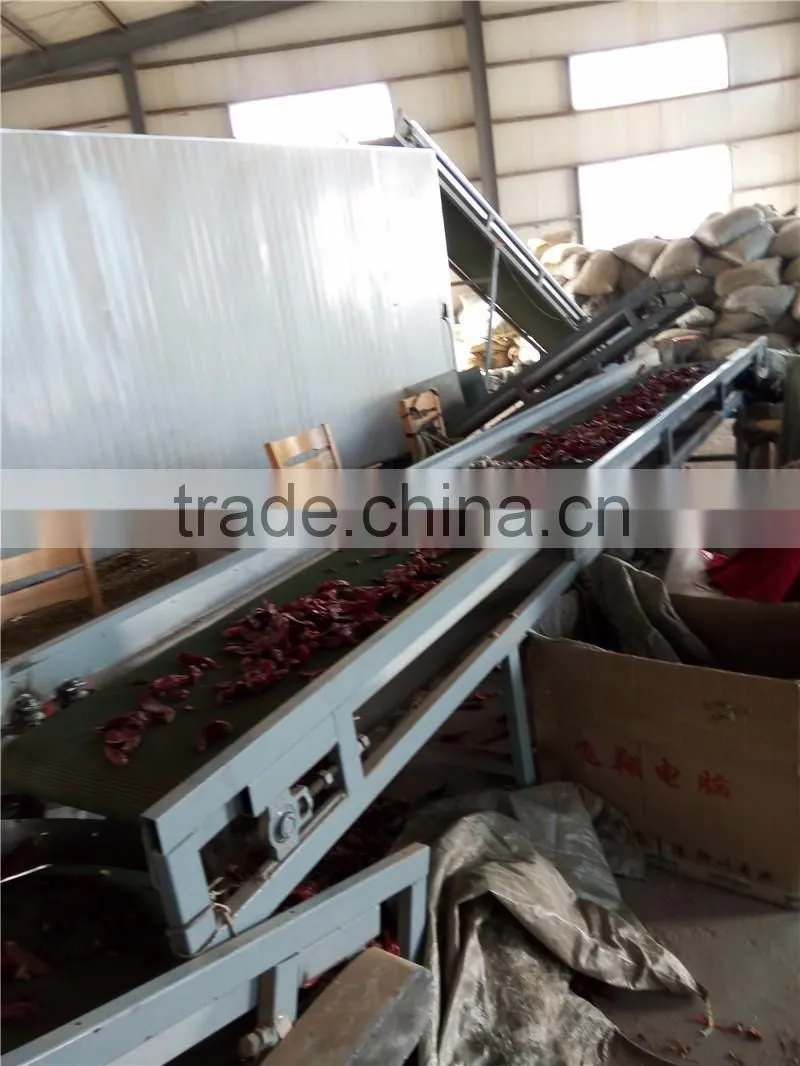

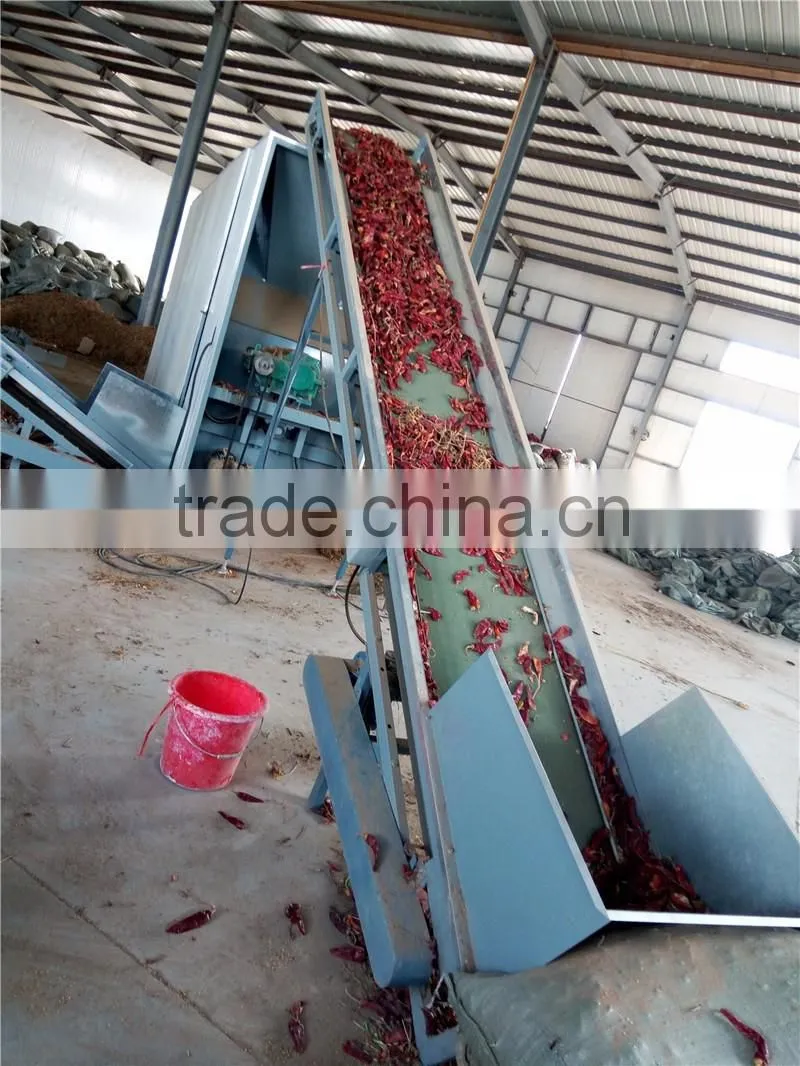

3. The conveyor belt a total of four, namely: feed zone, a strip, with sorting and bagging zone
Feed belt and sorting 71cm wide and 4.8 meters long with a feed with a pattern, sorting with no pattern
The tape and bagging length 2.3 m with a 43cm wide strip and have a bag with a pattern, with two bagging a barrel, the switch can be controlled in different directions shipments.
Each conveyor is equipped with a motor 0.75kw, the total power of 3000kw
Conveyor speed: 50 meters per hour

The whole device uses a three-way electric, the total power of 11,000 watts of electricity per hour, about 4 degrees. Now there is only one configuration, such as the option to add the drive to adjust the speed, but no power saving.
4. to the rate: currently up to 85% improvement after up to 95%, according to the varieties of chili, humidity and determines the amount of debris.
5. Yield: 1 set-10 days, 5 sets -15days,10sets-20days
6. Domestic equipment can come debugging, sent two knives.
