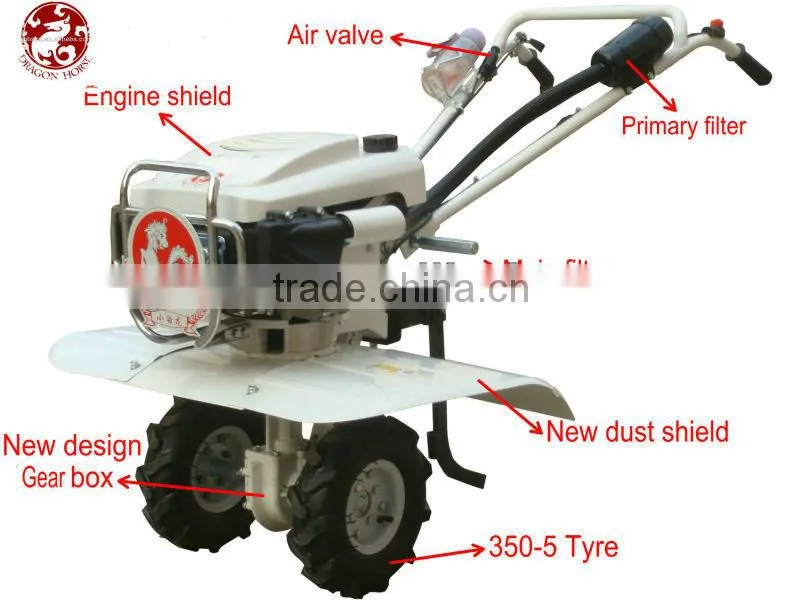

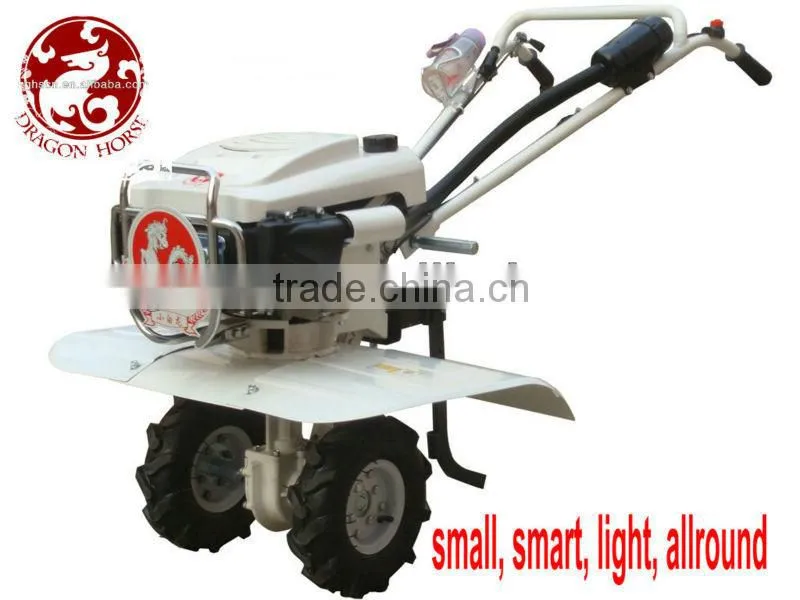

Newest white used tractor trader

Model

                 1WG4.1 ABG

Tiller

Rated Power

4.1kw

Starting System

Recoil/Electric Start

Transmission

All Gear Drive

Clutch

Centrifugal Adhesion

Gear shifting

0,  1

Tyre size(in.)

350-5(diameter:13.8, width:2.0)

Diameter of Cutters(in.)

11.8

Speed of Cutters(rpm)

150rev/min

180rev/min

Tilling Depth(in.)

7-9(adjustable)

Tilling Width(in.)

17-37(adjustable)

Productivity(acre/h)

1-1.5acre

Accessories

1 set of rotary blade included

Engine

Engine Series

Gasoline 1P70FA

Engine Type

Single Cylinder

Air-Cooled

4-stroke

Vertical

Cylinder DIA*Stroke(in.)

3*2

Compression Ratio

8:1

Lubricating System

Spray Lubrication

Fuel Tank Capacity(L)

2.5

Fuel Consumption(kg/kw.h)

0.8

Spark plug gap(in.)

0.70-0.80mm

Displacement(cc)

196cc

Max. Torque(N.m/2500rpm)

11.0

Cooling System

Air Cooled

Max Power(kw/3600rpm)

4.4

Weight

Net/Gross Weight(kg)

50/55

Others

Package Dimension(L*W*H)

55*17*29(in.)

Packages

Carton Box/ Plywood Case

Min. Order(sets)

20

Port

Shanghai/Qingdao

Delivery Time

2 Weeks

Payment Terms

T/T

Warranty Time

2 Years

Loading QTY

20GP

80sets

40GP

160sets

40HQ

200sets
