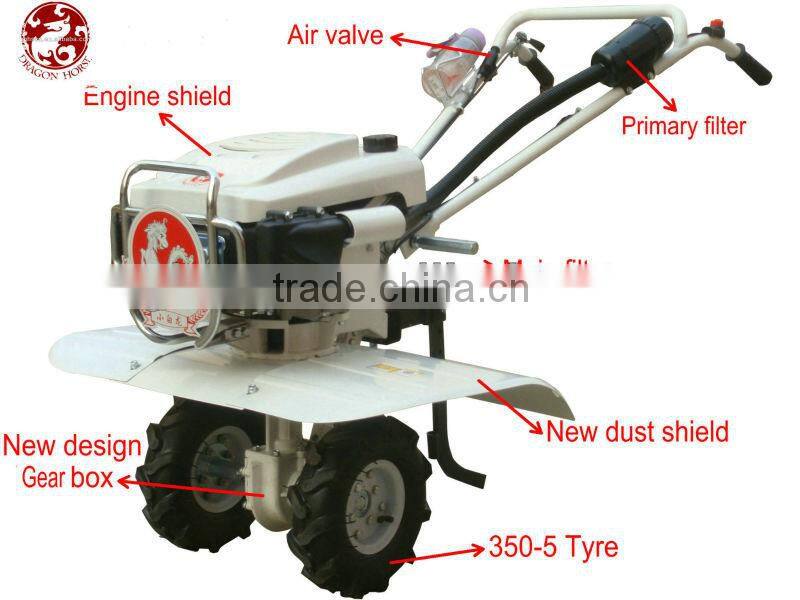

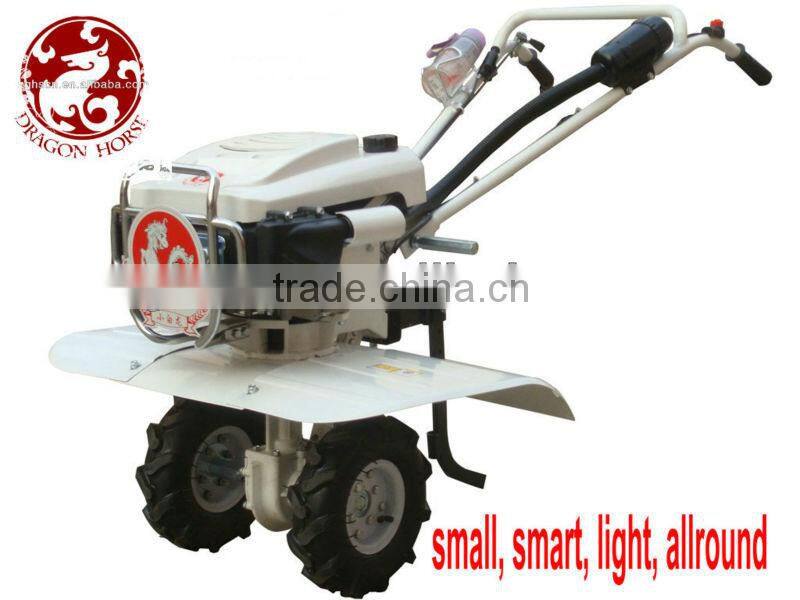

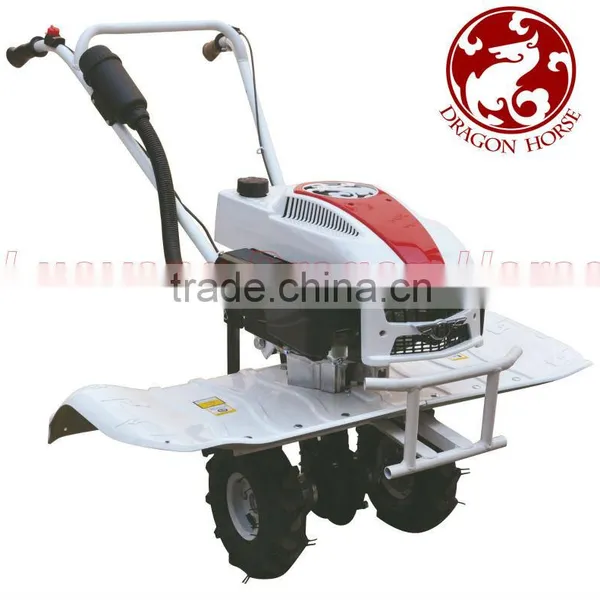

2014 New Design White High Effective Heavy Duty Garden Tillers

Name: 2014 New Design White High Effective Heavy Duty Garden Tillers
Brand: Little White Dragon
SKU: 115887909
Availability: InStock

US$ 200 - 400 MOQ: 20 Sets

Key Specifications

Condition:

New

Type:

Farm Cultivator

Power Type:

Gasoline

Luoyang Dragon-Horse Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Farm Cultivator

Power Type Gasoline

Power(W) 4.1

Certification ISO9001, CE ,SONCAP

Warranty 2Year

Use ditching,ridging,cultivating and tilling

Place of Origin Henan, China

Brand Name Little White Dragon

Model Number 1WG4.1

Weight 55kg, 55kg

Dimension(L*W*H) 140*44*74

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1>Multifunction:ditching,ridging,cultivating,tilling
2>Weight:55kg
3>Overall Dimension:140*44*74cm
4>warranty time:2year

2013 New Design White High Effective Heavy Duty Garden Tillers

Main Parameter:

Model	1WG4.1
Tiller	Rated Power		4.1kw
	Starting System		Recoil/Electric Start
	Transmission		All Gear Drive
	Clutch		Centrifugal Adhesion
	Gear shifting		0, 1
	Tyre size(in.)		350-5(diameter:13.8, width:2.0)
	Diameter of Cutters(in.)		11.8
	Speed of Cutters(rpm)		150rev/min 180rev/min
	Tilling Depth(in.)		7-9(adjustable)
	Tilling Width(in.)		17-37(adjustable)
	Productivity(acre/h)		1-1.5acre
	Accessories		1 set of rotary blade included
Engine	Engine Series		Gasoline 1P70FA
	Engine Type		Single Cylinder Air-Cooled 4-stroke Vertical
	Cylinder DIA*Stroke(in.)		3*2
	Compression Ratio		8:1
	Lubricating System		Spray Lubrication
	Fuel Tank Capacity(L)		2.5
	Fuel Consumption(kg/kw.h)		0.8
	Spark plug gap(in.)		0.70-0.80mm
	Displacement(cc)		196cc
	Max. Torque(N.m/2500rpm)		11.0
	Cooling System		Air Cooled
	Max Power(kw/3600rpm)		4.4
Weight	Net/Gross Weight(kg)		50/55
Others	Package Dimension(LWH)		551729(in.)
	Packages		Carton Box/ Plywood Case
	Min. Order(sets)		20
	Port		Shanghai/Qingdao
	Delivery Time		2 Weeks
	Payment Terms		T/T
	Warranty Time		2 Years
	Loading QTY	20GP		80sets
		40GP		160sets
		40HQ		200sets
