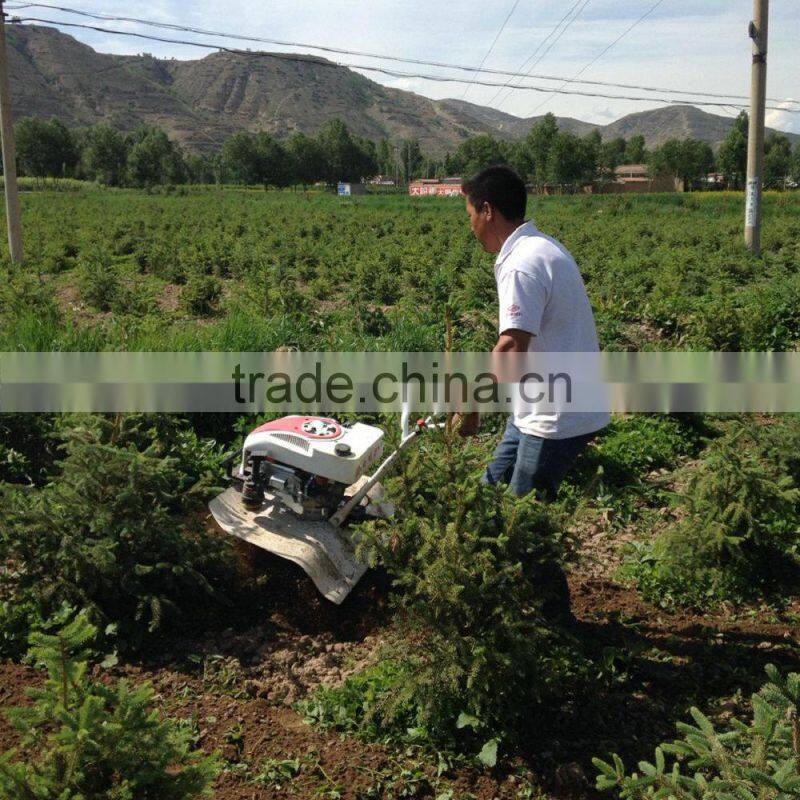

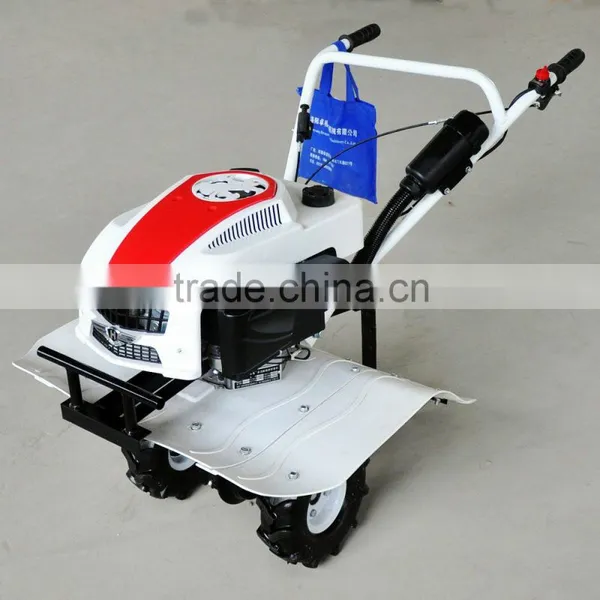

196cc 6.5hp rotor cultivator plow horticulture tracteur
Main Parameter
Model |
1WG4.1 B |
|||
Tiller |
Rated Power |
4.1kw |
||
Starting System |
Recoiling |
|||
Transmission |
All Gear Driving |
|||
Clutch |
Centrifugal Adhesion |
|||
Gear shifting |
0, 1 |
|||
Tyre size(in.) |
350-4(diameter:13.8, width:2.0) |
|||
Diameter of Cutters(in.) |
11.8 |
|||
Speed of Cutters(rpm) |
150rev/min 180re-/min |
|||
Tilling Depth(in.) |
10-18cm(adjustable) |
|||
Tilling Width(in.) |
35-87(adjustable) |
|||
Productivity(acre/h) |
1.1-1.3 |
|||
Accessories |
1 set of rotary blade included |
|||
|
Engine
|
Engine Series |
Gasoline 1P70FDA |
||
Engine Type |
Single Cylinder Air-Cooled 4-stroke Vertical shaft |
|||
Cylinder DIA*Stroke(in.) |
3*2 |
|||
Compression Ratio |
8:1 |
|||
Lubricating System |
Spray Lubrication |
|||
Fuel Tank Capacity(L) |
2.5 |
|||
Fuel Consumption(kg/kw.h) |
0.8 |
|||
Spark plug gap(in.) |
0.70-0.80mm |
|||
Displacement(cc) |
196cc |
|||
Max. Torque(N.m/2500rpm) |
11.0 |
|||
Cooling System |
Air Cooling |
|||
Max Power(kw/3600rpm) |
4.4 |
|||
Weight |
Net/Gross Weight(kg) |
50/55 |
||
Others |
Package Dimension(L*W*H) |
100*40*74(cm) |
||
Packages |
Carton/ Plywood Case |
|||
Min. Order(sets) |
20(Accept trial order) |
|||
Port |
Shanghai/Qingdao |
|||
Delivery Time |
2 Weeks |
|||
Payment Terms |
T/T |
|||
Warranty Time |
1 Years |
|||
Loading QTY |
20GP |
140sets |
||
40GP |
330sets |
|||
40HQ |
390sets |
|||
Matche Implement
Products series
Machine Feature
Wide Application
Machine details
Assemble and packing
