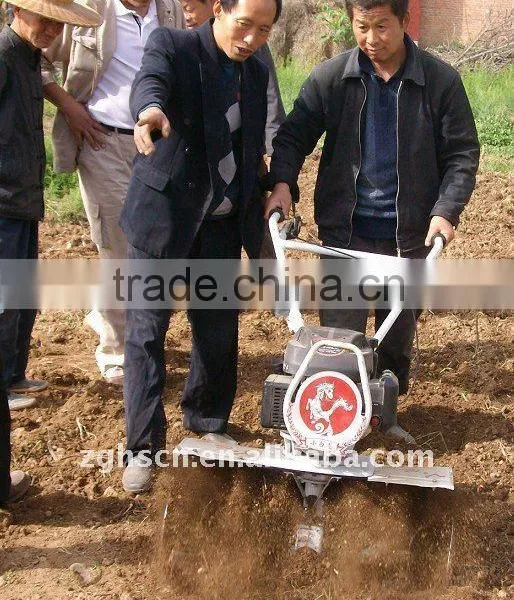

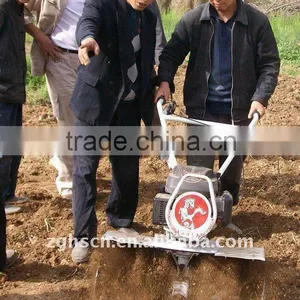

7HP Gasoline Hand Held Rotary Tiller Hand Operated Farm Equipment Mini Kultivator

Name: 7HP Gasoline Hand Held Rotary Tiller Hand Operated Farm Equipment Mini Kultivator
Brand: Tennma
SKU: 115886807

US$ 200 - 400 MOQ: 20 Sets

Key Specifications

Condition:

New

Type:

Other, Farm Cultivator, Walking Tractor

Power Type:

Gasoline

Luoyang Dragon-Horse Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, Farm Cultivator, Walking Tractor

Power Type Gasoline

Power(W) 4100

Certification ISO9001, CE

Warranty 1 year

Use tilling, ridging, weeding

Place of Origin Henan, China

Brand Name Tennma

Model Number Tennma VG-L1

Weight 50kg/110lbs

Dimension(L*W*H) 100*40*74cm/ /39.37*15.74*29.13 in

After-sales Service Provided Engineers available to service machinery overseas

7HP Gasoline hand held rotary tiller hand operated farm equipment mini kultivator

Main Parameter

Model	1WG4.1 B
Tiller	Rated Power		4.1kw
	Starting System		Recoiling
	Transmission		All Gear Driving
	Clutch		Centrifugal Adhesion
	Gear shifting		0, 1
	Tyre size(in.)		350-4(diameter:13.8, width:2.0)
	Diameter of Cutters(in.)		11.8
	Speed of Cutters(rpm)		150rev/min 180re-/min
	Tilling Depth(in.)		10-18cm / 3.94~7.08 in (adjustable)
	Tilling Width(in.)		35-87(/ 13.77~34.25 in adjustable)
	Productivity(acre/h)		1.1-1.3
	Accessories		1 set of rotary blade included
Engine	Engine Series		Gasoline 1P70FDA
	Engine Type		Single Cylinder Air-Cooled 4-stroke Vertical shaft
	Cylinder DIA*Stroke(in.)		3*2
	Compression Ratio		8:1
	Lubricating System		Spray Lubrication
	Fuel Tank Capacity(L)		2.5
	Fuel Consumption(kg/kw.h)		0.8
	Spark plug gap		0.70-0.80mm
	Displacement(cc)		196cc
	Max. Torque(N.m/2500rpm)		11.0
	Cooling System		Air Cooling
	Max Power(kw/3600rpm)		4.4
Weight	Net/Gross Weight		50/55KG (110 /121 lbs)
Others	Package Dimension(LWH)		580480715cm/22.8318.928.15in
	Packages		Carton/ Plywood Case
	Min. Order(sets)		20(Accept trial order)
	Port		Shanghai/Qingdao
	Delivery Time		2 Weeks
	Payment Terms		T/T
	Warranty Time		1 Years
	Loading QTY	20GP		104sets
		40GP		200sets
		40HQ		300sets
