direct compression single-head double-faced plastic welder

Specifications

Application range:
1.PVC package,
2.Portfolio and handbag,
3.Special crust vacuum sheeting
4.Car cushion

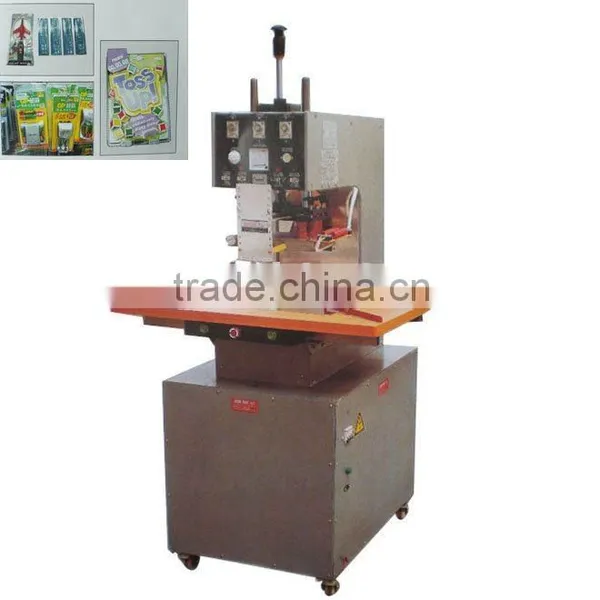

ITEM NAME:Direct compression single-head double-faced plastic welder



ITEM NO.TW-4G/QJ









FEATURE

1.       ARC SUPPRESSOR

When sparks occur,the special electronic circuit on this machine works automatically and cuts high frequency immediately to suppress arcs and minimize damage to electrodes and material. Alarm lamp also works simultaneously.

2.       JAMMING PREVENTION DEVICE

Equipped with frequency stabilizer and high frequency magnetic leakage suppressor. This device prevents leakage of electromagnetic radiation to avoid jamming other electrical instruments such as televisions and radios,etc.

3.       SAFETY  DEVICE

When the current exceeds its limits,the overload relay functions automatically to protect oscillation tubes and rectifier. Frenquency deviation caused by misoperation is also prevented.

4.       EASILY ADJUSTABLE TUNER

Output power can be adjusted at the tuner according to electrode size and material thickness. In addition,other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity













Technique Parameter



Model	TW-4GR/QJ	TW-5GR/QJ	TW-6GR/QJ	TW-8GR/QJ
H.F.output Power	4KW	5KW	6KW	8KW
Oscillation Frequency	40.68 MHZ	27.12MHZ
Power Supply	AC220/380/400/415/440V  3Φ/1Φ
Input Powder	6.5KVA	8.5KVA	10KVA	15KVA
Oscillation Tube	E3062TV	7T85RB	7T69RB
Rectifier	Silicon Rectifier
Max Pressure(kg)	600
Max Gap of Electrodes(mm)	170
Press Strokes(mm)	150
Upper Plate Size(mm)	200*330		300*500
Lower Plate Size(mm)	450*600		500*700
Operation mode	Air pressure
Gross Weight(kg)	410	470	510	530
Mechanical Dimension(mm)	1030(L)*930(W)*1880(H)
