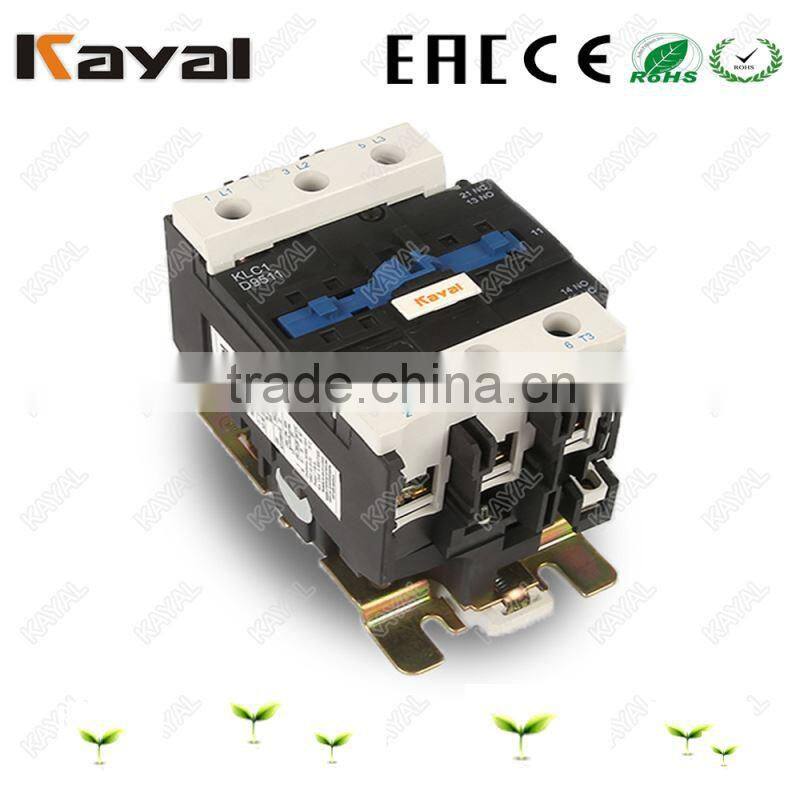

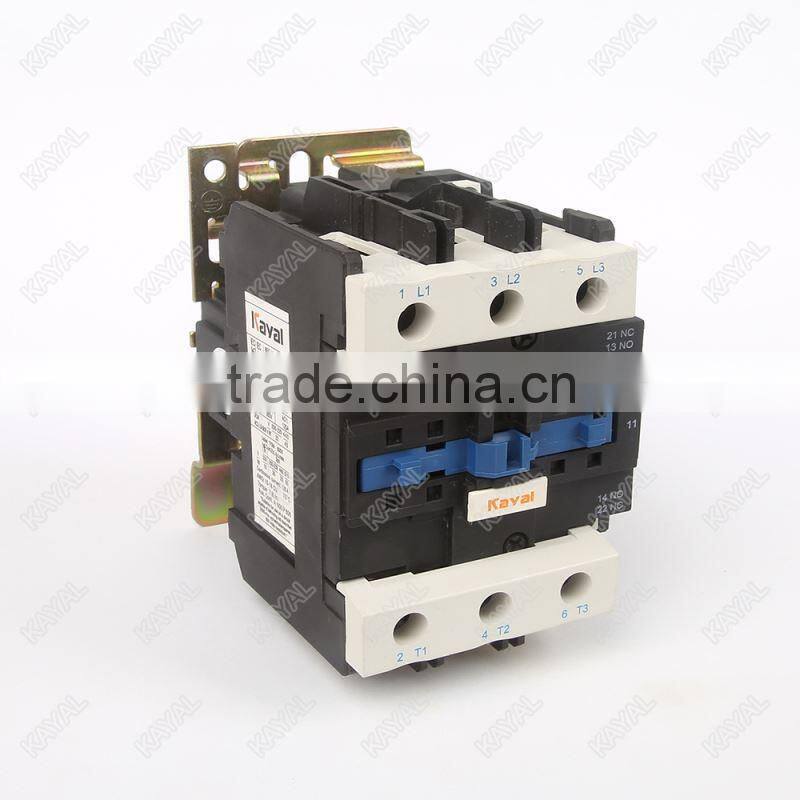

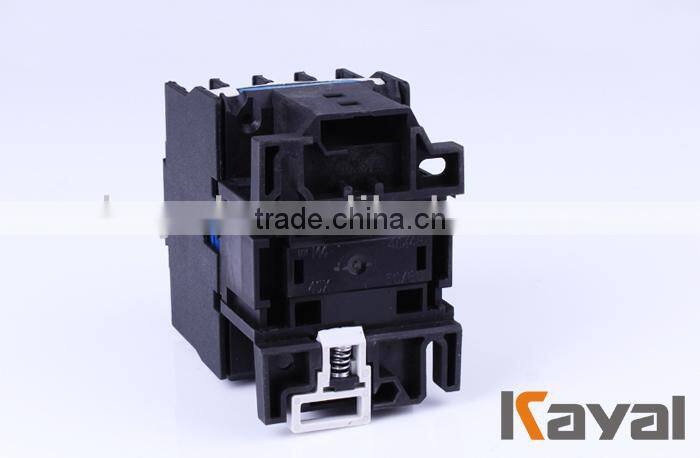

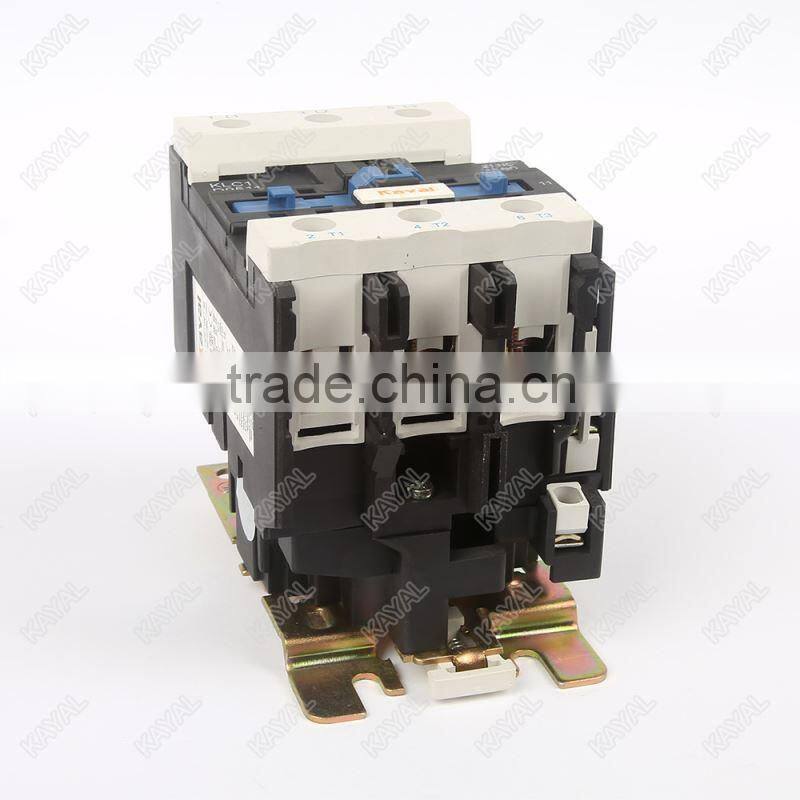

Help CenterLc1-d95 ac Contactor 120v Coil ac Contactor 3phase ac Magnetic Contactor
Related Products
-
3pole 220v Lc1-d9511 ac Magnetic ContactorUS$ 2 - 15MOQ: 10 Pieces -
3 Phase 220v Cjx2-8011 ac ContactorUS$ 2.24 - 13MOQ: 1 Piece
-
Lc1-d80 ac Magnetic Contactor 3 Pole ac Contactor 380vUS$ 2.24 - 13MOQ: 1 Piece
-
Cjx2-d80 ac Contactor Coil 220vUS$ 2.24 - 13MOQ: 1 Piece
-
Lc1 Type Cjx2-80 80A 120v 3phase ac ContactorUS$ 2.24 - 13MOQ: 1 Piece
APPLICATION
--------------------------------------------------------
LC1-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660V
AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & machineinterlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC947-2, VDE0660 & BS5452.
SPECIFICATION
--------------------------------------------------------
| Type | KLC1-D09 | KLC1-D12 | KLC1-D18 | KLC1-D25 | KLC1-D32 | |
Rated operation |
AC-3 | 9 | 12 | 18 | 25 | 32 |
| AC-1 | 3.5 | 5 | 7.7 | 8.5 | 12 | |
AC3-capacity of phase |
220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | |
| 415V | 4 | 5.5 | 9 | 11 | 15 | |
| 440V | 4 | 5.5 | 9 | 11 | 15 | |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | |
| Rated heat current(A) | 20 | 20 | 32 | 40 | 50 | |
| Electrical life | AC4 104 | 20 | 20-15 | 20-7 | 15-7 | 15-7 |
| AC3×106 | 2 | 2 | 2 | 2 | 2 | |
| Mechanical life × 106 | 20 | 20 | 20 | 20 | 20 | |
| Number of the contacts | 3P+NO | |||||
| 3P+NC | ||||||
Kangyu Electrical Co., Ltd. is specializing in manufacturing low voltage electrical products such as AC contactors, air-conditioning AC contactors, circuit breakers, earth leakage circuit breakers, distribution boxes, illumination equipment, and distribution switches. Since the foundation, we have been becoming stronger and stronger.
Why choose us?
1.Factory :Since 2002
2.Team: More than 300 workers (10% of our personnel are superior technicians)
3.Approval:ISO9001:2000, CE, CB, CCC and PICC, and especially we got ULcertificate for air-conditioning AC contactors in 2005
We always consider quality and service first. Our policy is "Quality First; Improve Technology; Expecting Future". Our tenet is "Product & Brand Competition; Quality Serve the world". We hereby would like to work together with more new and old clients to realize our mutual goals of "more excellent products, more competitive prices, and more personalized service".
