Zongshen engine chinese tiller hand ditching machine trencher tractor sale
Main Parameter
| Model | 3TG4.5 | |||
| Tiller | Rated Power | 4.5kw | ||
| Starting System | Recoil/Electric Start | |||
| Transmission | All Gear Drive | |||
| Clutch | Centrifugal Adhesion | |||
| Gear shifting | 0, 1 | |||
| Diameter of Cutters(in.) | 11.8 | |||
| Speed of Cutters(rpm) | 150rev/min | |||
| 180rev/min | ||||
| Ditching Depth(in.) | 4-8(adjustable) | |||
| Ridging Height(in.) | 7 | |||
| Working Width(in.) | 10 | |||
| Efficiency (acre/h) | 1.5-2acre | |||
| Accessories | 1 set of Ditching blade, ridging blade included | |||
| Engine | Engine Series | Gasoline VP200 | ||
| Engine Type | Single Cylinder | |||
| Air-Cooled | ||||
| 4-stroke | ||||
| Vertical | ||||
| Cylinder DIA*Stroke(in.) | 2.75*2 | |||
| Compression Ratio | 8:1 | |||
| Lubricating System | Spray Lubrication | |||
| Fuel Tank Capacity(L) | 2.5 | |||
| Fuel Consumption(kg/kw.h) | 0.8 | |||
| Spark plug gap(in.) | 0.70-0.80mm | |||
| Displacement(cc) | 196cc | |||
| Max. Torque(N.m/3000rpm) | 10 | |||
| Cooling System | Air Cooled | |||
| Max Power(kw/3600rpm) | 4.5 | |||
| Weight | Net/Gross Weight(kg) | 60/65 | ||
| Others | Package Dimension(L*W*H) | 37.4*18.1*34.6(in.) | ||
| Packages | Carton Box/ Plywood Case | |||
| Min. Order(sets) | 12 | |||
| Port | Shanghai/Qingdao | |||
| Delivery Time | 2 Weeks | |||
| Payment Terms | T/T | |||
| Warranty Time | 1 Years | |||
| Loading QTY | 20GP | 60sets | ||
| 40GP | 120sets | |||
| 40HQ | 140sets | |||

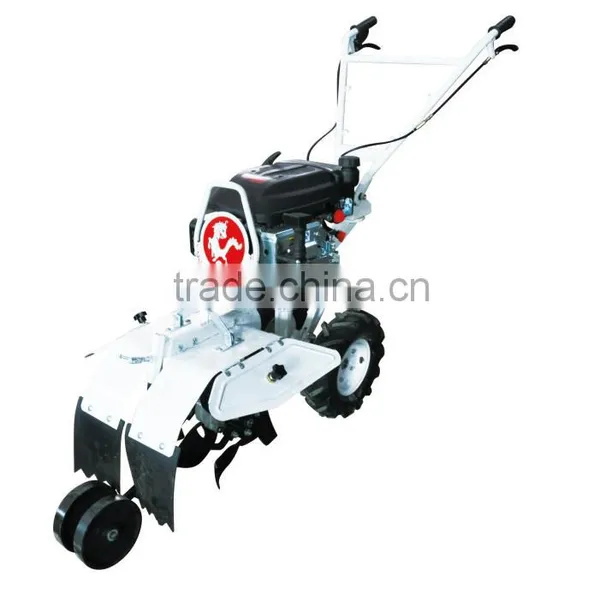

Products series

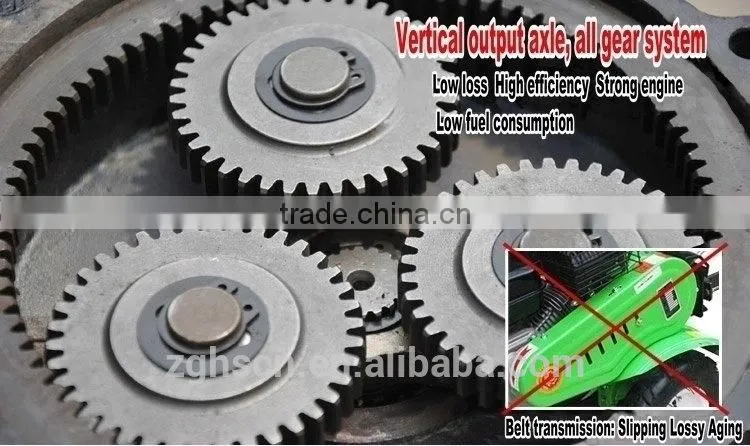

Machine Feature

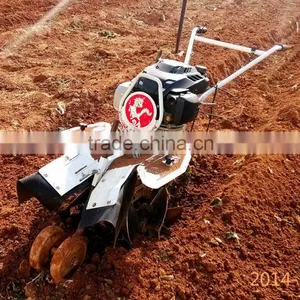

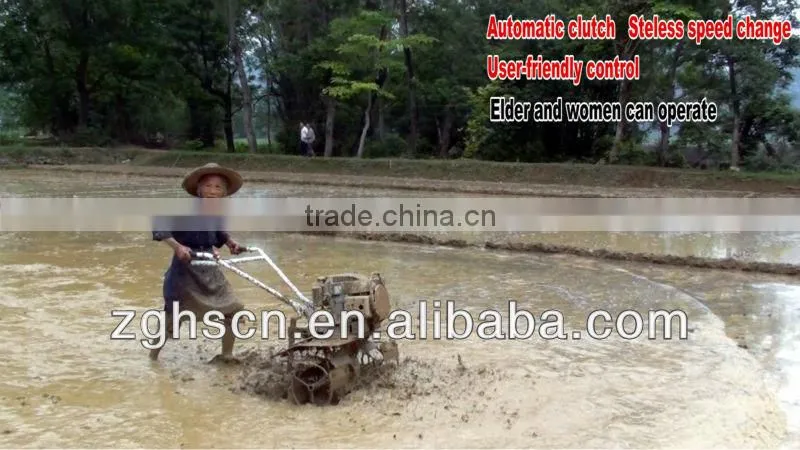

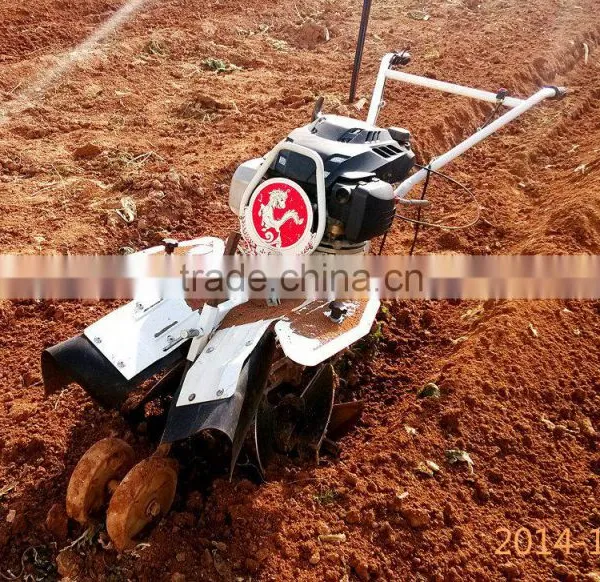

Working in the fields
Assembly Line
Packing
Contact us if you have any question
