2 Wheels Farming Tools Power Tiller Attachments Name Disk Harrow

2 Wheels Farming Tools Power Tiller Attachments Name Disk Harrow thumbnail-1
2 Wheels Farming Tools Power Tiller Attachments Name Disk Harrow thumbnail-2
2 Wheels Farming Tools Power Tiller Attachments Name Disk Harrow thumbnail-3
2 Wheels Farming Tools Power Tiller Attachments Name Disk Harrow thumbnail-4
2 Wheels Farming Tools Power Tiller Attachments Name Disk Harrow photo-1
2 Wheels Farming Tools Power Tiller Attachments Name Disk Harrow photo-2
2 Wheels Farming Tools Power Tiller Attachments Name Disk Harrow photo-3
2 Wheels Farming Tools Power Tiller Attachments Name Disk Harrow photo-4
US$ 12 - 400 MOQ: 12 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Farm Cultivator
Power Type:
Gasoline
Contact Supplier Request Quote Chat Now
Luoyang Dragon-Horse Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Farm Cultivator
Power Type Gasoline
Power(W) 4100
Certification ISO9001, CE,
Warranty 1 year
Use rotary tilling and land formation
Place of Origin Henan, China
Brand Name Tennma
Model Number 1WG4.1B
Weight 50KG/110 lbs
Dimension(L*W*H) 100*40*74cm/39.37*15.75*29.13in
After-sales Service Provided Engineers available to service machinery overseas



  names disk harrow 2 WD power tiller attachments spare parts for walking tractor modern farming tools



Main Parameter

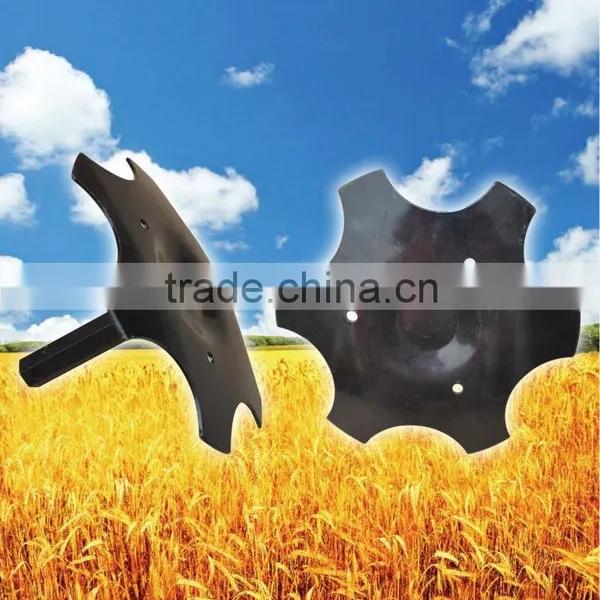

 Disk harrow application:  Keep balance and prevent earth  splash during tilling.



Specifications about 1WG4.1B power tiller



Model   1WG4.1 B(VG-L1)
Engine  Engine NO. Gasoline  1P70FA
Engine Type Single Cylinder
Air-Cooled
4-stroke
Vertical
Cylinder DIA*Stroke(in.) 3*2
Compression Ratio 8:1
Lubricating System Spray Lubrication
Fuel Tank Capacity(L) 2.5
Fuel Consumption(kg/kw.h) 0.8
Spark plug gap 0.70-0.80mm
Displacement(cc) 196cc
Max. Torque(N.m/3000rpm) 11
Cooling System Air Cooled
Max Power(kw/3600rpm) 4.1
Tiller Rated Power 4.1KW/6HP
Starting System Recoil Start
Transmission  All Gear Drive
Clutch Centrifugal Adhesion
Gear shifting 0,  1
Diameter of Cutters(in.) 11.8
Speed of Cutters(rpm) 150rev/min
180rev/min
Tilling Depth  10~18cm/3.94~7.08in
Tillling  Width 35~87cm/13.78~34.25in
Efficiency (acre/h) 1.1~1.3acre
Accessories 1 set of standard  rotary blade included
Weight Net/Gross Weight(kg) 50/55KG (110/121 lbs)
Others  Package Dimension(L*W*H) 58*48*71.5cm/22.83*18.9*28.15in
Packages Carton Box/ Plywood Case
Min. Order(sets) 12
Port Shanghai/Qingdao
Delivery Time 2 Weeks
Payment Terms T/T
Warranty Time 1 Years
Loading QTY 20GP 100sets
40GP 200sets
40HQ 300sets











 2 wheels Farming tools power tiller attachments name disk harrow2 wheels Farming tools power tiller attachments name disk harrow



 2 wheels Farming tools power tiller attachments name disk harrow



Products series

2 wheels Farming tools power tiller attachments name disk harrow





Machine Feature

2 wheels Farming tools power tiller attachments name disk harrow2 wheels Farming tools power tiller attachments name disk harrow

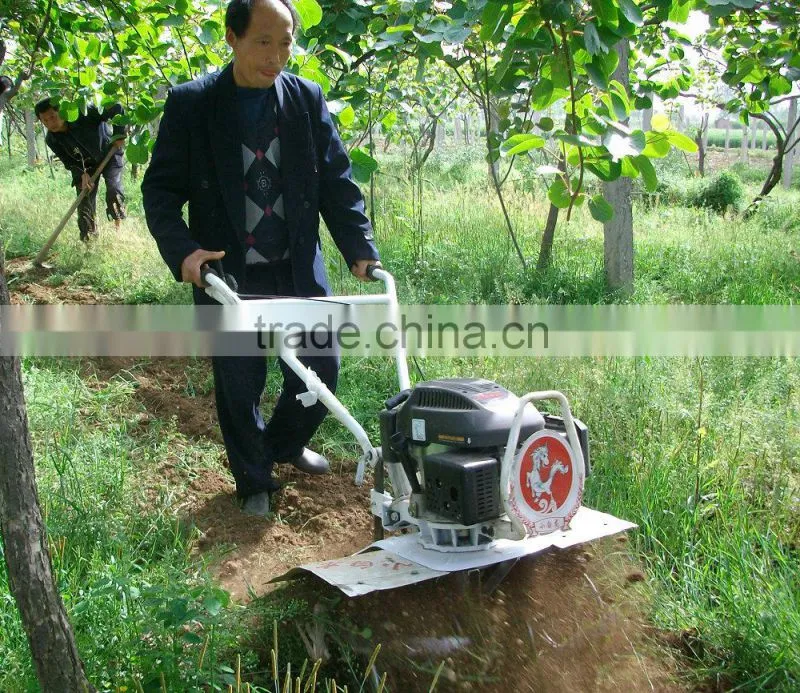

Working in the fields

2 wheels Farming tools power tiller attachments name disk harrow



Assembly Line

2 wheels Farming tools power tiller attachments name disk harrow





Packing

 2 wheels Farming tools power tiller attachments name disk harrow

Company Scenery

 2 wheels Farming tools power tiller attachments name disk harrow2 wheels Farming tools power tiller attachments name disk harrow

Contact us

2 wheels Farming tools power tiller attachments name disk harrow
