modern technique lc1-d25 ac contactor
- 100000 Piece / Pieces per Month
- ningbo/shanghai
You May Like
Product Details
Place of Origin | Zhejiang, China | Brand Name | Kayal | |
Model Number | cjx2/lc1-d | Electricity Type | AC | |
Number of Pole | 3 | Phase | 3 | |
Main Circuit Rating Voltage | Other, 24v-660v | Main Circuit Rating Current | Other, 25A |
Product Description

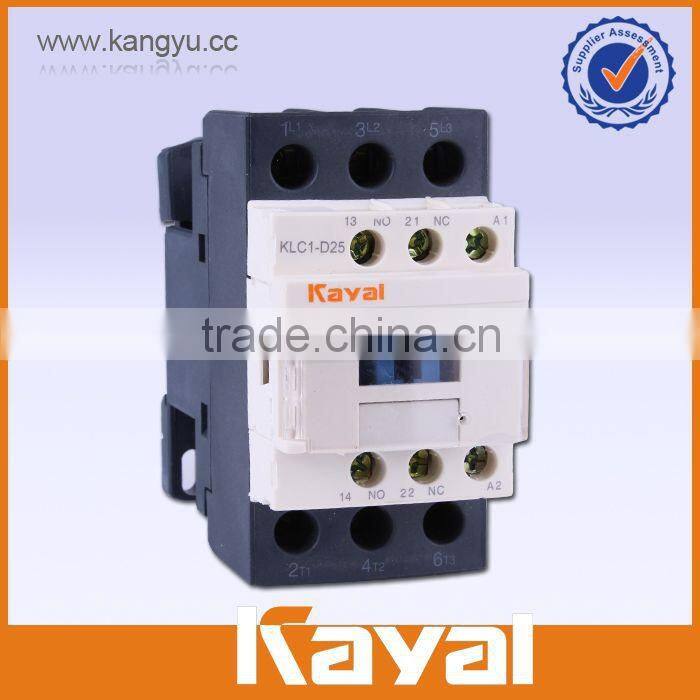

modern technique lc1-d25 ac contactor
1.Application 9A AC contactor
LC1/CJX2 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz
or 60Hz, rated current up to 95A, for making, breaking,frequently starting&machine interlocking device etc, it becomes the delay contactor,mechanical interlocking contactor ,star-deltastarter. With the thermal relay, it is combined into the electromagnetic starter.The contactor is produced according to IEC9470,VDE0660 &
BS5452.
2.Specifications
Type | LC1-D09 | LC1-D12 | LC1-D18 | LC1-D25 | LC1-D32 | LC1-D40 | LC1-D50 | LC1-D65 | LC1-D80 | LC1-D95 | |
Rated workingcurrent (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | |
Standardpower ratingsof 3-phase motors 50/60Hz incategory AC-3 | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 | |
500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 | |
660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 55 | |
Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | |
Electrical life | AC3 (x104) | 100 | 100 | 100 | 100 | 80 | 80 | 60 | 60 | 60 | 60 |
AC4 (x104) | 20 | 20 | 20 | 20 | 20 | 15 | 15 | 15 | 10 | 10 | |
Mechanical life (x104) | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 800 | 800 | 600 | 600 | |
Number of the contacts | 3P+NO | 3P+NC+NO | |||||||||
3P+NC |
Standard Control Circuit Voltage
Volts | 24 | 42 | 48 | 110 | 220 | 230 | 240 | 380 | 400 | 415 | 440 | 500 | 600 |
50Hz | B5 | D5 | E5 | F5 | M5 | P5 | U5 | Q5 | V5 | N5 | R5 | S5 | Y5 |
60Hz | B6 | D6 | E6 | F6 | M6 | - | U6 | Q6 | - | - | R6 | - | - |
50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 | - | - |

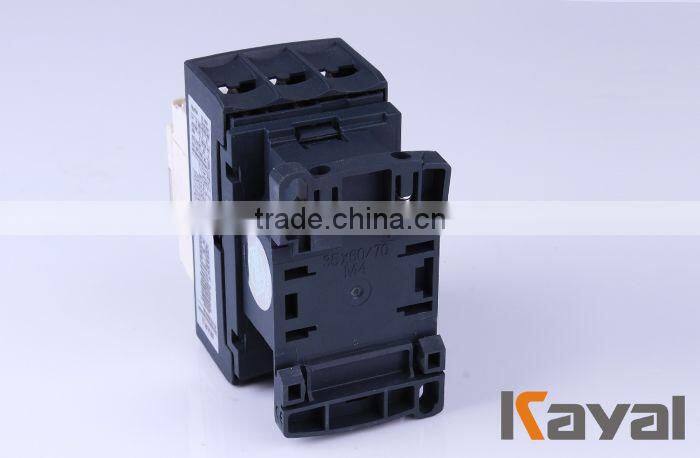

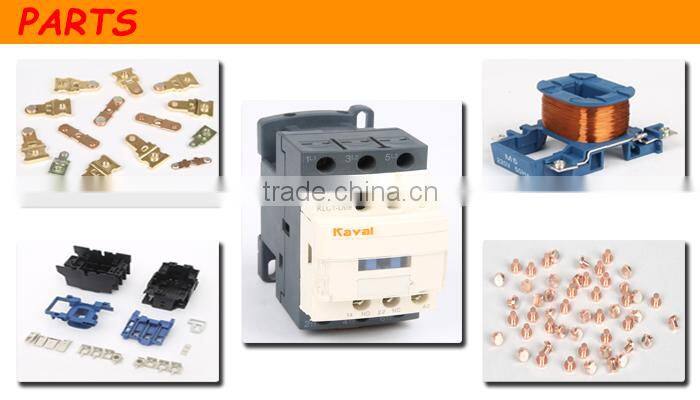

3.Pictures

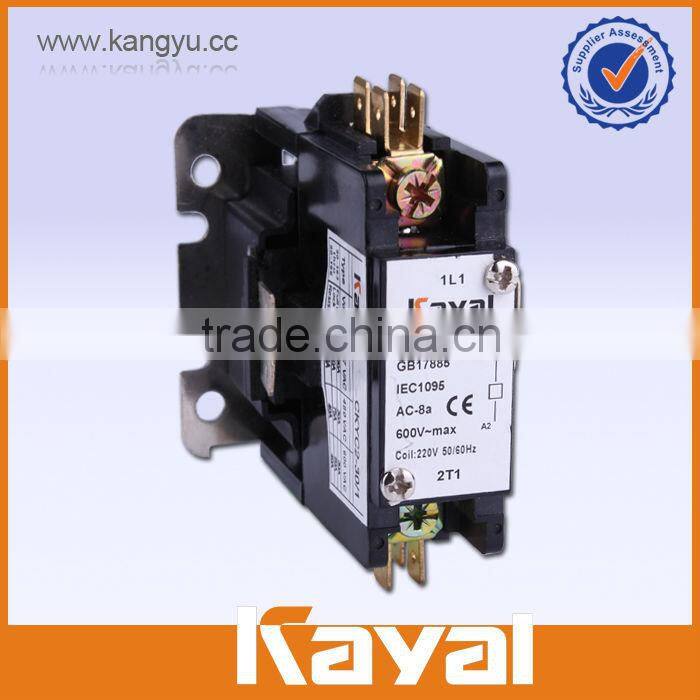

4.Other products
Our company is specializing in manufacturing low voltage electrical products such as AC contactors, definite purpose AC contactors, circuit breakers, earth leakage circuit breakers, distribution boxes, illumination
equipment, and distribution switches. With advanced technology, we have gained a series of approvals, such asISO9001:2000, CE, CB, CCC and PICC, and especially we got UL certificate for definite purpose AC contactors.We always consider quality and service first. Our policy is "Quality First; Improve Technology; Expecting Future".
Our tenet is "Product & Brand Competition; Quality Serve the world".
Cooperate with us, we will be honored and you will benefit from:
1.- Your client satisfied on the right schedule and quality;
2.- Your can get good reputation from your market and obtain more orders;
3.- Our professional service before and after sale;
4.- The reasonable price; 9A CE AC contactor
5.- Any questions from you are welcome and will be replied in 24 hours.
- Package : polybag and carton box export standard package or designed by yourself
- Delivery date :within 3 weeks after get payment 9A CE AC contactor
- Delivery mode: Ocean shipping, Air transport, Express delivery/( Choose by the customer)
- Payment terms: T/T in advance L/C at sight. Escrow
Q 1.How about your experience?
A.We have our own professional factory and R&D department & more than 13 years producing experience
Q 2. What's your advantage ?
A. We have complete set of machines such as ,injection molding machines and punchers,
with these,we can make by ourselves from the inside parts to outside.
It greatly increases the efficiency and saves the cost.
Q 3. How's the delivery time ?
A. usually it will take about 15-30 days for production
Q 4. Tell me the standard of package?
A. For inner box and master carton are made as per international standards,
and we can make special design for you if need.
Also if necessary, will be packed in pallet to avoid any damage.
Q 5.Will be any warranty for your item ?
A. We offer one year warranty for our products. Please feel assured.
Q 6.Do you accept OEM business ?
We accept OEM authorization.
