SPECIFICATION
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| INVERTER DC AIR PLASMA CUTTER |
| •High cutting speed and low cost. |
| •Small and smooth cutting seam, little transmutation. |
| •Current range from 40A to 200A for cutting metals with different thickness. |
| INVERTER DC AIR PLASMA CUTTER |
| IGBT TYPE |
| •Touch start system-smooth arc-striking with HF control |
| •Compact and portable, high efficiency and energy saving |
| •High cutting speed and low cost |
| •Automatic post-flow stop for rapid re-striking |
| •Adjustable output current to satisfy the cutting demands based on different kinds of material and thickness of working plate |
| •Small and smooth cutting seam, little transmutation |
| •Built-in overheat protection, over voltage protection under voltage protection |
| •Energy Saving-Compared with the traditional cutting machine more efficient |
| Model | CUT-40 | CUT-60 | CUT-80 | |
| Rated input voltage (V) | 1PH AC220±15% | 3PH AC380±15% | ||
| Rated input power (KVA) | 5.6 | 7.8 | 11.2 | |
| Rated input current (A) | 25.4 | 12 | 17 | |
| Rated output | 98V/40A | 104V/60A | 112V/80A | |
| Output current (A) | 20-40 | 20-60 | 30-80 | |
| No-load voltage (V) | 240 | 260 | 300 | |
| Rated duty cycle (%) (40°C 10min) | 60% | 40A | 60A | 80A |
| 100% | 31A | 46A | 62A | |
| Efficiency (%) | 70 | 80 | 80 | |
| Protection grade | IP21 | IP21 | IP21 | |
| Insulation grade | F | F | F | |
| Method of arc start | contact | contact | un contact | |
| Net weight (Kg) | 6.9 | 16.9 | 22 | |
| Gross weight (Kg) | 10 | 20.3 | 27 | |
| Dimension of machine (mm) | 370×160×290 | 500×210×340 | 530×270×465 | |
| Dimension of package (mm) | 440×230×390 | 570×260×460 | 595×320×525 | |

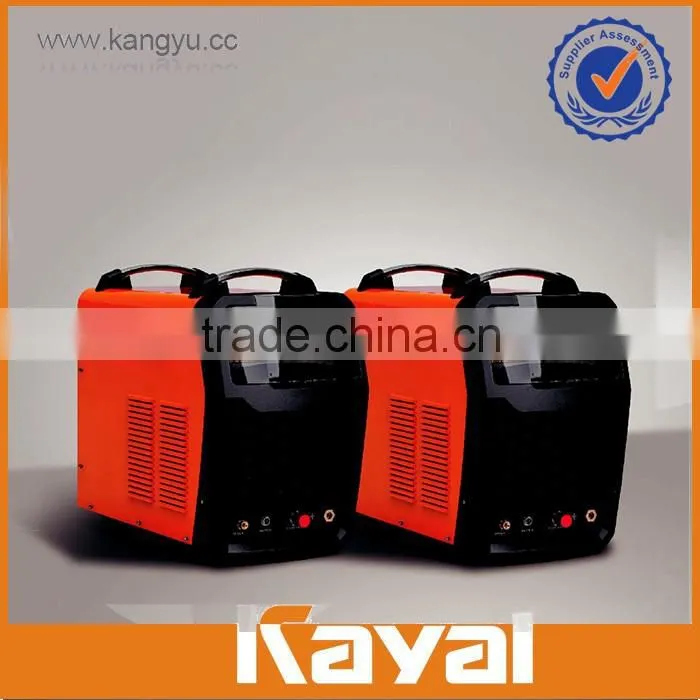

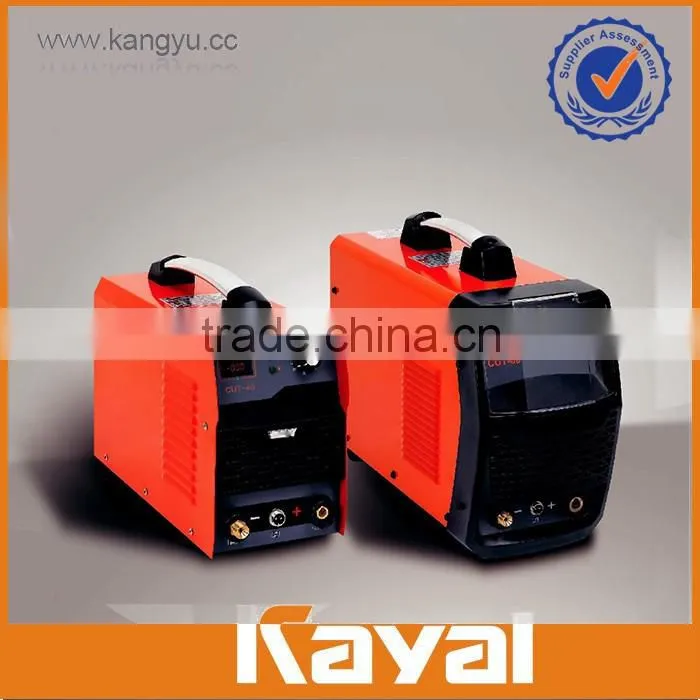

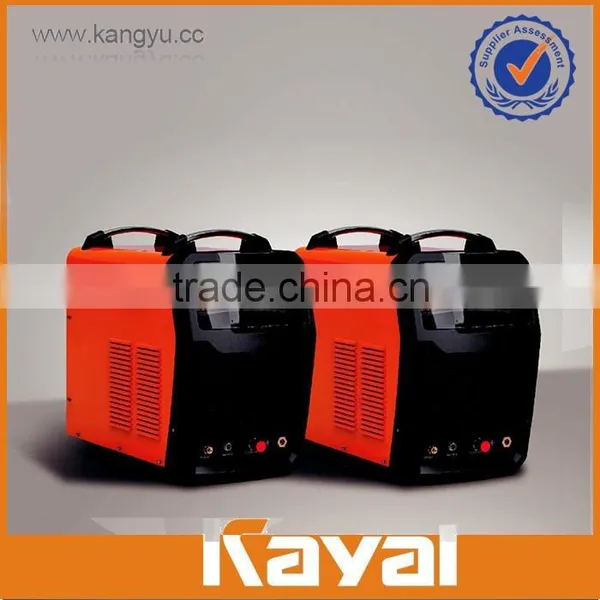

PRODUCT PICTURE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| INVERTER DC AIR PLASMA CUTTER |
| IGBT TYPE |
| •Adopt advanced IGBT technology of the core inverter device |
| •Untouch start system-smooth arc-striking with HF control |
| •Continuous adjustment of cutting current |
| •High duty cycle result in less power consumption |
| •Built-in overheat protection, over voltage protection under voltage protection and lack of compressed air pressure protection |
| •Adjustable output current to satisfy the cutting demands based on different kinds of material and thickness of working plate |
| •Apply to vehicles, shipbuilding, boiler, chemical, food, medicine, machinery processing etc |
| •Manual cutting and automatic cutting (CNC) both are available |
| Model | CUT-100 | CUT-120 | CUT-160 | CUT-200 | |
| Rated input voltage (V) | 3PH AC380±15% | ||||
| Rated input power (KVA) | 15 | 19 | 28.8 | 37.5 | |
| Rated input current (A) | 23 | 29 | 44 | 57 | |
| Rated output | 120V/100A | 128V/120A | 144V/160A | 150V/200A | |
| Output current (A) | 30-100 | 30-120 | 40-160 | 40-200 | |
| No-load voltage (V) | 380 | 310 | 380 | 380 | |
| Rated duty cycle (%) (40°C 10min) | 60% | 100A | 120A | 160A(100%) | 200A(100%) |
| 100% | 77A | 93A | 160A | 200A | |
| Efficiency (%) | 80 | 80 | 80 | 80 | |
| Protection grade | IP21 | IP21 | IP21 | IP21 | |
| Insulation grade | F | F | F | F | |
| Method of arc start | un contact | un contact | un contact | un contact | |
| Net weight (Kg) | 35.7 | 36.3 | 57 | 59 | |
| Gross weight (Kg) | 41.6 | 44.2 | 74 | 77 | |
| Dimension of machine (mm) | 650×340×590 | 650×340×590 | 700×360×638 | 700×360×638 | |
| Dimension of package (mm) | 740×400×630 | 740×600×630 | 760×480×710 | 760×480×710 | |
|
Established in 2002, Wenzhou Kangyu Electrical CO.,LTD. is a specialized manufacturer of definite purpose contactors,AC/DC magnetic contactors,circuit breakers. Located in Xinguang industry zone Liushi town Wenzhou city, we enjoy convenient transportation. Our company occupies an area of 30000 and has advanced facilities of injection molding machine,punching machine,monitoring station and so on. Our annual production capacity is 50,000,000 pieces. With export license, we export products to China,America,Australia, Europe,South America and Southeast Asia. Our products gain wide praises at home and abroad. Our company has won ISO9001:2008,CUL,CB,KEMA,CE,CCC,Rohs and PICC. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is “Quality First; Improve Technology; Expecting Future”. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together. |
FAQ
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or
other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
