SPECIFICATION
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| INVERTER DC TIG/MMA WELDING MACHINE |
| •Latest plastic panel design, exclusive and attractive appearance as well as the better protection. |
| •Transparent shielding cover protect the machine from dust, moisture, corrosion, make the machine work more reliably in bad working environment. |
| •Protective circuit design give safe operation. |
| •High duty cycle, small size, light weight. |
| INVERTER DC TIG/MMA WELDING MACHINE |
| IGBT TYPE |
| TIG-200/250 |
| •Advanced IGBT inverter technology delivers superior TIG performance |
| •Support TIG/MMA function |
| •With HF TIG arc starting, allows to strike the arc easily with high frequency and make it easy to establish an arc under a variety of conditions |
| •Compact and portable, high efficiency and energy saving |
| •Easy arc starting, small splashing, low noise, great penetration and aesthetic appearance of welding seam |
| •Overheat over current, under voltage protections are available |
| •Energy saving- compared with the traditional TIG machine more efficient |
| TIG-400P/500P |
| •Advanced IGBT inverter technology delivers superior TIG performance |
| •Multifunction: DC MMA, DC TIG, Pulse TIG |
| •Detailed adjustment parameters lead to more accurate performance such as pre-flow, gas delay, current slow up, current decay, frequency ratio and so on |
| •2T/4T Function selectable on the front panel |
| •Remote control function is available, remotely controlling your current level with a foot pedal |
| •Apply to many different materials of metal, such as carbon steel, stainless steel, alloy steel, copper, silver, titanium and so on |
| Model | TIG-200 | TIG-250 | TIG-400P | TIG-500P | |
| Rated input voltage (V) | 1PH AC220±15% | 3PH AC380±15% | |||
| Rated input power (KVA) | 4.4 | 6.3 | 13 | 18.8 | |
| Rated input current (A) | 20 | 9.6 | 20 | 29 | |
| Rated output | 17.2V/180A | 20V/250A | 26V/400A | 30V/500A | |
| Output current (A) | TIG:10-180 | TIG:10-250 | TIG:5-400 | TIG:5-500 | |
| MMA:20-160 | MMA:20-220 | MMA:20-400 | MMA:20-500 | ||
| No-load voltage (V) | 65±5 | 60±5 | 60±5 | 60±5 | |
| Rated duty cycle (%) (40°C 10min) | 40% | 180A | 250A | 400A | 500A |
| 100% | 113A | 158A | 252A | 316A | |
| Efficiency (%) | 70 | 80 | 80 | 80 | |
| Protection grade | IP21 | IP21 | IP21 | IP21 | |
| Insulation grade | F | F | F | F | |
| Net weight (Kg) | 6.3 | 13 | 32 | 34 | |
| Gross weight (Kg) | 9 | 16.5 | 38.6 | 39 | |
| Dimension of machine (mm) | 370×160×290 | 500×210×340 | 645×323×573 | 645×323×573 | |
| Dimension of package (mm) | 440×230×390 | 570×260×460 | 740×400×630 | 740×400×630 | |

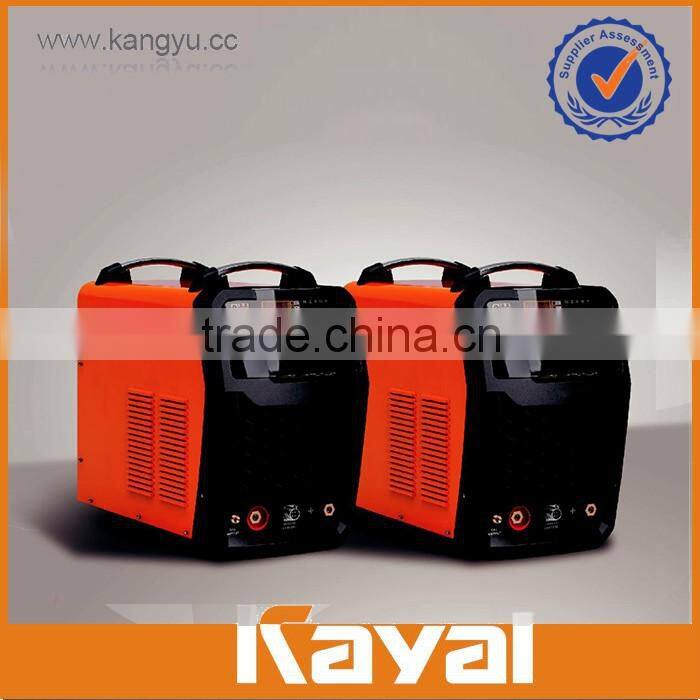

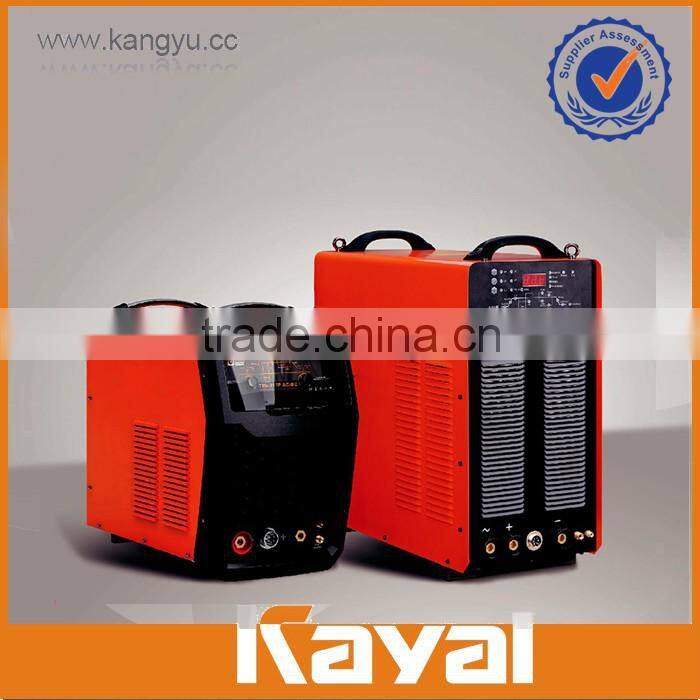

PRODUCT PICTURE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| • Advanced IGBT inverter technology delivers superior TIG performance |
| • Multifunction: MMA, DC TIG, AC TIG, Pulse TIG |
| • AC square wave is especially suitable for welding aluminum and its alloy |
| • DC square wave is suitable for welding stainless steel, alloy steel, carbon steel, copper and other non-ferrous metals |
| • 2T/4T Function selectable on the front panel |
| • Foot pedal to control current remotely is optional |
| • Digital instrument for the welding current |
| • Accurate adjustment can achieve great penetration, aesthetic appearance of weld seam and low consumption of electrode |
| Model | TIG-200P ACDC | TIG-315P ACDC | TIG-500P ACDC | |
| Rated input voltage (V) | 1PH AC220V±15% | 3PH AC380V±15% | ||
| Rated input power (KVA) | 5.2 | 9 | 19 | |
| Rated input current (A) | 23.5 | 13.6 | 28.7 | |
| Output current (A) | 5-200 | 5-315 | 20-500 | |
| Drive current for MMA (A) | 10-100 | 10-200 | 10-200 | |
| Base current (A) | 5-200 | 5-315 | 20-500 | |
| Start arc current (A) | 20-160 | 20-160 | 20-160 | |
| Duty ratio (%) | 1-100 | 1-100 | 1-100 | |
| AC bias ratio (%) | -80 | -80 | -80 | |
| Plus frequency (Hz) | 0.2-20 | 0.2-20 | 0.2-20 | |
| AC frequency (Hz) | 20-100 | 20-200 | 20-100 | |
| Pre-flow time (s) | 0.1-15 | 0.1-15 | 0.1-15 | |
| Gas delay time (s) | 0.1-15 | 0.1-15 | 0.1-15 | |
| Current slow up time (s) | 0.1-10 | 0.1-10 | 0.1-10 | |
| Current decay time (s) | 0.1-15 | 0.1-15 | 0.1-15 | |
| Cleaning ratio (%) | -80 | -80 | -80 | |
| No-load voltage (V) | 65±5 | 74±5 | 79±5 | |
| Rated duty cycle (%) (40°C 10min) | 60% | 200A(40%) | 315A | 500A |
| 100% | 126A | 244A | 387A | |
| Efficiency(%) | 70 | 80 | 80 | |
| Protection grade | IP21 | IP21 | IP21 | |
| Insulation grade | F | F | F | |
| Net weight (Kg) | 20 | 47.2 | 75 | |
| Gross weight (Kg) | 24 | 55 | 85 | |
| Dimension of machine (mm) | 500×210×340 | 642×323×573 | 777×380×830 | |
| Dimension of package (mm) | 570×260×460 | 740×400×630 | 820×400×810 | |
|
Established in 2002, Wenzhou Kangyu Electrical CO.,LTD. is a specialized manufacturer of definite purpose contactors,AC/DC magnetic contactors,circuit breakers. Located in Xinguang industry zone Liushi town Wenzhou city, we enjoy convenient transportation. Our company occupies an area of 30000 and has advanced facilities of injection molding machine,punching machine,monitoring station and so on. Our annual production capacity is 50,000,000 pieces. With export license, we export products to China,America,Australia, Europe,South America and Southeast Asia. Our products gain wide praises at home and abroad. Our company has won ISO9001:2008,CUL,CB,KEMA,CE,CCC,Rohs and PICC. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is “Quality First; Improve Technology; Expecting Future”. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together. |
FAQ
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or
other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
