Help CenterRV Series Auto Ring Terminal With CE ROHS
Related Products
-
RV Series Power Ring Terminal With CE ROHSUS$ 0.1 - 50MOQ: 500 Bags -
Nylon ,PVC Insulated Crimp Ring Terminal With CE ROHSUS$ 0.1 - 50MOQ: 500 Bags
-
RV Ground Ring Terminal With CE ROHSUS$ 0.1 - 50MOQ: 500 Bags
-
RV Series Ring Cable TerminalUS$ 0.1 - 50MOQ: 500 Bags
-
ROHS CE Heat Shrink Ring TerminalUS$ 0.1 - 50MOQ: 500 Bags
Specifications
auto ring terminal1.auto terminal lug
2.CE,SGS,ROHS
3.Full ranges of ring cable shape
4.Sample free

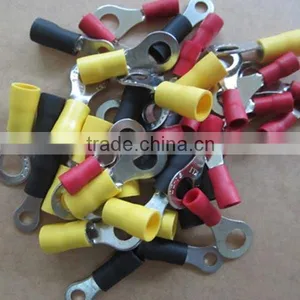

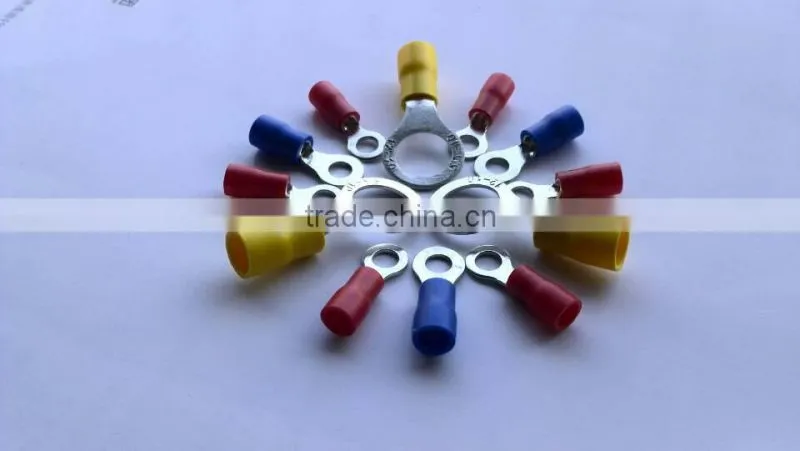

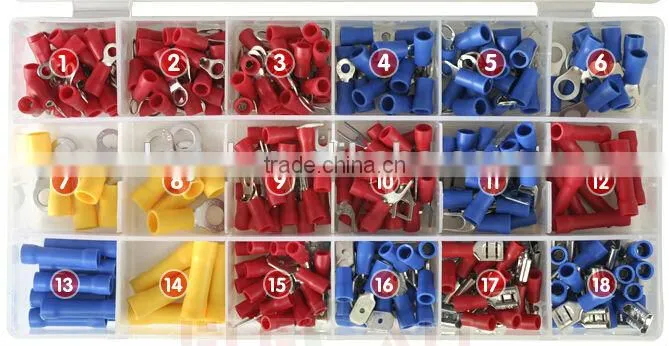

RV series auto ring terminal with CE ROHS

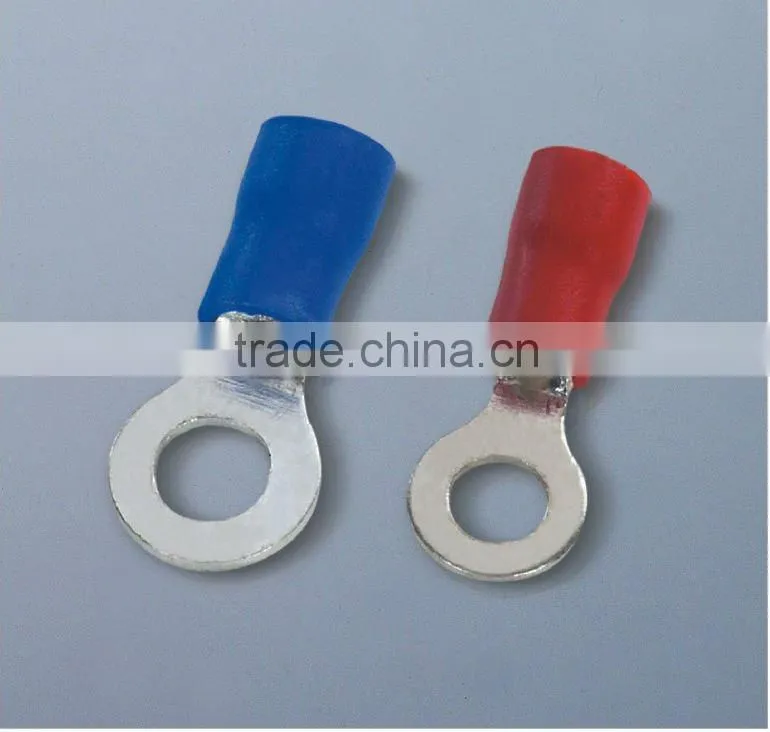

Insulated auto ring terminal
1.brass insulated ring shape cable terminal lug
2.CE,SGS,ROHS,TUV
3.Full ranges of terminals for selection
4.Sample free
lor:blue red black yellow white
Insulated auto Ring Terminal
1.Material: Al,Steel,Brass,PB,copper
2.Surface Treatment: Tin-Plated ,Gold Plated or As your customer request
3.Provide accordingly with our own made connectors
4.Package: Standard Export Carton,Wood Carton, or customize
5.Application: Be crimped with cable and suitable for electric machines,home appliance and automobiles
6.Great Capability to Open Mold
7. We have various different shape products ,please be welcome to contact us
we also specialized in varieties of terminals or connector,in stock,item name: cable tie; joint; brass auto ring terminal lug type;copper auto ring terminal lug type, terminal crimping tool lug; Gland;terminal block; ;furcate terminal;ring terminal;naked terminal;pre insulated terminal;insert needle naked terminal;middle joint;naked terminal in the middle;male/female terminal.etc,if you have any need,please dont hesitate to contact me.
insulated auto ring terminal lug type's structure drawing
copper insulated auto ring terminal lug type ring cable terminal lugs red | |||||||||
| lead section: 0.5~1.5mm2(A.W.G: 22~16) Imax=19A material: pure copper thickness:0.75mm | |||||||||
| Item NO | USA BOLT NO | BOLT dia.d2(mm) | dimension(mm) | color | |||||
| B | L | F | H | Dφ | |||||
| RV 1.25-3 | #4 | 3.2 | 5.7 | 17.8 | 4.95 | 10 | 4.3 | red | |
| RVS 1.25-3.5 | #6 | 3.7 | 5.7 | 17.8 | 4.95 | ||||
| RVM 1.25-3.5 | #6 | 3.7 | 6.6 | 20.1 | 6.3 | ||||
| RVL 1.25-3.5 | #6 | 4.3 | 8 | 21.5 | 7 | ||||
| RVS 1.25-4 | #8 | 4.3 | 6.6 | 20.1 | 6.3 | ||||
| RVL 1.25-4 | #8 | 4.3 | 8 | 21.5 | 7 | ||||
| RV 1.25-5 | #10 | 5.3 | 8 | 21.5 | 7 | ||||
| RVL 1.25-5 | #10 | 5.3 | 9.8 | 23 | 8.5 | ||||
| RVS 1.25-6 | 1/4 | 6.4 | 9.8 | 23 | 8.5 | ||||
| RV 1.25-6 | 1/4 | 6.4 | 11.6 | 27.5 | 11.1 | ||||
| RV 1.25-8 | 5/16 | 8.1 | 11.6 | 27.5 | 11.1 | ||||
| RV 1.25-10 | 3/8 | 10.5 | 13.6 | 31.6 | 13.9 | ||||
| RV 1.25-12 | 1/2 | 13 | 19.2 | 36 | 16.5 | ||||
outdoor cable termination

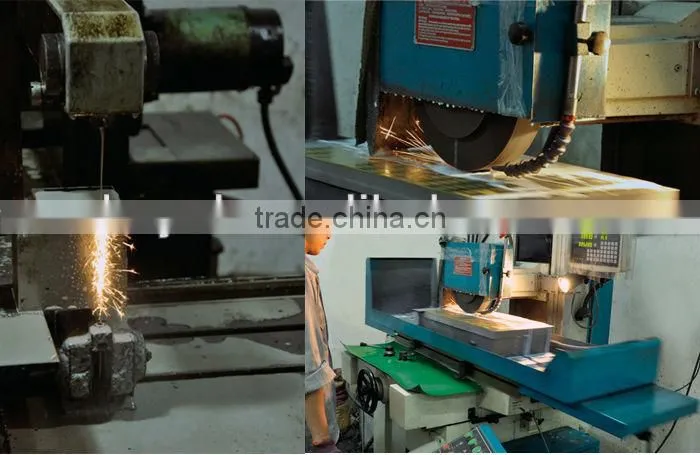

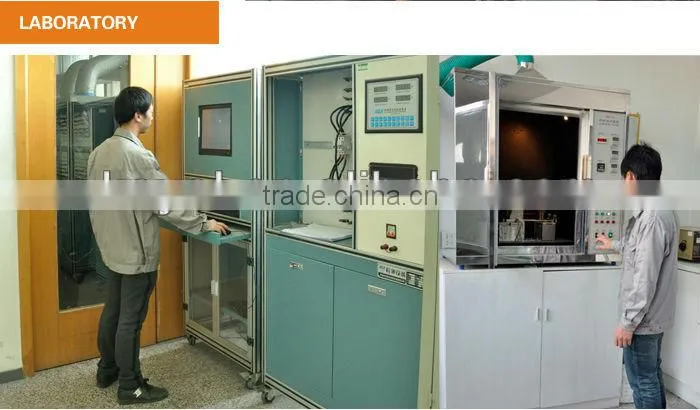

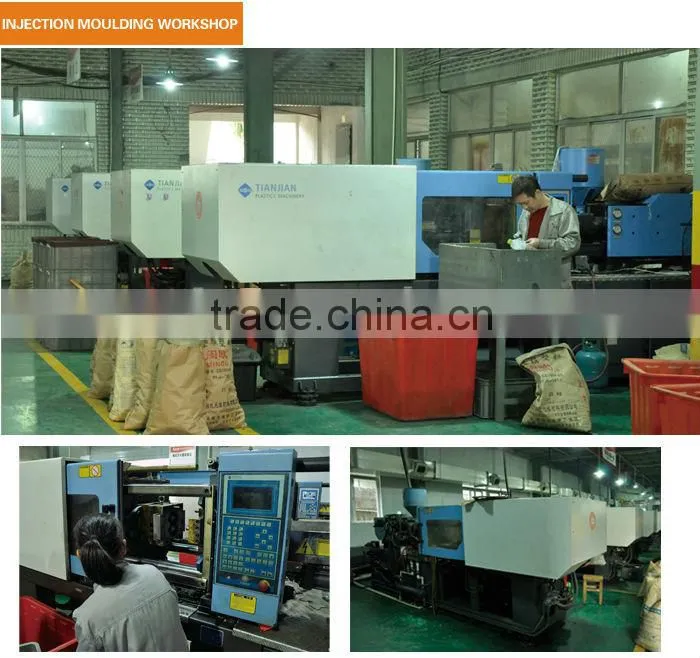

ABOUT FACTORY

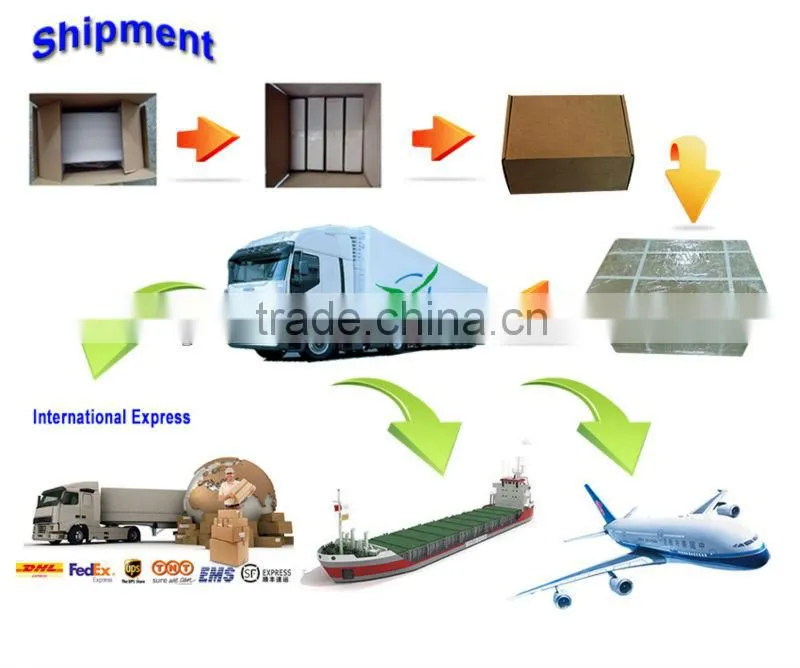

About shipping of AUTO RING TERMINAL
| Shipping Terms &Conditions | ||
|
* FAST SHIPPING from our Wenzhou China Factory! * Item shipped in 5-15 working days after payment is received depends on the quantity of the order. * Item shipped by UPS,FedEX,DHL and others, depending on size and weight of total order. * Item only shipped to address listed on the invoice; Not responsible for shipping to wrong address. * Tracking number will be sent to you as soon as we ship the goods. |
