Best Quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma Rccb

Best Quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma Rccb thumbnail-1
Best Quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma Rccb thumbnail-2
Best Quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma Rccb thumbnail-3
Best Quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma Rccb thumbnail-4
Best Quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma Rccb photo-1
Best Quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma Rccb photo-2
Best Quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma Rccb photo-3
Best Quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma Rccb photo-4
US$ 4.5 - 6.2 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
kangyu,kayal
Model Number:
CKYL1-63
Contact Supplier Request Quote Chat Now
Wenzhou Kangyu Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name kangyu,kayal
Model Number CKYL1-63
Type Earth Leakage
Poles Number Other, 1.2.3.4p



Best quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccb

Best quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccb

 Magnetic Starter    Circuit Breaker

ELCB RCCB

 Relay               AC contactor



Product Description



APPLICATION

   CKYL1-63 RCCB is in conformity with the standard of IEC61008. The RCCB can cut off the

fault circuit immediately on the occasion of shock hazard or earth leakage of trunk, thus, it is

suitable to avoid the shock hazard and fire caused by earth leakage.
    The RCCB is mainly suitable for use in varieties of plants and enterprises, building

construction 1 phase 230V and 3 phase 400V 50/60Hz. RCCB is not suitable for use in DC

pulse system.



SPECIFICATIONS



Product name 30ma rccb 4.5ka 6ka elcb 4 pole earth leakage circuit breaker
Number of Poles 1P+N,3P+N
Rated Current(A) 16,20,25,40,50,63
Rated Residual Operating Current(IΔn)(mA) 30,100,300,500
Rated Voltage(V) AC 230/240
AC400/415
Residual Operating Current Scope 0.5IΔn~IΔn
Residual Current Off-time ≤0.3S
Short Circuit Capacity(Icu) 6000A
Endurance 4000
Protection Degree IP20





NORMAL OPERATION AND MOUNTING REQUIREMENT

  • Circumstance temperature-5°C~+40 ,average temperature not exceeding 35 .
  • Altitude above sea level less than 2000m.
  • Humidity not exceeding 50% at 40°Cand not exceeding 90% at 25°C.
  • Installation class Ⅱ or Ⅲ.
  • Pollution class Ⅱ.
  • Installation method DIN Rail mounting type.
  • The external magnetism shall not be more than 5 times of terrestrial one.
  • Product shall be installed vertically at the place where there shall be no severe impact and
    vibration. The product is switched on when the handle is at upper position.

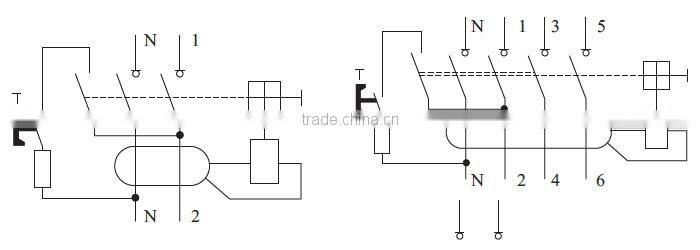

  OPERATION PRINCIPLE



Best quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccb

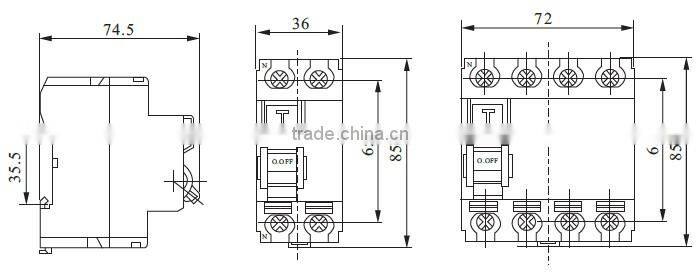

OVERALL AND MOUNTING DIMENSIONS(Unit:mm)





Best quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccb

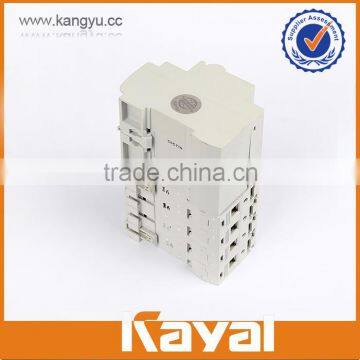

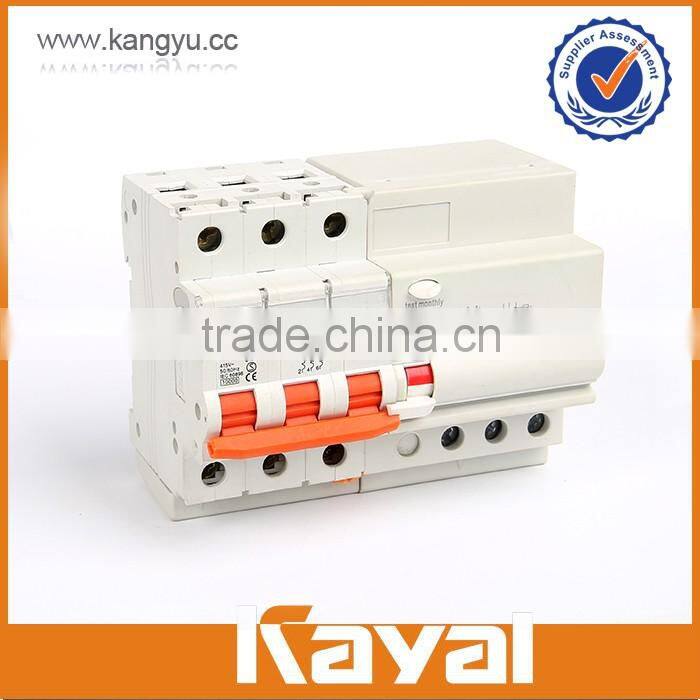

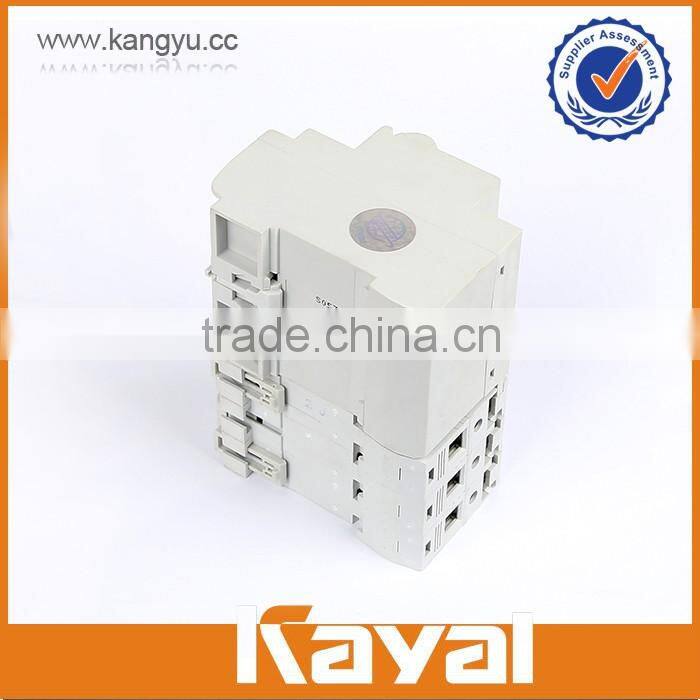

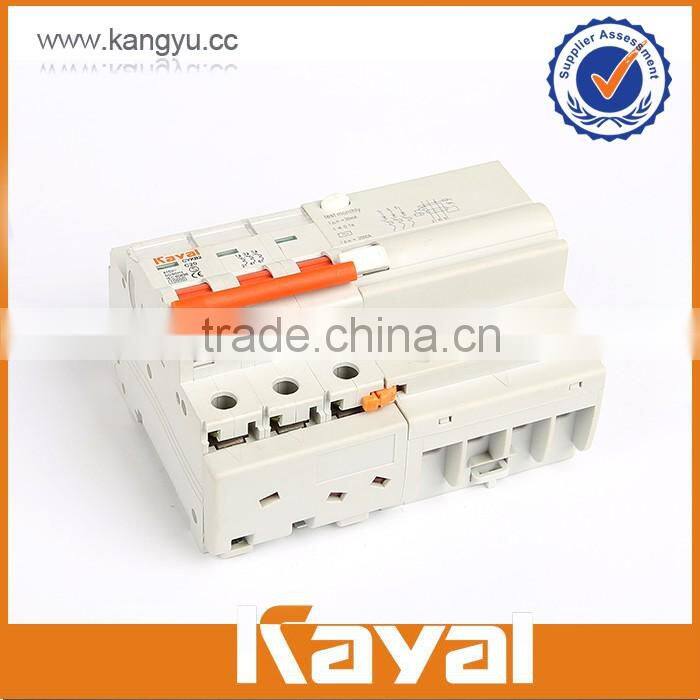

PRODUCT PICTURE

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Best quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccbBest quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccbBest quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccbBest quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccb



Best quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccb

Best quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccb

Packaging & Shipping



Best quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccb
Best quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccb

Best quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccb









Company Information



     Established in 2002, Wenzhou Kangyu Electrical CO.,LTD. is a specialized manufacturer

of definite purpose contactors,AC/DC magnetic contactors,circuit breakers. Located in

Xinguang industry zone Liushi town Wenzhou city, we enjoy convenient transportation.

Our company occupies an area of 30000 and has advanced facilities of  injection molding

machine,punching machine,monitoring station and so on. Our annual production capacity

is 50,000,000 pieces. With export license, we export products to China,America,Australia,

Europe,South America and Southeast Asia. Our products gain wide praises at home and

abroad. Our company has won ISO9001:2008,CUL,CB,KEMA,CE,CCC,Rohs and PICC.

Strict quality control is performed in every procedure from material sourcing, processing

and testing to packing. Our tenet is “Quality First; Improve Technology; Expecting Future”.

We warmly welcome customers from at home and abroad to establish cooperation and

create a bright future with us together.

 Best quality 10, 30, 100, 300, 500 ma 40a 3p+n 30ma rccb

FAQ



FAQ:

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.

Q4.Could you offer Form A or C/O ?
A. It's totally not a problem.

We can prepare relative documents to forgin affairs office or other office  to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
