Specifications
self-locking nylon cable tie1.material:slef-locking nylon 66,94v-2
2.cable tie with CE
3.ten year experience manufacturing
self-locking plastic cable ties nylon 66 cable ties ,high temperature resistant nylon cable tie
Description of self-locking nylon cable ties
A cable tie, also known as a zip tie or tie-wrap, is a type of fastener, especially for binding several electronic cables or wires together and to organize cables and wires.
In its common form, the nylon cable tie consists of a tape section with triangular teeth that slope in one direction. The head of the cable tie has a slot with a flexible pawl that rides up the slope of these teeth
when the tape is inserted. The pawl engages the backside of these
Self-locking nylon 66 cable tie
Self-Locking Nylon 66 Plastic Cable Ties (ISO 9001,ISO 14001)
1.Material:Nylon 66 ,94V-2.
2.Temp Resistance:-30 centigrade to 80 centigrade ;short time 140 centigrade.
3.Color:Natural(or white,standard color),UV black and other colors are available as requested.
4.Feature:Heat-resisting,and erosion control,insulate well and not apt to age.
5.Package:As per customer's requirement.
6.Ideal Applications: Color coding,Identification,Packaging Continuity, and Bundling Aesthetics.
7.Application:Widely used to bundle cable and wire or other things in the industry of electrical &electronic,lighting,hardware,pharmaceutical,chemical,computer etc.It's easy to use.

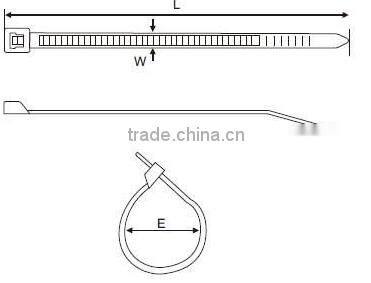

8.Specifications of Self-Locking Cable Ties:
| self-locking nylon 66 cable tie plastic cable tie supplier for 10 years | |||||||
| ITEM NO | LENGTH(L) | WIDTH(W) | BUNDLE DIAMETER(E) | TENSILE STRENGTH | |||
| INCH | MM | MM | MM | LBS | KGS | ||
| 2.5×60 | 2.4" | 60 | 2.5 | 2-11 | 18 | 8 | |
| 2.5*80 | 3.2" | 80 | 2-16 | ||||
| 2.5*100 | 4.0" | 100 | 2-22 | ||||
| 2.5*120 | 4.7" | 120 | 2-30 | ||||
| 2.5*150 | 6.0" | 150 | 2-35 | ||||
| 2.5*160 | 6.3" | 160 | 2-40 | ||||
| 2.5*200 | 8.0" | 200 | 3-50 | ||||
| 3.6*140 | 5.5" | 140 | 3.6 | 3-33 | 40 | 18 | |
| 3.6*150 | 6.0" | 150 | 3-35 | ||||
| 3.6*280 | 7.1" | 180 | 3-42 | ||||
| 3.6*200 | 8.0" | 200 | 3-50 | ||||
| 3.6*250 | 10.0" | 250 | 3-65 | ||||
| 3.6*280 | 11.0" | 280 | 3-70 | ||||
| 3.6*300 | 12.0" | 300 | 3-80 | ||||
| 3.6*370 | 14.6" | 370 | 3-105 | ||||
| 4.8*120 | 4.7" | 120 | 4.8 | 3-30 | 50 | 22 | |
| 4.8*160 | 6.3" | 160 | 3-40 | ||||
| 4.8*180 | 7.1" | 180 | 3-42 | ||||
| 4.8*190 | 7.5" | 190 | 3-46 | ||||
| 4.8*200 | 8.0" | 200 | 3-50 | ||||
| 4.8*250 | 10.0" | 250 | 3-65 | ||||
| 4.8*280 | 11.0" | 280 | 3-70 | ||||
| 4.8*300 | 12.0" | 300 | 3-80 | ||||
| 4.8*350 | 14.0" | 350 | 3-90 | ||||
| 4.8*360 | 14.2" | 360 | 3-94 | ||||
| 4.8*370 | 14.6" | 370 | 3-98 | ||||
| 4.8*380 | 15.0" | 380 | 3-102 | ||||
| 4.8*400 | 16.0" | 400 | 3-105 | ||||
| 4.8*430 | 16.9" | 430 | 3-120 | ||||
| 4.8*450 | 17.7" | 450 | 3-130 | ||||
| 4.8*500 | 19.7" | 500 | 3-150 | ||||
| 7.2*150 | 6.0" | 150 | 7.2 | 3-35 | 120 | 55 | |
| 7.2*200 | 8.0" | 200 | 3-50 | ||||
| 7.2*250 | 10.0" | 250 | 4-65 | ||||
| 7.2*280 | 11.0" | 280 | 4-78 | ||||
| 7.2*300 | 12.0" | 300 | 4-80 | ||||
| 7.2*350 | 14.0" | 350 | 4-90 | ||||
| 7.2*370 | 14.6" | 370 | 4-98 | ||||
| 7.2*380 | 15.0" | 380 | 4-100 | ||||
| 7.2*400 | 16.0" | 400 | 4-105 | ||||
| 7.2*450 | 18.0" | 450 | 4-110 | ||||
| 7.5*500 | 20.0" | 500 | 4-150 | ||||
| 7.2*530 | 20.9" | 530 | 4-160 | ||||
| 7.2*550 | 21.6" | 550 | 4-165 | ||||
| 9.0*400 | 16.0" | 400 | 9.6 | 8-105 | 175 | 80 | |
| 9.0*450 | 18.0" | 450 | 8-118 | ||||
| 9.0*500 | 20.0" | 500 | 1-150 | ||||
| 9.0*550 | 21.6" | 550 | 8-160 | ||||
| 9.0*600 | 23.6" | 600 | 8-170 | ||||
| 9.0*650 | 25.6" | 650 | 8-185 | ||||
| 9.0*720 | 28.3" | 720 | 10-195 | ||||
| 9.0*800 | 31.5" | 800 | 10-230 | ||||
| 9.0*900 | 35.5" | 900 | 10-265 | ||||
| 9.0*1000 | 29.4" | 1000 | 10-300 | ||||
| 9.0*1100 | 43.3" | 1100 | 10-335 | ||||
| 9.0*1200 | 47.2" | 1200 | 10-370 | ||||
| 12**650 | 25.6" | 650 | 12 | 14-185 | 250 | 114 | |
| 12*900 | 25.5" | 900 | 14-265 | ||||
Package of self-locking nylon cable ties
A. Common Packing: 100Pcs + Polybag + Label + Export Carton
B. Customized Packing: Header card packing, Blister with card packing, Double blister packing, Canister packing, other packing can be supplied according customers request
Storage condition of self-locking nylon 66 cable ties
Nylon is inherent susceptible to environmental conditions. Pa66 cable ties are moisturized to optimum performance level at machine-side and should be stored in cool and dry areas out of direct sunlight.
Cable Ties are packaged in plastic bags and should remain sealed until ready for use.
In order to increase resistance to ultraviolet light in outdoor applications, a specific grade of nylon containing
a minimum of 2% carbon black is used to protect the polymer chains and extend the cable tie's service life.

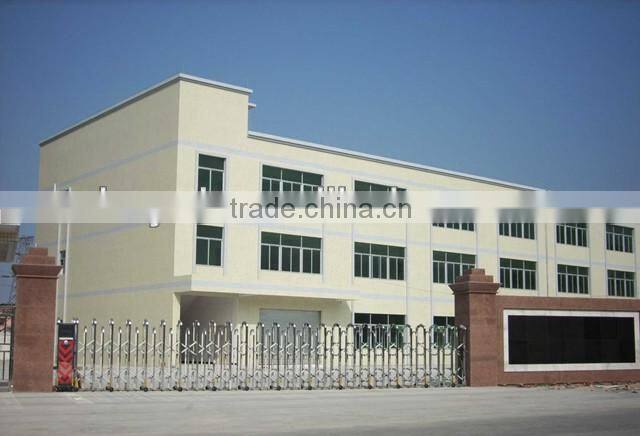

ABOUT OURS
About exhibition
ABOUT SELF-LOCKING CABLE TIE SHIPPING
| Shipping Terms &Conditions | ||
|
* FAST SHIPPING from our Wenzhou China Factory! * Item shipped in 5-15 working days after payment is received depends on the quantity of the order. * Item shipped by UPS,FedEX,DHL and others, depending on size and weight of total order. * Item only shipped to address listed on the invoice; Not responsible for shipping to wrong address. * Tracking number will be sent to you as soon as we ship the goods. |
