APPLICATION
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
MOULDED CASE CIRCUIT BREAKER - MCCB is new type product developed and manufactured by adopting international advanced technology. MOULDED CASE CIRCUIT BREAKER - MCCB is a supplied with rated insulation voltage 800V and used for circuit of AC 50HZ, raged operating voltage AC 380V or below rated operation current up to 660A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the 3P 125A MOULDED CASE CIRCUIT BREAKER - MCCB is capable of preventing damage of circuits and supplying unites. The 3P 125A MOULDED CASE CIRCUIT BREAKER - MCCB confirms to IEC60947-2 standard.
SPECIFICATION
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Type | Rated current (A) | Number of Poles | Rated insulation Voltage (V) | Rated operating voltage (A) | Arcing-over distance (mm) | Ultimate short circuit breaking capacity (KA) | Service short circuit breaking capacity (KA) | Operation performance |
| ON OFF | ||||||||
| CM1-63L | 6,10,16,20,25,32,40,50,63 | 3P,4P | 660V | 380V | 0 | 25 | 18 | 1500 8500 |
| CM1-63M | 0 | 50 | 35 | |||||
| CM1-100C | 10,16,20,25,32,40,50,63,80,100 | 0 | 25 | 18 | ||||
| CM1-100L | 0(≤50) | 35 | 22 | |||||
| CM1-100M | 0(≤50) | 50 | 35 | |||||
| CM1-100H | 0(≤50) | 85 | 50 | |||||
| CM1-225C | 100,125,160,180,200 | ≤50 | 25 | 18 | 1000 7000 | |||
| CM1-225L | ≤50 | 35 | 22 | |||||
| CM1-225M | ≤50 | 50 | 35 | |||||
| CM1-225H | ≤50 | 85 | 50 | |||||
| CM1-400C | 225,250,315,350,400 | ≤50 | 35 | 25 | 1000 4000 | |||
| CM1-400L | ≤50 | 50 | 35 | |||||
| CM1-400M | ≤50 | 65 | 42 | |||||
| CM1-630C | 400,500,630 | ≤100 | 35 | 25 | ||||
| CM1-630L | ≤100 | 50 | 35 | |||||
| CM1-630M | ≤100 | 65 | 42 | |||||
| CM1-630H | ≤100 | 100 | 65 | |||||
| CM1-800M | 630,700,800 | ≤100 | 65 | 42 | ||||
| CM1-800H | ≤100 | 100 | 65 |

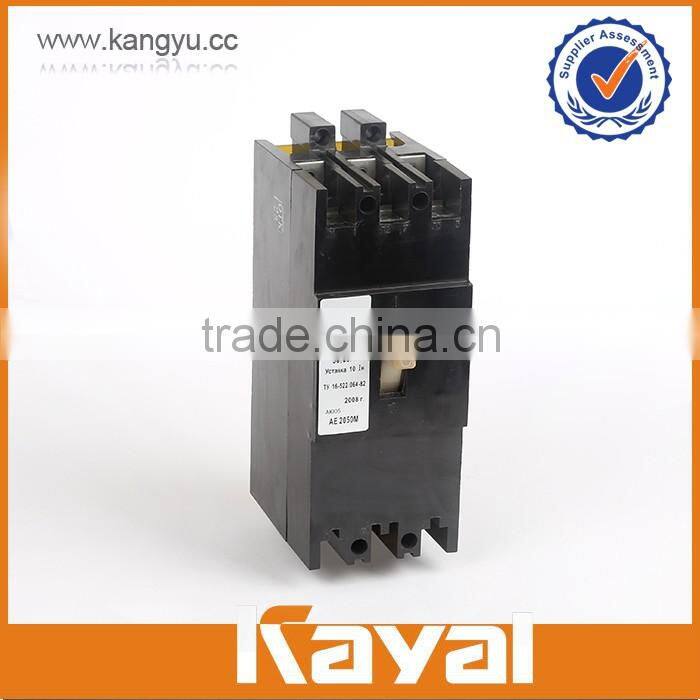

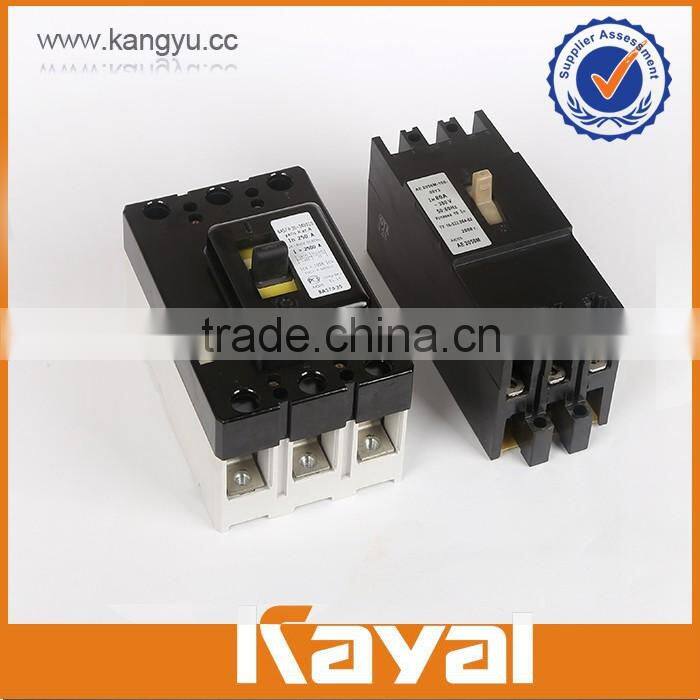

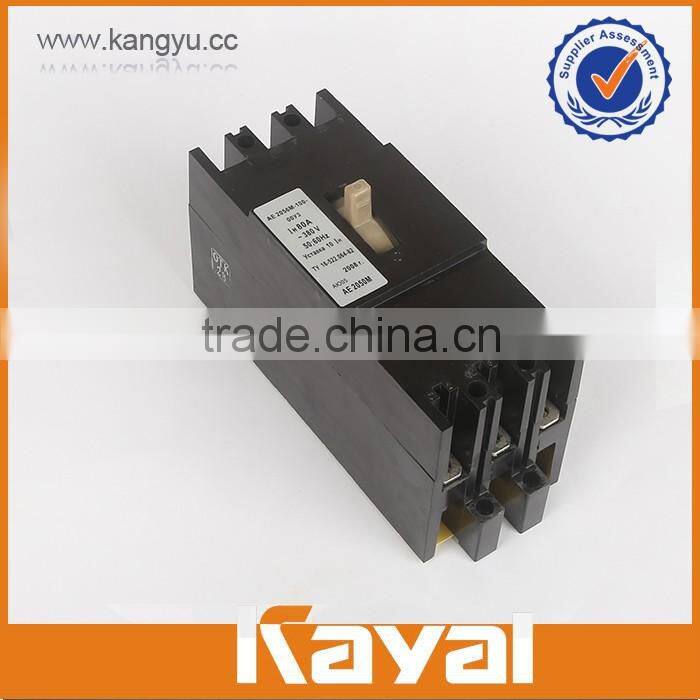

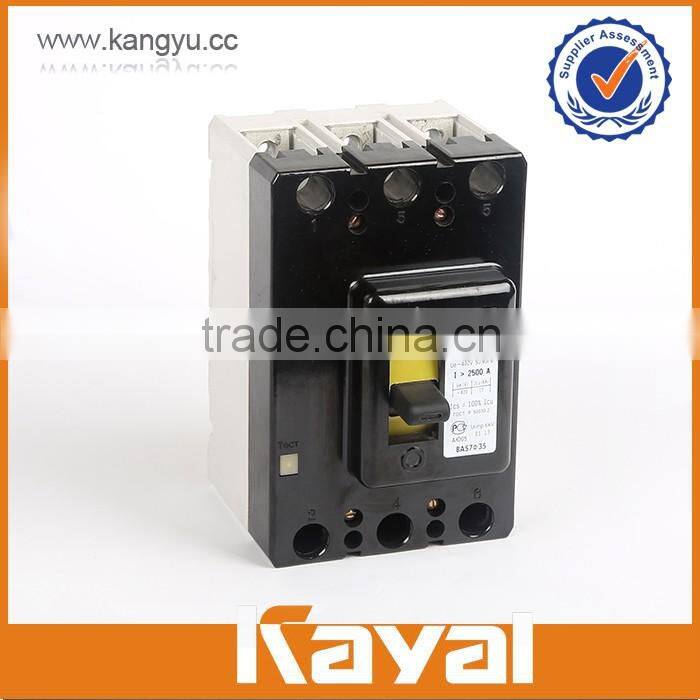

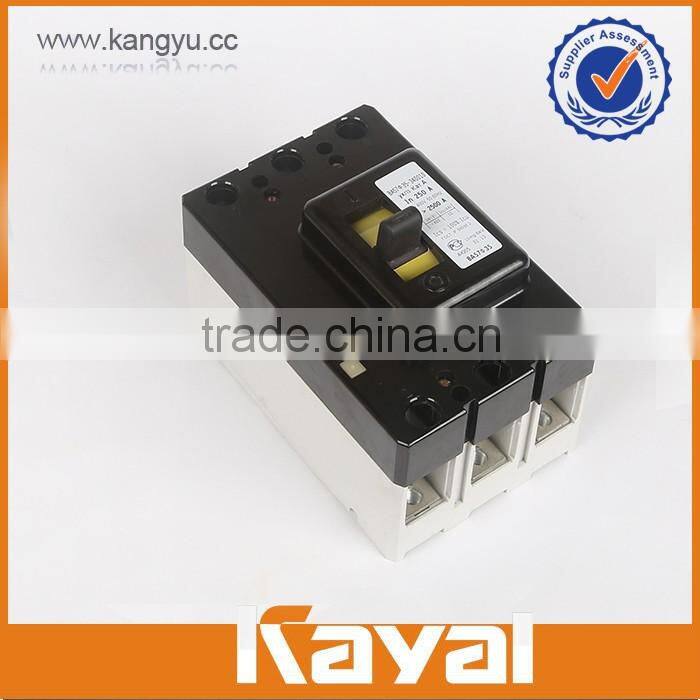

PRODUCT PICTURE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

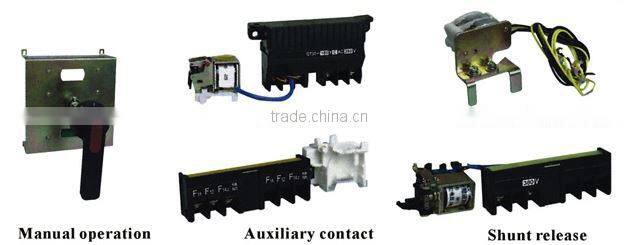

Accessories
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
Established in 2002, Wenzhou Kangyu Electrical CO.,LTD. is a specialized manufacturer of definite purpose contactors,AC/DC magnetic contactors,circuit breakers. Located in Xinguang industry zone Liushi town Wenzhou city, we enjoy convenient transportation. Our company occupies an area of 30000 and has advanced facilities of injection molding machine,punching machine,monitoring station and so on. Our annual production capacity is 50,000,000 pieces. With export license, we export products to China,America,Australia, Europe,South America and Southeast Asia. Our products gain wide praises at home and abroad. Our company has won ISO9001:2008,CUL,CB,KEMA,CE,CCC,Rohs and PICC. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is “Quality First; Improve Technology; Expecting Future”. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together. |
FAQ:
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem.
We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
