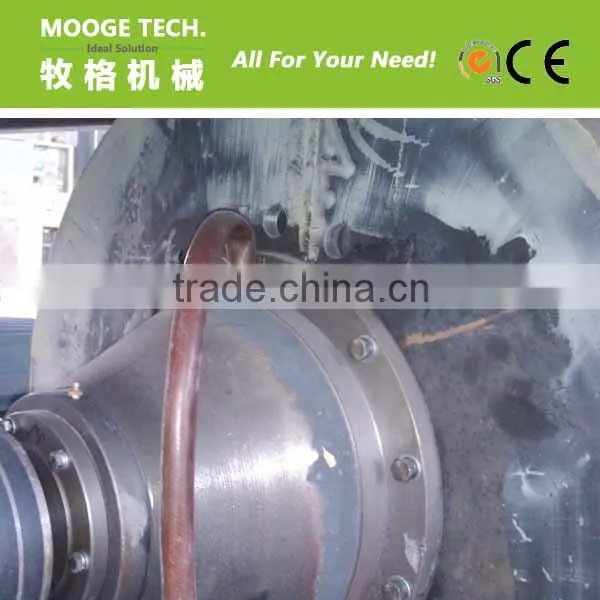

Help CenterGood Quality Plastic Grinder Machine
Related Products
-
High Capacity Plastic Color Mixer MachineUS$ 2,000 - 4,000MOQ: 1 Set -
Automatic Plastic Color Mixing MachineUS$ 2,000 - 4,000MOQ: 1 Set
-
Shredder BladesUS$ 6 - 600MOQ: 1 Set
-
SKD-11 Waste Plastic Crusher BladeUS$ 6 - 500MOQ: 1 Set
-
Professional Vertical Hydraulic Plastic Bale Cutting MachineUS$ 3,000 - 6,000MOQ: 1 Set
Specifications
PP PE PVC plastic grinder machine1.knife material:alloy steel
2.dust free
3.stable operaton,low noisy

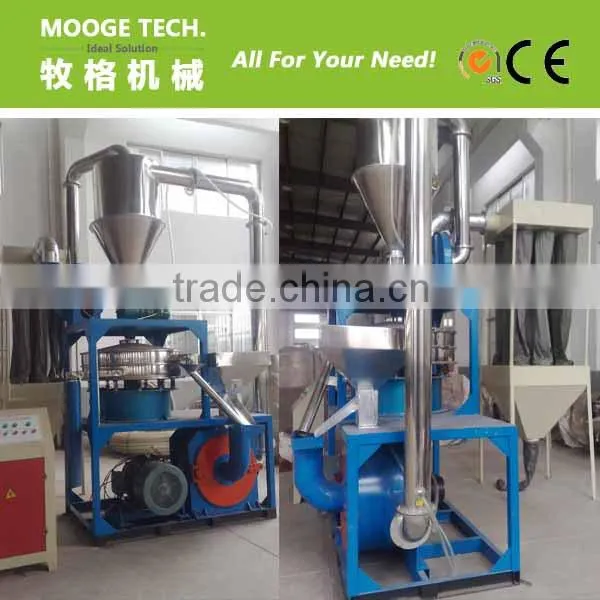

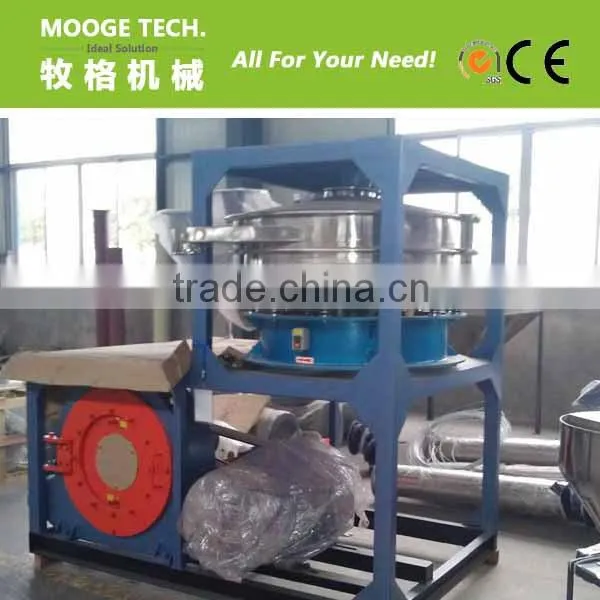

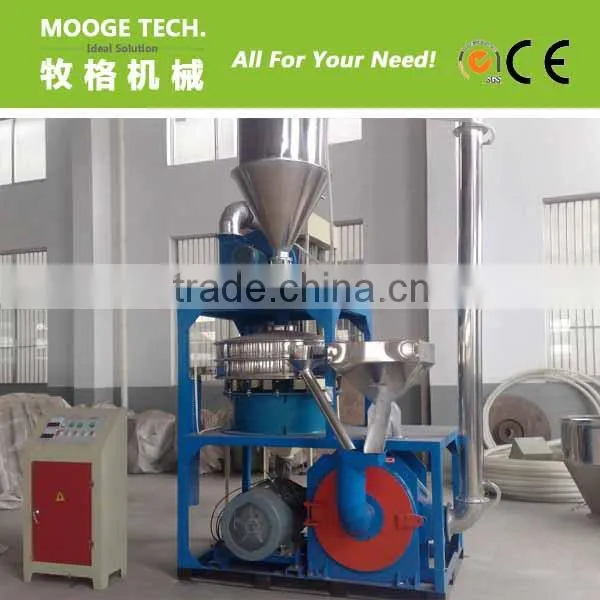

PP PE PVC plastic grinder machine/ pulverizer machine/milling machine
1.Characteristic:
The plastic grinder machine is an ideal equipment of processing and milling thermal PVC,PE and other plastics.
2.Features:
1.With water cycle and wind cooling,the machine can be applied into processing heat sensitive material.
2.With the tailwagging air stream(partly eddy flow)produced by the tailwagging of the main shaft capstan of the machine
(without sieving).

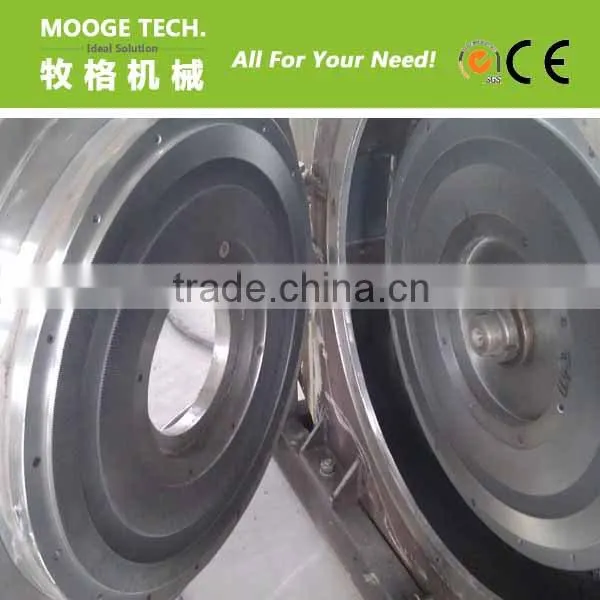

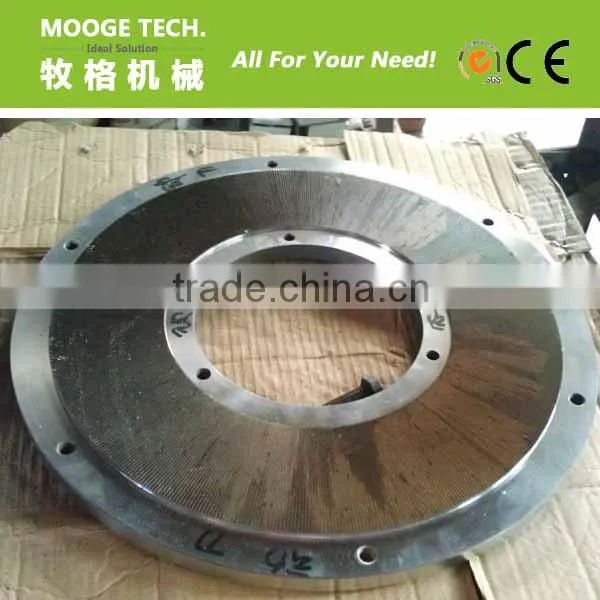

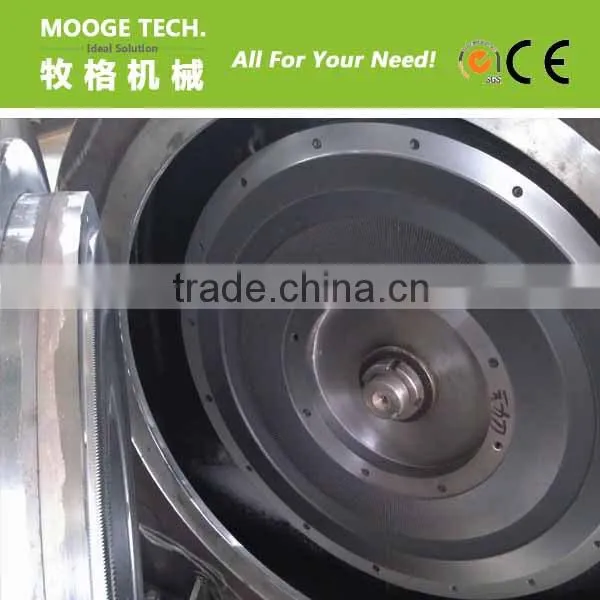

3.Both the board and the cutting blade are made of abrasion-resistant steel,with excellent performance after heat treatment.
4.With severeness of framework,the volume of the machine is quite small.If you open door closure,you can maintain it.It is
completely airproof and without any dust leakage.
5.With winding reclaiming equipment,the machine is features by cooling materials evenly,quick cooling and some other
characteristics.
3.Main technical parameter:
Model |
MF-400 |
MF-500 |
MF-520 |
MF-550 |
MF-600 |
Milling chamber DIA: |
Φ400 |
Φ500 |
Φ520 |
Φ550 |
Φ600 |
Rotor QTY |
3 |
3 |
3 |
3 |
3 |
Main Speed RPM. |
3800 |
3900 |
3900 |
3900 |
3900 |
Main motor power: |
30KW |
30KW |
37KW |
37KW |
45KW |
Close blower power |
0.75kw |
0.75KW |
0.75KW |
0.75KW |
0.75KW |
Blower power |
2.2kw |
2.2KW |
3KW |
3KW |
4KW |
Final powder size |
12-120 micron |
12-120 micron |
12-120 micron |
12-120 micron |
12-120 micron |
capacity |
50-120kg/hr |
150-200kg/hr |
180-250kg/hr |
200-300kg/hr |
300-550kg/hr |

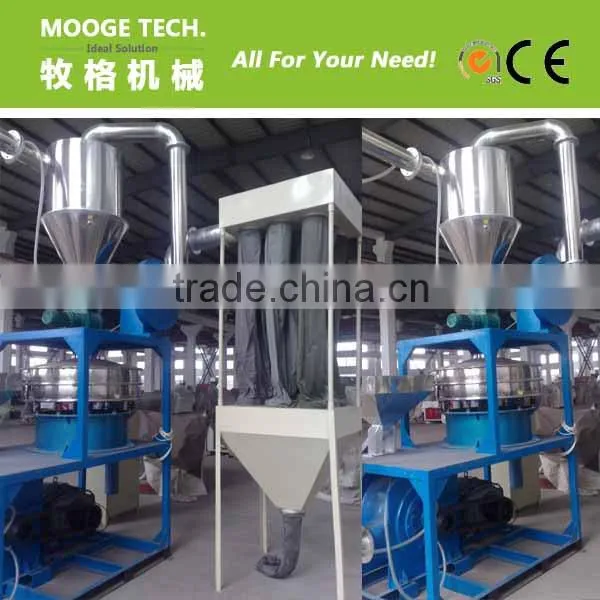

Round Vibrating sieve |
without |
Customized |
Customized |
Customized |
Customized |
Dust collecting system |
without |
Customized |
Customized |
Customized |
Customized |
Cooling system |
Water cooling |
Water cooling |
Water cooling |
Water cooling |
Water cooling |
Machine weight |
850kgs |
1200kgs |
1250kgs |
1300kgs |
1550kgs |
Dimension |
2200*800*2100 (mm) |
5900*1450*2900 (mm) |
5900*1450*2900 (mm) |
5900*1450*2900 (mm) |
5900*1450*2900 (mm) |
1- How to Choose proper Products you want?
l Please tell us as detail as what you want?
l What’s your raw material it is?
l What’s the final products you want to produce?
l What capacity you want it performance?
2- How to Control the quality?
l We have technical, engineer team design the sample machinery before enter into market
l Production QC team ensure the machine manufacturing quality
l We will running every machine after finished before shipment
l Optional choose by client running the machinery by material
