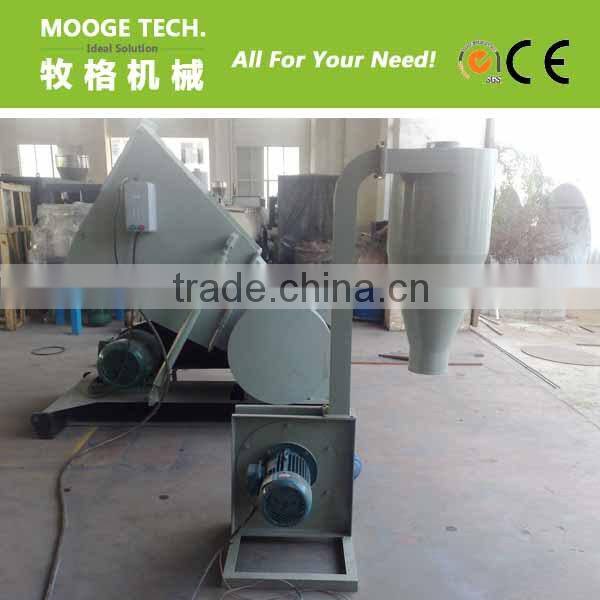

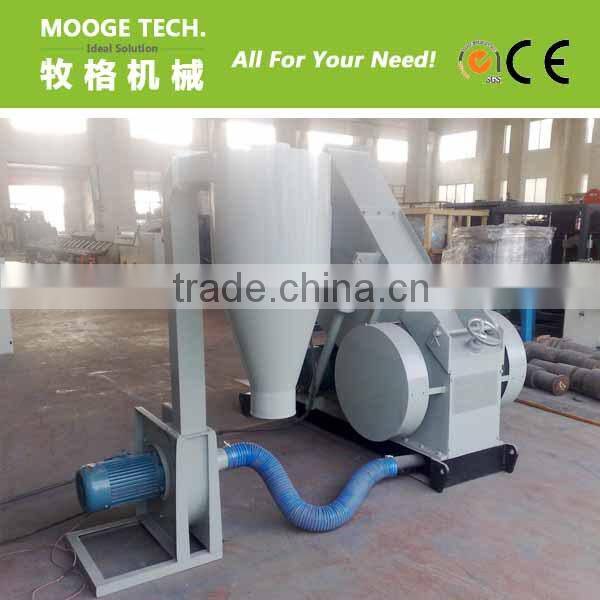

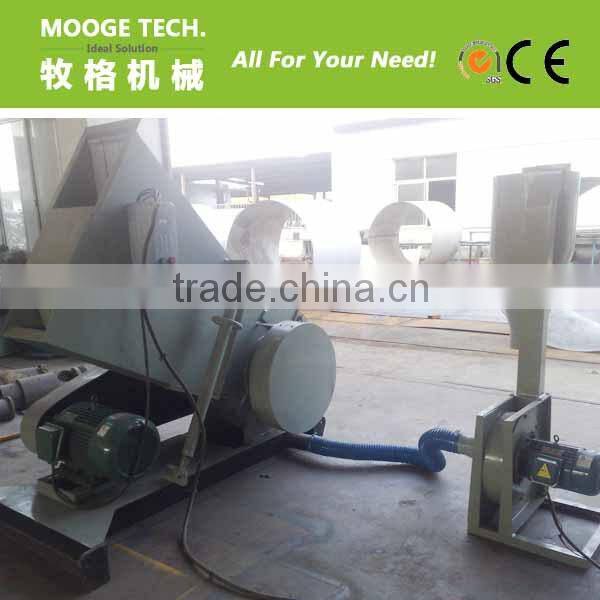

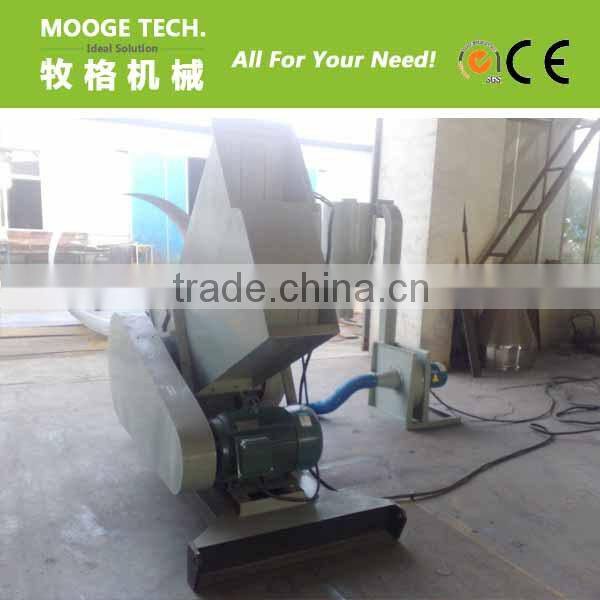

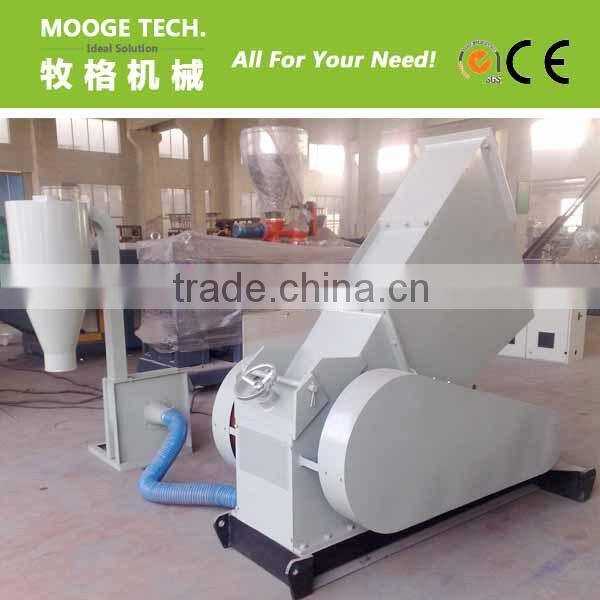

Help CenterWaste Plastic Pipe Grinding Machine
Related Products
-
SWP Plastic Pipe GrinderUS$ 3,000 - 10,000MOQ: 1 Set -
Strong PC Plastic Crusher MachineUS$ 1,000 - 18,000MOQ: 1 Set
-
PC Plastic GrinderUS$ 1,000 - 18,000MOQ: 1 Set
-
PP PE PVC Plastic Pulverizer MachineUS$ 5,000 - 10,000MOQ: 1 Set
-
Professional Plastic Milling MachineUS$ 5,000 - 10,000MOQ: 1 Set
Specifications
pipe crusher1.applied for crushing plastic material pipe
2.easy to operate
3.high cost performance
Strong plastic pipe crusher
Features:
1) Specialized blades for crushing pipes (PP-R, PE, PVC)
2) Steel body and clamping blade prevent the machine from cracking
3) Stepped blades increase shearing strength and crushing efficiency
4) Movable screen is easily to assembly, disassemble and wash
5) Sound separation layer in the feeding door lowers operations noise levels
Plastic pipe crushing machine/plastic pipe crusher/pipe crusher
SWP Series Horizontal PVC pipe crushing machine is mainly used for breaking relatively long PVC special shaped material,
such as plastic door & window, plastic pipe, sheet, etc. there is no need to cut. Once continuous feeding can be conducted.
Internal design of SWP Series Horizontal Plastic Breaking Machine is rather distinct.
Main Technical Parameters:
Model |
SWP300 |
SWP400 |
SWP500 |
SWP600 |
SWP500A |
SWP500B |
SWP600A |
SWP600B |
|||
Rotary Knife Diameter(mm) |
400 |
400 |
400 |
400 |
400 |
600 |
400 |
600 |
|||
Rotary Knife Quantity (unit) |
3 |
5 |
5 |
10units /2groups |
6units /2groups |
6units /2groups |
6units /2groups |
6units /2groups |
|||
Rotary Knife rpm(r/min) |
600 |
500 |
500 |
480 |
500 |
480 |
480 |
480 |
|||
Static Knife Quantity(unit) |
2 |
2 |
2 |
2x2 |
2 |
2units |
4units /2groups |
4units /2groups |
|||
Sieve Aperture(mm) |
φ10 |
φ12 |
φ12 |
φ12orφ14 |
φ10 |
φ12 |
φ14 |
φ14 |
|||
Crushing Capacity(kg/h) |
150-200 |
300-400 |
400-500 |
500-700 |
250-350 |
300-450 |
350-500 |
400-650 |
|||
Power(kw) |
13.2 |
18 |
18-22 |
33 |
25 |
25-30 |
33-40 |
33-40 |
|||
Feed Door Caliber(mm |
300x200 |
350x300 |
500x300 |
650x300 |
500x280 |
500x350 |
650x280 |
650x350 |
|||
Weight(kg) |
950 |
1300 |
1500 |
1800 |
1600 |
1800 |
2250 |
2800 |
|||
1- How to Choose proper Products you want?
l Please tell us as detail as what you want?
l What’s your raw material it is?
l What’s the final products you want to produce?
l What capacity you want it performance?
2- How to Control the quality?
l We have technical, engineer team design the sample machinery before enter into market
l Production QC team ensure the machine manufacturing quality
