Help CenterBest Selling 20 Amp Earth Leakage Circuit Breaker
Related Products
-
Cheap Custom Circuit Breaker dc 1000v for Solar pv SystemUS$ 0.5 - 0.8MOQ: 10 Pieces -
High Quality Rcbo and Mcb Circuit Breaker ZhejiangUS$ 0.5 - 0.8MOQ: 10 Pieces
-
OEM & ODM dc 24v Circuit BreakerUS$ 0.5 - 0.8MOQ: 10 Pieces
-
Professional 25a Motor Protection Circuit Breaker MpcbUS$ 0.5 - 0.8MOQ: 10 Pieces
-
Well Sell 110 Volt Circuit BreakerUS$ 0.5 - 0.8MOQ: 10 Pieces
| Magnetic Starter | Circuit Breaker | ELCB RCCB |
Relay | AC contactor |
SPECIFICATION
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Product name | C25 Mini Circuit Breaker mcb | |||
| Standard | Rated Current (A) | Pole | Voltage(V) | Breaking Capacity(A) |
| BS3871-1 IEC60898 | 1 to 40 50 to 63 | 1 | 240 | 6000 |
| 2,3,4 | 415 | 6000 | ||
| IEC157-1 | 50 to 63 | 1 | 240 | 4000 |
| 2,3,4 | 415 | 4000 | ||
| 1 | 1 | 220/240 | 10000 | |
| 2,3,4 | 220/240 | 20000 | ||
| 2,3,4 | 380/415 | 10000 | ||
| 3 | 1 | 220/240 | 8000 | |
| 2,3,4 | 220/240 | 20000 | ||
| 2,3,4 | 380/415 | 8000 | ||
| 10 to 40 | 1 | 220/240 | 7000 | |
| 2,3,4 | 220/240 | 16000 | ||
| 2,3,4 | 380/410 | 8000 | ||
| 50 | 1 | 220/240 | 6000 | |
| 2,3,4 | 220/240 | 10000 | ||
| 2,3,4 | 380/410 | 6000 | ||
| 63 | 1 | 220/240 | 5000 | |
| 2,3,4 | 220/240 | 10000 | ||
| 2,3,4 | 380/410 | 5000 | ||
| Standard | Rated Current (A) | Pole | Voltage(V) | Breaking Capacity(A) |
| BS3871-1 IEC60898 | 1 to 40 | 1 | 240 | 4000 |
| 2,3,4 | 415 | 4000 | ||
| IEC157-1 | 1 to 40 | 1 | 220/240 | 6000 |
| 2,3,4 | 220/240 | 12000 | ||
| 2,3,4 | 380/415 | 6000 | ||
Setting temperature of protective characteristics at 40 ℃.
Rated Voltage: 240V/415V
Rated Current: 1,3,5,6,10,16,20,25,32,40,50,63A.
Electrical Life: no than 6000 operations.
Mechanical Life: (O-C) No less than 20000 operations.
APPLICATION
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
C45 Mini Circuit Breaker 1P is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteris in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product,with long life, is mainly used in AC 50Hz/60Hz single-pole 240 or two three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & BS 3711. |

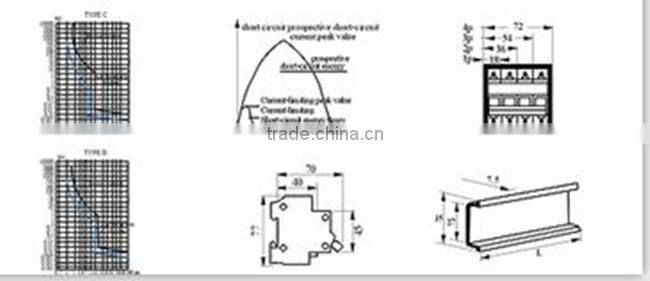

OPERATION PRINCIPLE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

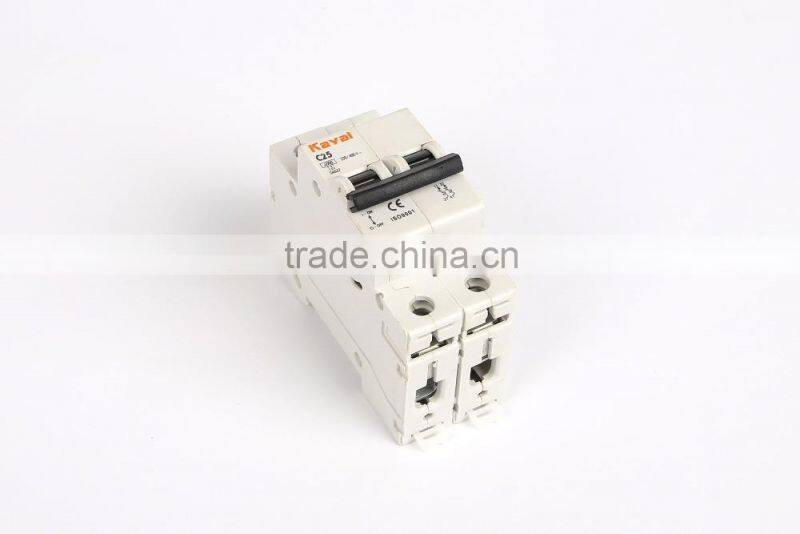

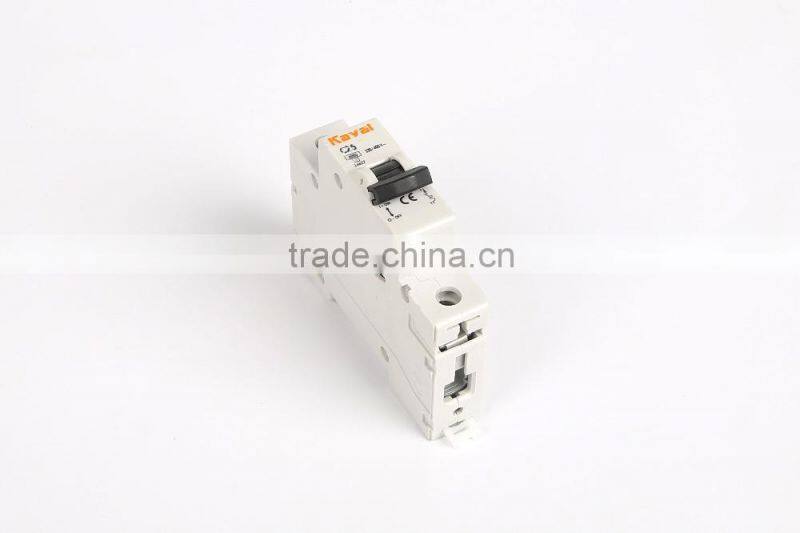

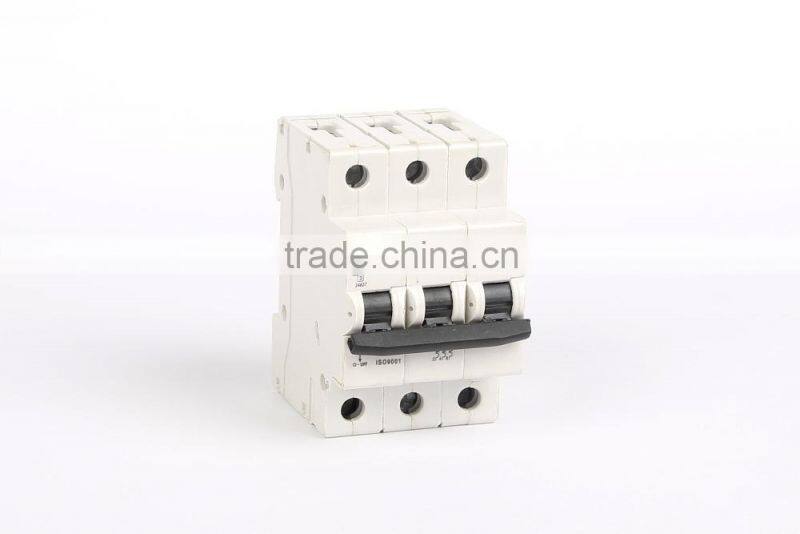

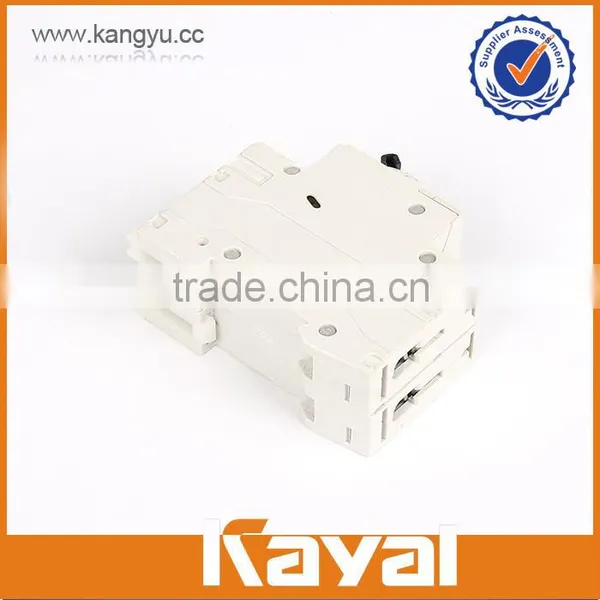

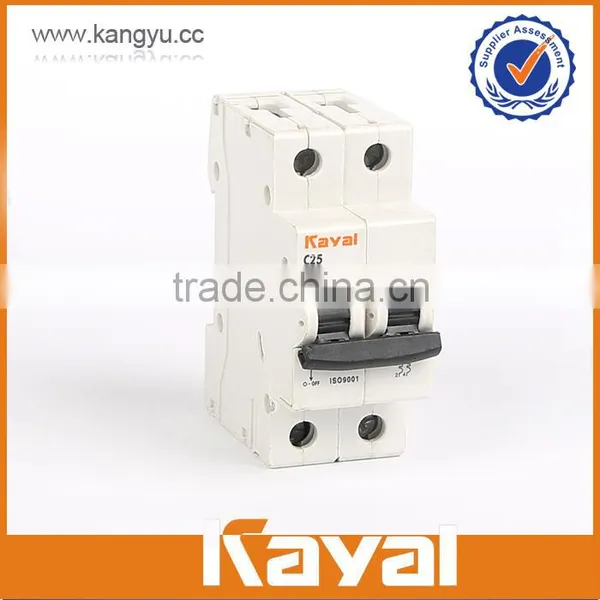

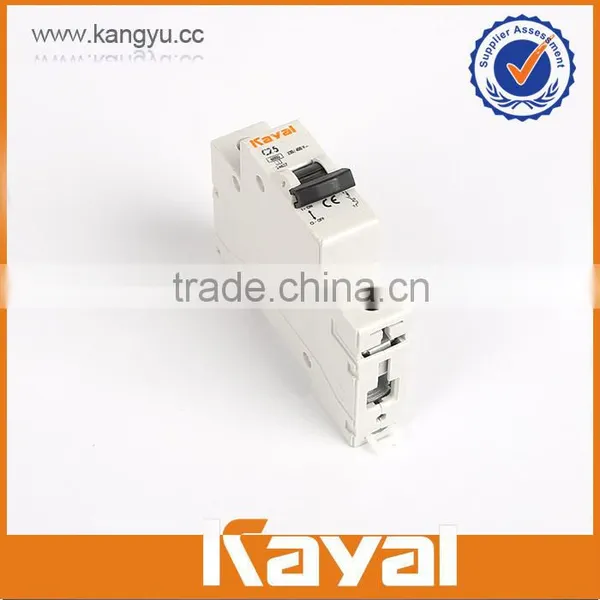

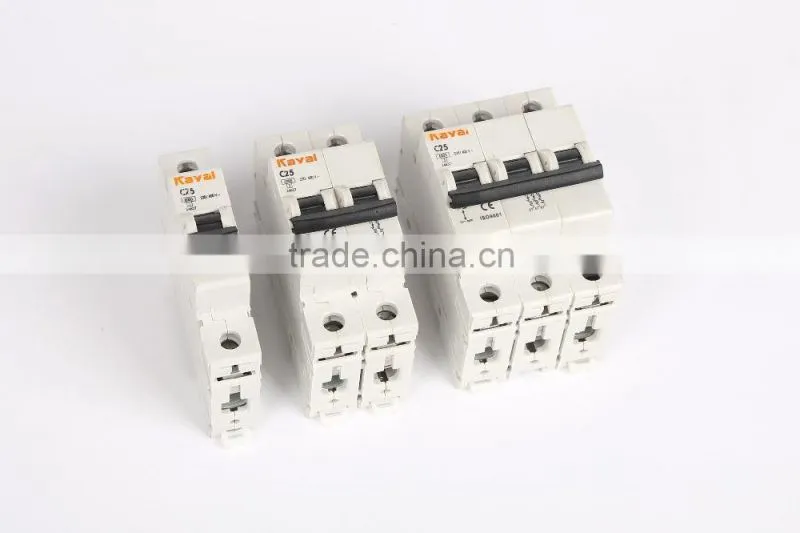

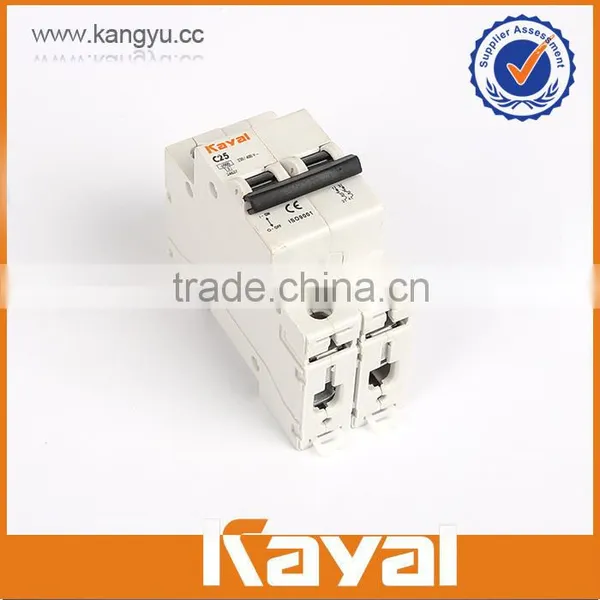

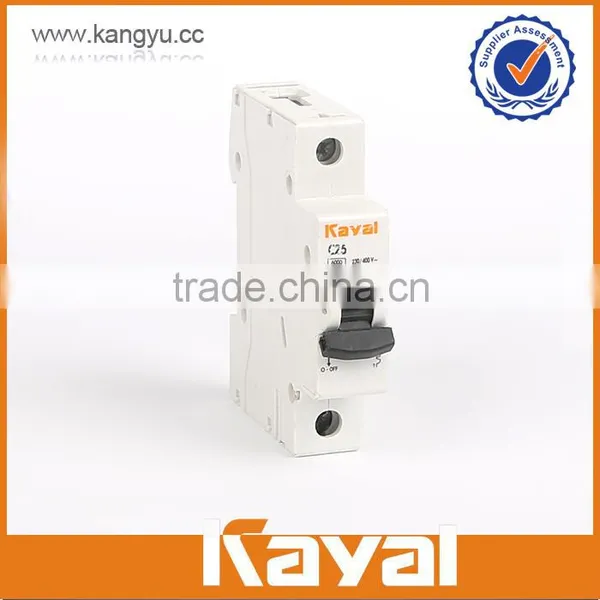

PRODUCT PICTURE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
Established in 2002, Wenzhou Kangyu Electrical CO.,LTD. is a specialized manufacturer of definite purpose contactors,AC/DC magnetic contactors,circuit breakers. Located in Xinguang industry zone Liushi town Wenzhou city, we enjoy convenient transportation. Our company occupies an area of 30000 and has advanced facilities of injection molding machine,punching machine,monitoring station and so on. Our annual production capacity is 50,000,000 pieces. With export license, we export products to China,America,Australia, Europe,South America and Southeast Asia. Our products gain wide praises at home and abroad. Our company has won ISO9001:2008,CUL,CB,KEMA,CE,CCC,Rohs and PICC. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is “Quality First; Improve Technology; Expecting Future”. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together. |
FAQ:
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem.
We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
