Promotional 9A~95A high efficiency soft starter motor,magnetic starters
APPLICATION
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
LE1-D18 25 32 Magnetic Starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V
for far distance making and breaking circuit and frequent start and control motor. It has the
features of small volume, light, weight, low power consumption, high efficiency, safe and reliable
perfomance etc.
SPECIFICATION
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Maximum power AC3 duty(K W) | Rated current (A) | Type of enclosure | Code Number | Suitable Thermal Relay(A) | |||||||
| 220V 230V | 380V 400V | 415V | 440V | 500V | 660V 690V | LL(Long life) | NL(3) (normal life) | ||||
| 1.1 | 2.2 | 22 | 22 | ... | ... | 6 | ... | ... | LE1 EC 135 | LE1 EC135 | |
| 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | 9 | IP42 IP65 |
LE1 D094... LE1 D093... |
... | LR2 D1312 | |
| 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 12 | IP42 IP65 |
LE1 D124... LE1 D123... |
LE1 D094... LE1 D093... |
LR2 D1314 | |
| 4 | 7.5 | 9 | 9 | 10 | 10 | 18 | IP42 IP65 |
LE1 D188... LE1 D185... |
LE1 D124... LE1 D123... |
LR2 D1316 | |
| 5.5 | 11 | 11 | 11 | 15 | 15 | 25 | IP42 IP65 |
LE1 D258... LE1 D255... |
LE1 D188... LE1 D185... |
LR2 D1321 | |
| 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | 32 | IP55 | LE1 D325... | LE1 D255... | LR2 D1322 LR2 D2353 | |
| 11 | 18.5 | 22 | 22 | 22 | 30 | 40 | IP55 | LE1 D405... | LE1 D325... | LR2 D2355 | |
| 15 | 22 | 25 | 30 | 30 | 33 | 50 | IP55 | LE1 D505... | LE1 D405... | LR2 D3353 LR2 D3355 | |
| 18.5 | 30 | 37 | 37 | 37 | 37 | 65 | IP55 | LE1 D655... | LE1 D505... | LR2 D3357 LR2 D3359 | |
| 22 | 37 | 45 | 45 | 55 | 45 | 80 | IP55 | LE1 D805... | LE1 D655... | LR2 D3363 LR2 D3365 | |
| 25 | 45 | 45 | 45 | 55 | 45 | 95 | IP55 | LE1 D955... | LE1 D805... | LR2 D3365 | |
| Enclosure | LE-D09 and D12 |
Double insulated, protected to IP 429 (3) or to IP659(4) |
|||||||||
| LE-D18 and D25 |
Double insulated, protected to IP 427 (3) or to IP577(4) |
||||||||||
| LE-D32...D25 | Matel, IP 55 to IP 559 | ||||||||||
|
Control(2 pushbuttons mounted on enclosure cover |
LE-D09...D95 |
1 green Start Button "1", 1 red Stop/Reset button "O" |
|||||||||
| Connections | LE-D09...D95 |
Pre-wired power and contorl circuit connections |
|||||||||
| Standard control circuit voltages | |||||||||||
| Voltages | 24 42 48 110 220/230 230 240 380/400 400 415 440 | ||||||||||
| 50/60Hz | B7 D7 E7 F7 M7 P7 U7 Q7 V7 N7 R7 | ||||||||||

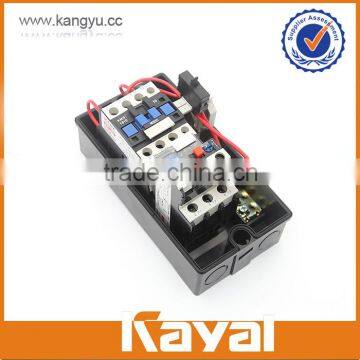

PRODUCT PICTURE
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
|
Established in 2002, Wenzhou Kangyu Electrical CO.,LTD. is a specialized manufacturer of definite purpose contactors,AC/DC magnetic contactors,circuit breakers. Located in Xinguang industry zone Liushi town Wenzhou city, we enjoy convenient transportation. Our company occupies an area of 30000 and has advanced facilities of injection molding machine,punching machine,monitoring station and so on. Our annual production capacity is 50,000,000 pieces. With export license, we export products to China,America,Australia, Europe,South America and Southeast Asia. Our products gain wide praises at home and abroad. Our company has won ISO9001:2008,CUL,CB,KEMA,CE,CCC,Rohs and PICC. Strict quality control is performed in every procedure from material sourcing, processing and testing to packing. Our tenet is “Quality First; Improve Technology; Expecting Future”. We warmly welcome customers from at home and abroad to establish cooperation and create a bright future with us together. |
FAQ
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1. what's the payment term?
A. We accept TT,30% deposit and 70% balance agaisnt copy of BL
Q 2. how's the delivery time ?
A. usually it will take about 25 days for production
Q 3. tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer Form A or C/O ?
A. It's totally not a problem. We can prepare relative documents to forgin affairs office or
other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
