Main features:

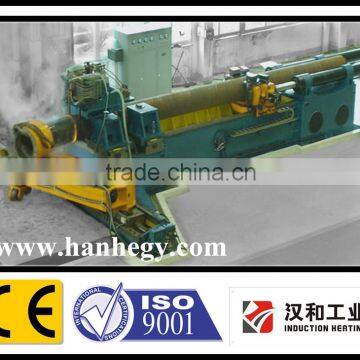

Hydraulic power pipe bending mahcine
Applications:
It can be used for the hot bending of various types of round or square steel pipe, stainless steel pipe
and joist steel; and is applicable to petroleum, chemical industry, metallurgy, steel structure and boiler
etc. auto, railway, ship manufacturer, aerospace, engineering machinery, new energy and new materials industry.
Main features:
1. Large-tonnage hydraulic or (chain type) mechanical pipe pushing, stable during the pipe bending;
2. Adjustable rocker arm, adapt to various types of radius adjustment;
3. Siemens PLC programmable control is adopted to control the adjusted radius, angle of bending and speed of pipe bending;
4. Siemens PLC programmable control is used to control the heating temperature and cooling flow;
5. PC industrial computer is used for integrated monitoring of technological parameters of the bent pipe, to guarantee the consistency of bent pipes.
6. Extra-large memory can store various groups of technology
| Model | Pipe diameter(mm) | Maximum thickness of steel (mm) | Maximum thrust(T) | bending radius |
|
WGY-720 |
219-820 | 18/25/40/60 | 230 | ≥3D |
| range of bending angle (°) | push speed control(mm/s) | hydraulic system working pressure (mpa) | fast speed of advance and retreat (m/min) | |
| 0-180 | 0.15-2.5 | 20 | 0.8 | |
| power (kw) | Frequency (hz) | motor power (kw) | input voltage (V) | |
| 550 | 1000 | 25 | 3N 380/50HZ | |
| Control mode | cooling mode | Stroke hydraulic cylinder (m) | working temperature(℃) | |
| Auto/ Manual | water+air cooling | 2.5/3/4/6/8/12 | 820-1050 | |
| Out-look size (L*W*H) (m) | Weight (T) | |||
| 12.5*10.5*2 | 55 | |
Other specifications can be customized.
Long-term recruit the different countries' agency for our induction heating pipe bending machine, especially in Russia and Mid-eastern countries. If you'd like to join us, please contact us without hesitation.
hydraulic power pipe bending mahcine video: http://youtu.be/qW8jbOEla1w
Zhuzhou Han He Industrial Equipment CO.,LTD. located in Zhuzhou, a emerging industrial city in central south of China. It is a High-tech enterprise that research, produce and sales the high- middle-frequency power, the complete set induction heating equipment and the non-sign electric heating equipment. The company has abundant technical force and strong research and development ability. It is equipped with a team made up of experts and doctors, and establishes the close cooperation with many scientific research institution and induction heating equipment companies in Europe.
Currently, we mainly produce middle frequency induction melting furnace, middle frequency induction heating furnace, complete sets of middle-high-frequency quenching equipment, middle frequency bender equipment, middle frequency carbide furnace, vacuum induction melting furnace, vacuum induction sintering furnace, hydrogen sintering furnace, polysilicon directional solidification furnace, bright annealing furnace pipe, steel pipe straight seam welding annealing equipment, compound pot bottom high frequency brazing machine, Conduction of heat heating machine before rub pressure welding for the compound metal pot bottom, round-link chain induction heating machine and so on. We can also accept the design and construction of the non-sign induction heating equipment and other electric heating equipment.
1. How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
2. How to install your machine?
We have paper installation instructions and videos, we will teach till you learn it.
3. How about the payment terms and delivery time?
Payment terms for small machines: 100% T/T in advance.
The big machines and big amount: 50% deposit 50% before shipment (we will shoot total delivering process for customer's confirmation) and the related papers. You can pay by T/T or other ways.
The delivery time is within 120days, and we will delivery goods on time.
4. Is your goods has ISO9001 ?
Yes, all our goods has ISO. All machines are high quality goods.
5. What is your nature of your company: Trade Company or factory?
We are manufacturer with a big factory, warmly welcome to visit our factory and contact us
