Bicycle Wheel Hub Ball Bearing

Bicycle Wheel Hub Ball Bearing thumbnail-1
Bicycle Wheel Hub Ball Bearing thumbnail-2
Bicycle Wheel Hub Ball Bearing thumbnail-3
Bicycle Wheel Hub Ball Bearing thumbnail-4
Bicycle Wheel Hub Ball Bearing thumbnail-5
Bicycle Wheel Hub Ball Bearing thumbnail-6
Bicycle Wheel Hub Ball Bearing photo-1
Bicycle Wheel Hub Ball Bearing photo-2
Bicycle Wheel Hub Ball Bearing photo-3
Bicycle Wheel Hub Ball Bearing photo-4

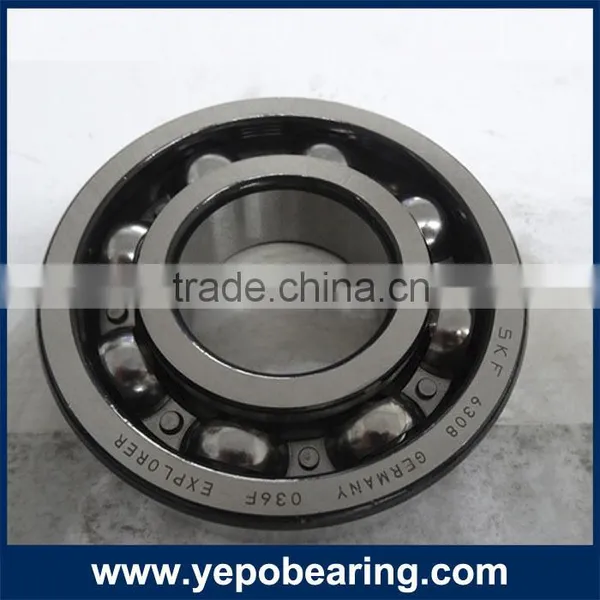

Bicycle Wheel Hub Ball Bearing photo-5
Bicycle Wheel Hub Ball Bearing photo-6
US$ 0.5 - 20 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Brand Name:
YEPO,Famous Brand,OEM
Bore Size:
10, 600
Outside Diameter:
20, 800
Contact Supplier Request Quote Chat Now
Shenzhen Yepo Bearing Company
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen GuangZhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name YEPO,Famous Brand,OEM
Bore Size 10, 600
Outside Diameter 20, 800
Model Number 6300 series
Precision Rating P0 P6
Seals Type ZZ 2RS open
Number of Row Single Row
Place of Origin Jiangsu, China

YEPO BEARING



Deep groove ball bearings are the most widely used bearings.  They utilize an uninterrupted raceway that makes them optimal for radial loads . This design permits precision tolerance,  even at high-speed operation.


Deep Groove Ball Bearing Available Series

Miniature Ball bearing series:  67X. 68X. 69X. 60X. 62X. 63X. MRXX. MFXX
General single row series:  67XX. 68XX. 69XX. 160XX. 60XX. 62XX. 63XX. 64XX
Thickening Ball bearing series:  622XX. 623XX. 630XX. 632XX. 633XX. 638XX
Double row series:  42XX. 43XX
Stainless steel series:  SS60XX. SS62XX. SS63XX. SS69XX. SSRXX. SSFRXX
Non-standard series: 60/XX. 62/XX. 63/XX

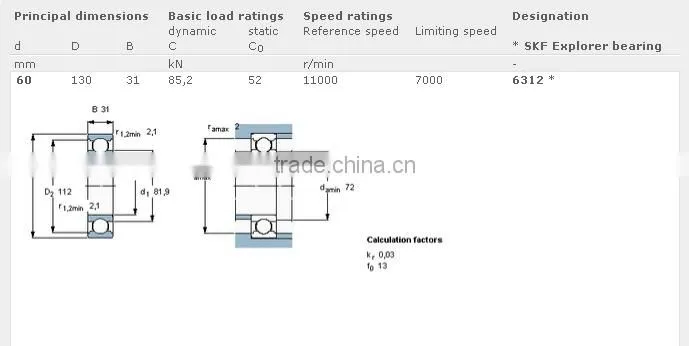

  6312  data for your reference:







Bearing No. d D B W. KG
602 2 7 2.8 0.58
603 3 9 3 1.45
604 4 12 4 2.29
605 5 14 5 3.48
606 6 17 6 6.08
607 7 19 6 7.51
608 8 22 7 12.2
609 9 24 7 14.7
623 3 10 4 1.66
624 4 13 5 3.04
625 5 16 5 4.86
626 6 19 6 7.94
627 7 22 7 12.9
633 3 13 5 3.33
634 4 16 5 5.21
635 5 19 6 8.34
636 6 22 7 14
681 1 3 1 0.11
682 2 5 2 0.29
683 3 7 3 0.45
684 4 9 4 0.56
685 5 11 5 1.96
686 6 13 5 2.69
687 7 14 5 2.97
688 8 16 5 4
689 9 17 5 4.43
691 1.5 5 2 0.2
692 2 6 3 0.38
693 3 8 4 0.83
694 4 11 4 1.75
695 5 13 4 2.5
696 6 15 5 3.72
697 7 17 5 5.12
698 8 19 6 7.18
699 9 20 6 8.33
Bearing No. d D B W. KG
6000 10 26 8 0.019
6001 12 28 8 0.023
6002 15 32 9 0.032
6003 17 35 10 0.039
6004 20 42 12 0.07
6005 25 47 12 0.079
6006 30 55 13 0.117
6007 35 62 14 0.156
6008 40 68 15 0.194
6009 45 75 16 0.246
6010 50 80 16 0.264
6011 55 90 18 0.384
6012 60 95 18 0.418
6013 65 100 18 0.438
6014 70 110 20 0.607
6015 75 115 20 0.645
6016 80 125 22 0.855
6017 85 130 22 0.895
6018 90 140 24 1.17
6019 95 145 24 0.567
6020 100 150 24 1.26
6021 105 160 26 1.6
6022 110 170 28 1.97
6024 120 180 28 2.67
6026 130 200 33 3.92
6028 140 210 33 4.15
6030 150 225 35 4.84
6032 160 240 38 5.89
6034 170 260 42 7.92
6036 180 280 46 10.3
6038 190 290 46 10.8
6040 200 310 51 13.9
6044 220 340 56 18.4
6048 240 360 56 19.6
6052 260 400 65 29.3
6056 280 420 65 31
6060 300 460 74 43.8
6064 320 480 74 46.1
6068 340 520 82 61.8
6072 360 540 82 64.7
6076 380 560 82 67.5
6080 400 600 90 87.6
6084 420 620 90 91.1
6088 440 650 94 106
6092 460 680 100 123
6096 480 700 100

127
Bearing No. d D B W.KG
6200 10 30 9 0.032
6201 12 32 10 0.037
6202 15 35 11 0.045
6203 17 40 12 0.065
6204 20 47 14 0.11
6205 25 52 15 0.13
6206 30 62 16 0.20
6207 35 72 17 0.29
6208 40 80 18 0.37
6209 45 85 19 0.41
6210 50 90 20 0.46
6211 55 100 21 0.61
6212 60 110 22 0.78
6213 65 120 23 0.99
6214 70 125 24 1.05
6215 75 130 25 1.20
6216 80 140 26 1.40
6217 85 150 28 1.80
6218 90 160 30 2.15
6219 95 170 32 2.60
6220 100 180 34 3.15
6221 105 190 36 3.70
6222 110 200 38 4.35
6224 120 215 40 5.15
6226 130 230 40 5.80
6228 140 250 42 7.45
6230 150 270 45 9.40
6232 160 290 48 14.50
6234 170 310 52 17.50
6236 180 320 52 18.50
6238 190 340 55 23.00
6240 200 360 58 28.00
6244 220 400 65 37.00
6248 240 440 72 51.00
6252 260 480 80 65.50
6256 280 500 80 71.00
6260 300 460 74 88.50
6264 320 580 92 110.00
6268 340 620 92 110.00
Bearing No. d D B W. KG
6300 10 35 11 0.052
6301 12 37 12 0.06
6302 15 42 13 0.083
6303 17 47 14 0.113
6304 20 52 15 0.145
6305 25 62 17 0.235
6306 30 72 19 0.345
6307 35 80 21 0.464
6308 40 90 23 0.636
6309 45 100 25 0.829
6310 50 110 27 1.06
6311 55 120 29 1.37
6312 60 130 31 1.72
6313 65 140 33 2.11
6314 70 150 35 2.57
6315 75 160 37 3.08
6320 100 215 47 7
6340 200 420 80 3.67
6344 220 460 88 4.28
Bearing No. d D B W. KG
6403 17 62 17 0.224
6404 20 72 19 0.4
6405 25 80 21 53
6406 30 90 23 0.72
6407 35 100 25 0.92
6408 40 110 27 1.17
6409 45 120 29 1.57
6410 50 130 31 1.88
6411 55 140 33 2.25
6412 60 150 35 2.8
6413 65 160 37 3.44
6414 70 180 42 5
6415 75 190 45 5.57
6416 80 200 48 6.64
6417 85 210 52 8.13
Bearing No. Bearing No. d D B W. KG
6900 61900 10 22 6 0.009
6901 61901 12 24 6 0.01
6902 61902 15 28 7 0.015
6903 61903 17 30 7 0.017
6904 61904 20 37 9 0.037
6905 61905 25 42 9 0.042
6906 61906 30 47 9 0.052
6907 61907 35 55 10 0.075
6908 61908 40 62 12 0.112
6909 61909 45 68 12 0.126
6910 61910 50 72 12 0.135
6911 61911 55 80 13 0.189
6912 61912 60 85 13 0.192
6913 61913 65 90 13 0.218
6914 61914 70 100 16 0.349
6915 61915 75 105 16 0.364
6916 61916 80 110 16 0.391
6917 61917 85 120 18 0.55
6918 61918 90 125 18 0.585
6919 61919 95 130 18 0.601
6920 61920 100 140 20 0.828
6921 61921 105 145 20 0.856
6922 61922 110 150 20 0.893
6924 61924 120 165 22 1.21
6926 61926 130 180 24 1.57
6928 61928 140 190 24 1.67
6930 61930 150 210 28 3.01
6932 61932 160 220 28 2.71
6934 61934 170 230 28 3.34
6936 61936 180 250 33 4.16
6938 61938 190 260 33 5.18
6940 61940 200 280 38 7.28
6944 61944 220 300 38 7.88
6948 61948 240 320 38 8.49
6952 61952 260 360 46 14
6956 61956 280 380 46 15.1
6960 61960 300 420 56 23.9
6964 61964 320 440 56 25.3
6968 61968 340 460 56 26.6
6972 61972 360 480 56 27.9
6976 61976 380 520 65 40
6980 61980 400 540 65 42
6984 61984 420 560 65 43.6
6988 61988 440 600 74 60.2
6992 61992 460 620 74 62.6
Bearing No. Bearing No. d D B Weight
Kg
6800 61800 10 19 5 0.005
6801 61801 12 21 5 0.006
6802 61802 15 24 5 0.007
6803 61803 17 26 5 0.007
6804 61804 20 32 7 0.017
6805 61805 25 37 7 0.021
6806 61806 30 42 7 0.024
6807 61807 35 47 7 0.027
6808 61808 40 52 7 0.031
6809 61809 45 58 7 0.038
6810 61810 50 65 7 0.05
6811 61811 55 72 9 0.081
6812 61812 60 78 10 0.103
6813 61813 65 85 10 0.128
6814 61814 70 90 10 0.134
6815 61815 75 95 10 0.149
6816 61816 80 100 10 0.151
6817 61817 85 110 13 0.263
6818 61818 90 115 13 0.276
6819 61819 95 120 13 0.297
6820 61820 100 125 13 0.31
6821 61821 105 130 13 0.324
6822 61822 110 140 16 0.497
6824 61824 120 150 16 0.537
6826 61826 130 165 18 0.758
6828 61828 140 175 18 0.832
6830 61830 150 190 20 1.15
6832 61832 160 200 20 1.23
6834 61834 170 215 22 1.86
6836 61836 180 225 22 1.98
6838 61838 190 240 24 2.53
6840 61840 200 250 24 2.67
6844 61844 220 270 24 2.9
6848 61848 240 300 28 4.48
6852 61852 260 320 28 4.84
6856 61856 280 350 33 7.2
6860 61860 300 380 38 10.3
6864 61864 320 400 38 10.8
6868 61868 340 420 38 11.5
6872 61872 360 440 38 11.8
6876 61876 380 480 46 19.5
6880 61880 400 500 46 20.5
6884 61884 420 520 46 21.4
6888 61888 440 540 46 22.3
6892 61892 460 580 56 34.3
6896 61896 480 600 56 35.4





Characteristics
Low-weight, compact designs.
A wide range of sizes.
Simple in design
Suitable for high and even very high speeds

Main Usage
Car: the rear wheels and electric device, the transmission parts
Electric: general motors, and household electrical appliances
Others: instrument, internal combustion engines, construction machinery, railway vehicles, loading/unloading machinery, agricultural machinery, all kinds of industrial machinery

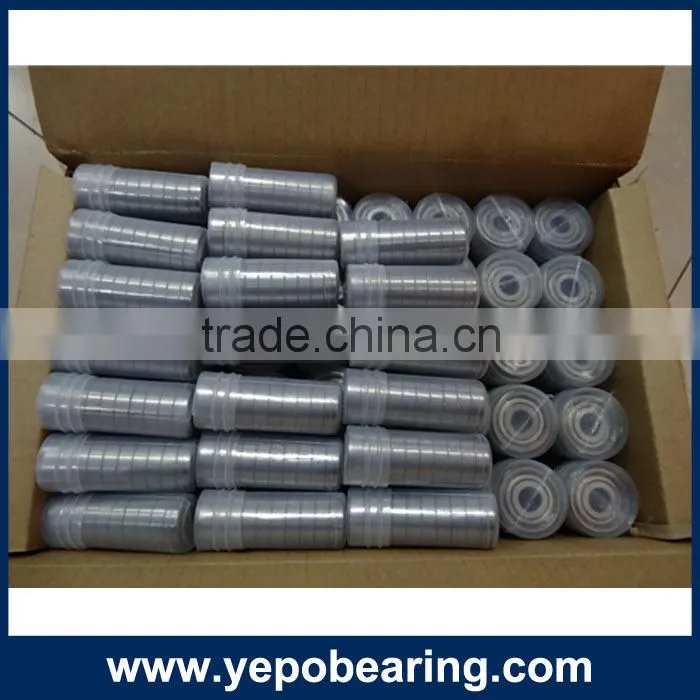

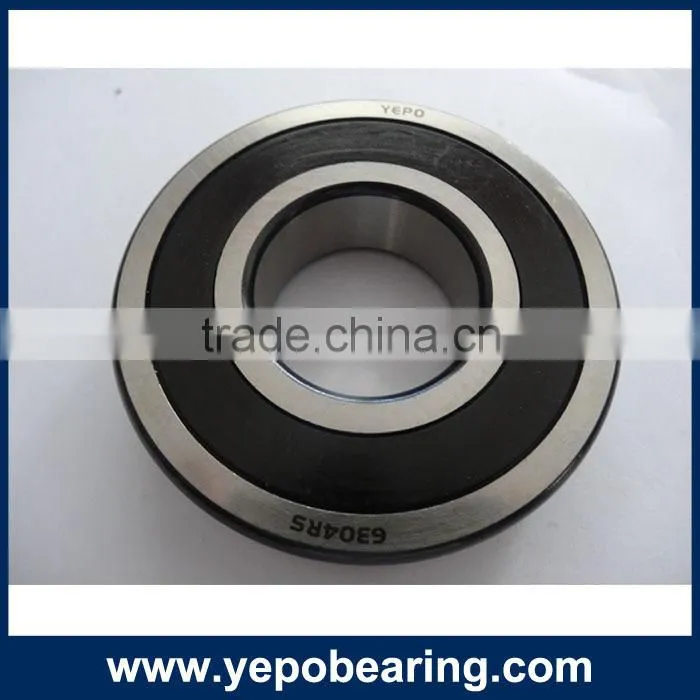

Detailed Images

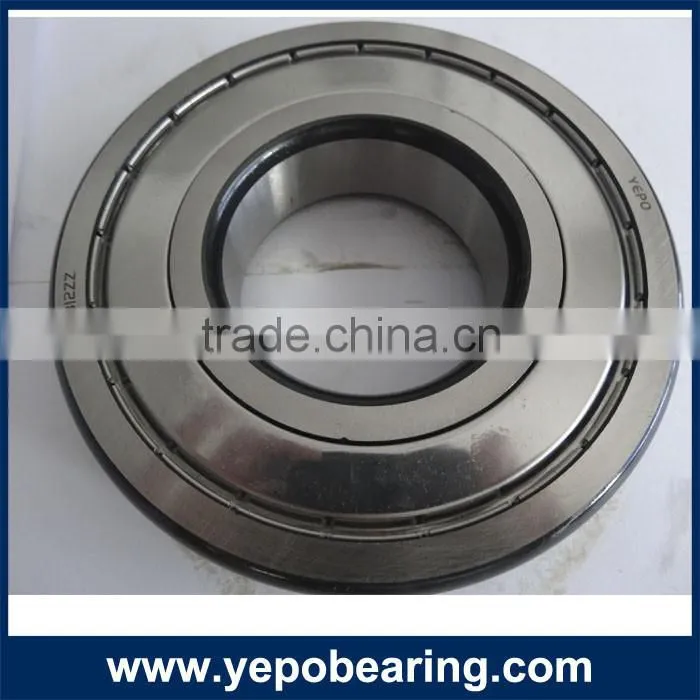

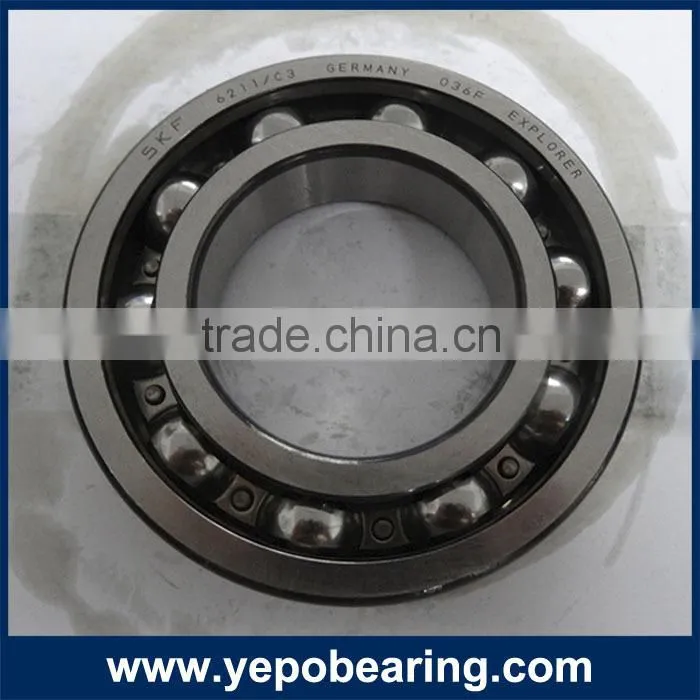

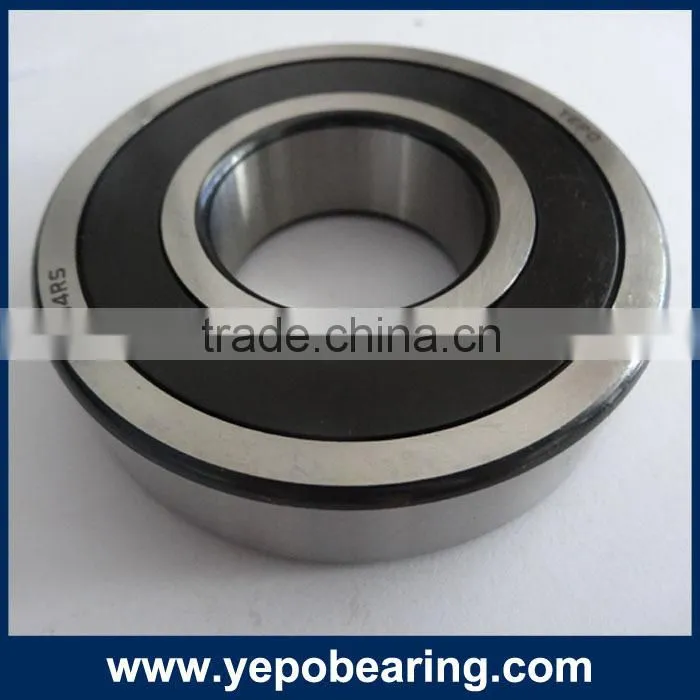

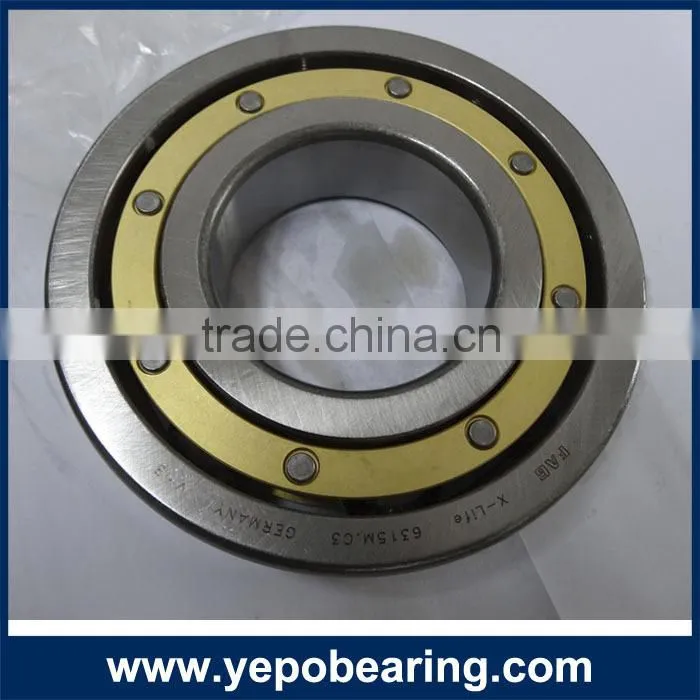

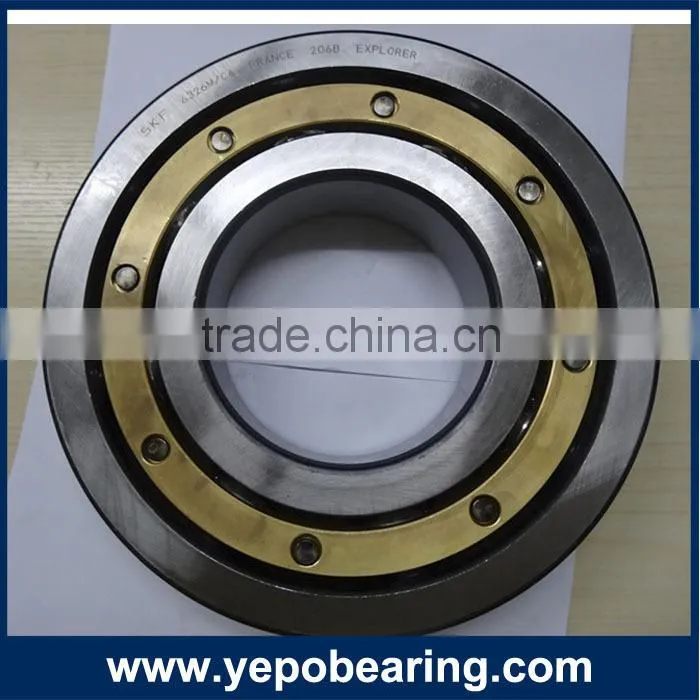

bicycle wheel hub ball bearingbicycle wheel hub ball bearingbicycle wheel hub ball bearing bicycle wheel hub ball bearingbicycle wheel hub ball bearingbicycle wheel hub ball bearingbicycle wheel hub ball bearing


bicycle wheel hub ball bearingbicycle wheel hub ball bearing





FAQ

 Q.  How to place an order?

A.  Send us enquiry directly at the bottom, give us the bearing model  with quanity, Brand,material, payments way,or other special requirements you want.



Q.  Can I get a sample order?

A.   Yes, you can. It depends on the total quantity and price.



Q.  What is the smallest order can you accept?

A.  The total amount can not below USD500.00 not including shipping fee.



Q.   What is the delivery payments ?

A.    EXW, FOB, CIF,  you can choose.



Q.  What's the shippping way ?

A.  Sea transportation, DHL, TNT, UPS,FEDEX, as  per your requirements.



Q.  What is the lead time?

A.   5-7 days for small order in stock; 15-30 days for large order.

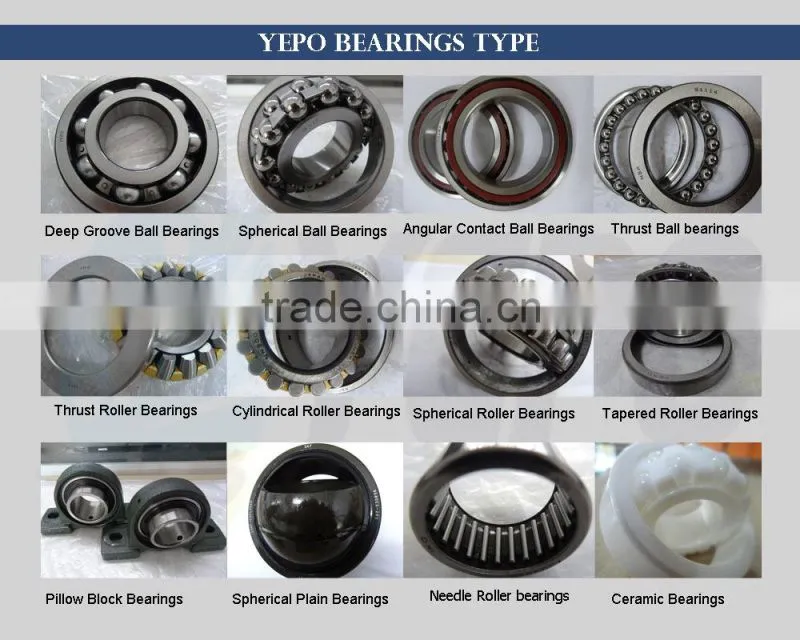

Yepo Bearing Series

click the link to get more products:

Deep groove ball bearing

(6000.6200.6300.6400.6800.6900.16000.62200.62300.600.4200.4300)

Angular contact bal bearing

(7200.7300.7400.7900.5200.5300.3200.3300.QJ)

Spherical roller bearing

(21300.22200.22300.23000.23100.23200.23900.24000.24100)

Tapered roller bearing

(30200.30300.31300.32000.32200.32300.32900.33000.33100.INCH)

Pillow block bearing

(UC.UCP.UCT.UCF.UCFC.UCFL.UCFS)

Thrust ball and thrust roller bearing

(51100.51200.51300.53200.53300.29200.29300.29400)

Spherical ball and roller bearing

(1200.1300.2200.2300)

Linear bearing and linear guide

(LM.LME.LMF.HSR.SSR.SHS.HGH.EGH.HGW)

Needle roller bearing

(AZ.NA)

Rod ends bearing

(POS.PHS...)
