Home > Industrial Equipment & Components > Guide Rail > Steel Guide Rail > THK SRS9XGN Linear Guide Block SRS-9XGN Slide Rail
US$ 10 - 100
MOQ: 1 Piece
Key Specifications
Get Latest Price
Guide Width or Diameter:
20mm
Guide Length:
40.8mm
Model Number:
SRS9XGN
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
THK SRS9WGS Linear Guide Block SRS-9WGS Slide RailUS$ 10 - 100MOQ: 1 Piece -
THK SRS15GN Linear Guide Block SRS-15GN Slide RailUS$ 10 - 100MOQ: 1 Piece
-
THK SRS7WGN Linear Guide Block SRS-7WGN Slide RailUS$ 10 - 100MOQ: 1 Piece
-
THK HRW21CA Linear Guide Block HRW-21CA Slide RailUS$ 10 - 100MOQ: 1 Piece
-
THK HRW50CA Linear Guide Block HRW-50CA Slide RailUS$ 10 - 100MOQ: 1 Piece
Guide Width or Diameter
20mm
Guide Length
40.8mm
Model Number
SRS9XGN
Place of Origin
Japan
Brand Name
THK
We are a big THK wholesaler with huge stocks and cheap prices.
THK SRS 9XGN linear guide block
THK Miniature Model SRS-G series
Since its LM rail has a low sectional height, this LM Guide achieves a lightweight and compact structure.

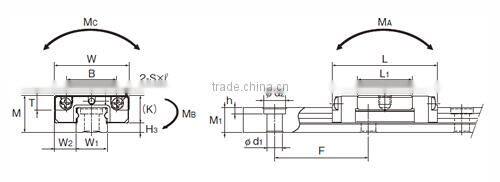

| Model No. | Outer dimensions | Basic load rating | |||
| Radial | |||||
| Height | Width | Length | Dynamic | Static | |
| M | W | L | rating | rating | |
| C | C0 | ||||
| mm | mm | mm | kN | kN | |
| SRS 5GM | 6 | 12 | 16.9 | 366 | 527 |
| SRS 5GN | 6 | 12 | 20.1 | 448 | 703 |
| SRS 5WGM | 6.5 | 17 | 22.1 | 498 | 820 |
| SRS 5WGN | 6.5 | 17 | 28.1 | 640 | 1170 |
| SRS 7GS | 8 | 17 | 19 | 0.946 | 1.16 |
| SRS 9XGS | 10 | 20 | 21.5 | 1.37 | 1.53 |
| SRS 12GS | 13 | 27 | 25 | 2.07 | 2.1 |
| SRS 15GS | 16 | 32 | 32 | 4.01 | 4.24 |
| SRS 7WGS | 9 | 25 | 22.5 | 1.06 | 1.35 |
| SRS 9WGS | 12 | 30 | 26.5 | 1.73 | 2.14 |
| SRS 12WGS | 14 | 40 | 30.5 | 3.05 | 3.68 |
| SRS 15WGS | 16 | 60 | 41.5 | 5.59 | 6.78 |
| SRS 7GM | 8 | 17 | 23.4 | 1.16 | 1.54 |
| SRS 9XGM | 10 | 20 | 30.8 | 2.22 | 3.06 |
| SRS 12GM | 13 | 27 | 34.4 | 3.36 | 3.55 |
| SRS 15GM | 16 | 32 | 43 | 5.59 | 5.72 |
| SRS 20GM | 20 | 40 | 50 | 5.95 | 9.4 |
| SRS 25GM | 25 | 48 | 77 | 13.3 | 22.3 |
| SRS 7WGM | 9 | 25 | 31 | 1.63 | 2.51 |
| SRS 9WGM | 12 | 30 | 39 | 2.67 | 3.35 |
| SRS 12WGM | 14 | 40 | 44.5 | 4.46 | 5.32 |
| SRS 15WGM | 16 | 60 | 55.5 | 7.43 | 8.59 |
| SRS 7GN | 8 | 17 | 31 | 1.63 | 2.51 |
| SRS 9XGN | 10 | 20 | 40.8 | 2.94 | 4.59 |
| SRS 12GN | 13 | 27 | 47.1 | 4.72 | 6.83 |
| SRS 15GN | 16 | 32 | 60.8 | 8.27 | 11.9 |
| SRS 7WGN | 9 | 25 | 40.9 | 2.12 | 3.66 |
| SRS 9WGN | 12 | 30 | 50.7 | 3.48 | 5.81 |
| SRS 12WGN | 14 | 40 | 59.5 | 5.93 | 9.46 |
| SRS 15WGN | 16 | 60 | 74.5 | 9.87 | 15.3 |
Please contact me if you need more detail specifications.
THK related products
SRS5GM SRS5GN SRS5WGM SRS5WGN
SRS7GS SRS9GS SRS12GS SRS15GS
SRS7WGS SRS9WGS SRS12WGS SRS15WGS
SRS7GM SRS9GM SRS12GM SRS15GM SRS20GM SRS25GM
SRS7WGM SRS9WGM SRS12WGM SRS15WGM
SRS7GN SRS9GN SRS12GN SRS15GN
SRS7WGN SRS9WGN SRS12WGN SRS15WGN
