Home > Products > New Products > 2014 Best price poultry animal feed machine for sale AF-120(Box type)
2014 Best price poultry animal feed machine for sale AF-120(Box type)
- 1000 Set / Sets per Month
- Shanghai ningbo Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details

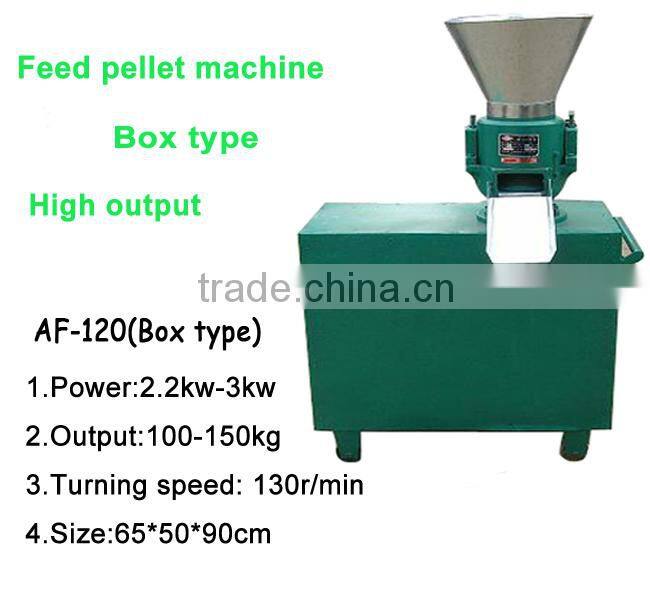

Condition: | New | Place of Origin: | Jiangxi, China | Brand Name: | Alex |
Model Number: | AF-120 | Type: | Feed Pellet Machine | Voltage: | 220-240v |
Power(W): | 2.2kw-3kw | Dimension(L*W*H): | 65*50*90cm | Weight: | 65 kg |
Certification: | CE | Warranty: | 3yrs | After-sales Service Provided: | Overseas third-party support available |
Product Description
Specifications
Box Type Feed Pellet MachinePellet Machine to make wood pellet from sawdust
High Quality Ring die of long lifetime
Instruction
1.Range of use and features of products
HT series flat membrane pellet machines are small and medium-sized pellet feed processing equipments which are specially designed for the feeding in rural areas and small-sized farms and rabbit warren.
Main performances and features
(1) Simple structure and wide applicability. Small cover and low noise.
(2) Power feed and grass power can be made into pellet with only some liquid. Therefore, the water containing rate of pellet feed is the same as before when it is made into the pellet, which means that it is more conductive to storing.
(3) Pellets made by this machine are with high hardness,smooth surface and full of internal curing,which can not only improve digestion and absorption of nutrition but also kill the general pathogenic microorganisms and parasites. They can be used for feeding rabbits, fish, ducks, cattle, sheep and pigs, which have a higher economic benefit compared with mixed power feed.
2. Working principle

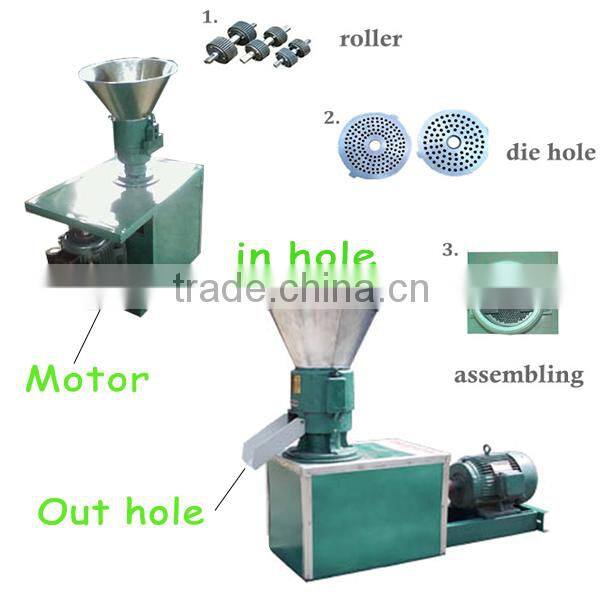

HT series flat membrane pellet feed machine works at the basis of mechanical circular motion, and are driven by the motor power, which can drive gear( or belt) pass to spindle flat membrane and then makes the pressure roller rotate in the function of friction. The high friction temperature between pressure roller and flat membrane can make power material gelatinize under high temperature. Protein coagulates and changes its figure and comes out from membrane hole under extrusion effect. The needed length of pellet can be gained by adjusting cutting knife. Pellet,after discharging, will be sent outside the machine by material throwing tray.
3. Installation, adjustment and preparation before use of the products
(1) Installation:
Ground for installation should be flat and dry and motor should be connected by provision. The leading wire and wiring should be well insulated. All tighteners must be firm and reliable. The direction of spindle must be consistent with the one that the machine makes. After installing, every moving parts should rotate flexibly.
(2) Adjustment

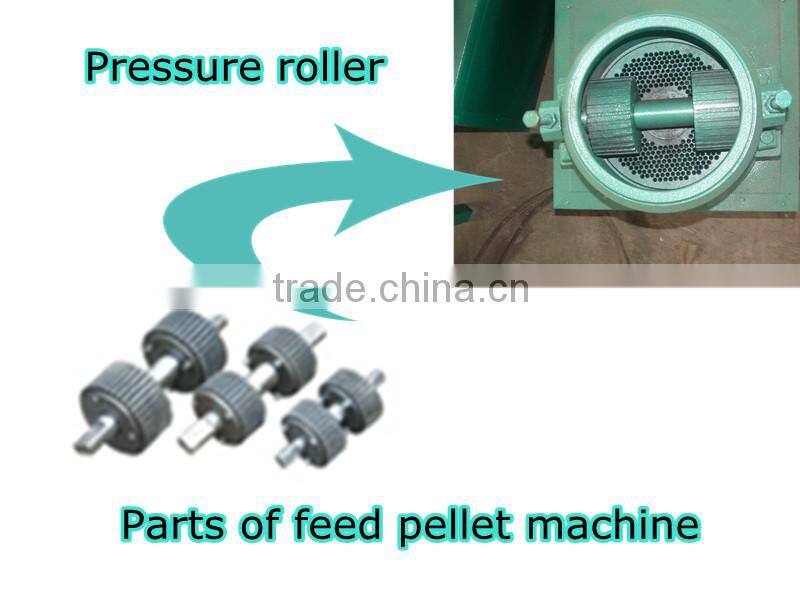

1. Adjustment of the gap of model wheel: to adjust by two hexagonal bolts of the ear base.( usually the gap is 0.1-0.3mm)
2. Adjustment of cutting knife: to loosen the screws which are on the top of feed opening to adjust the upper and lower positions of the cutter.
(3) Preparation before use
1. Clean the machine completely before you use it and check whether the connection and rotation of every part are reliable.
2. Check whether the power supply conforms to the request. Plug in and regulate the spindle to make it consistent with the direction marked.
4.Maintenance
(1) 20#-40# machine oil should be added between pressure roller bearings and pressure axle each time.
(2) When the machine finishes its 100 hours' working, you should take out template and fill grease to the bearings under the spindle. 200 hours' working later, you should dismantle pressure roller and do the cleaning and maintenance. Besides, you should also pay attention to the wear pattens of the bearings. Exchange new parts if necessary.

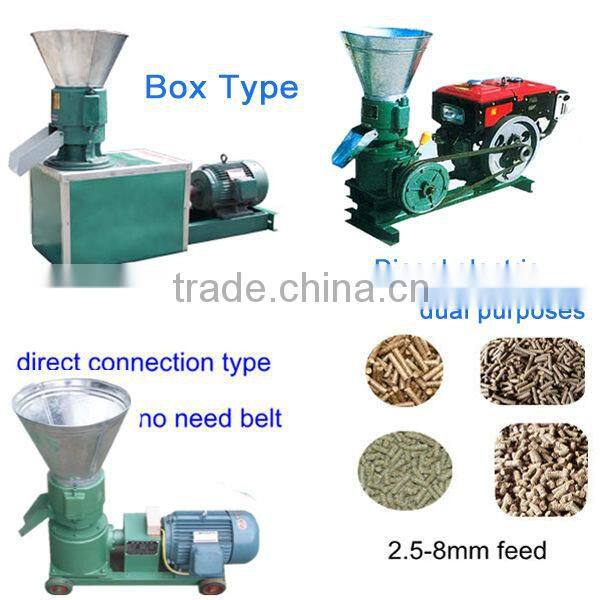

(3) Pellet feed machine which rotates with gear box is though connecting motor and axis of rotation to the gear box to drive the rotation of the template. In order to increase the lifespan of gear box, you should usually pay attention to how much gear oil there are in it. Gear oil needs to be added after suppressing 10,000kg gear oil each time. You should also fill grease to transmission shaft every 1-3 days.
5. Remedy for common breakdown
Fault phenomenon | Causes | Remedy |
Occurring power or big hardness of pellet | 1.Rotation of pressure roller inflexible 2.Improper formula | 1.Dismantle pressure roller and clean it. Add oil or exchange bearings 2.Vary the formula of feed |
Low output, even no material | 1.Uneven or the moisture 2.Big gap between pressure roller and mold plate | 1.Regulate water containing 2.Exchange pressure roller |
No material and high noise | 1. Arch material 2. Material is blocked | 1. Use a wooden stick to pound with a pestle 2. Take a small account of feed with 10% clean water. Squeeze them after stirring to uniformity. Put dry feed to make pellet after the material comes out. |
Shutdown of the machine | 1. Feed is too dry 2. A lot of foreign body in the hopper 3. Little power | 1.Change the formula of feed 2. Turn off the power immediately and take out the foreign body 3,Exchange a bigger power motor |
Cetification
Trade Pattern
1)Lead time: 3-10days.
2)MOQ: 1 piece
3)30% deposit+ balance payment T/T;L/C,escrow,western union,money gram.
4)Loading Port: Qingdao.Ningbo, Shanghai,shenzhen
Q:This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A:We are alibaba legitimate certification company (VIP), and we support payment terms: L/C.Escrow, to ensure your safety.
Q:There are too many models, i don't know which one to choose.
A: Welcome to contact us through TradeManager,we will recommend according to your requirement. If during closing time or weekend,Please send mail to us,we will response within 24 hours.
Q: How to ensure that I received the machine undamaged?

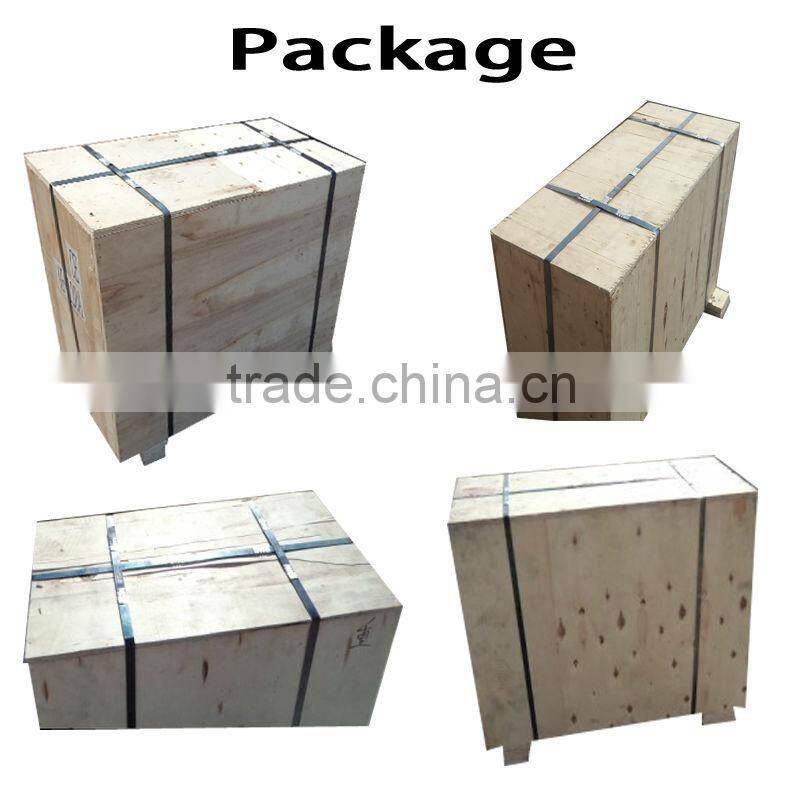

A: At first , our package is standard for shipping, before sign in, please cfm product undamage, otherwse, pls contact with us within 2days, we've bought insurance for you, we or shipping company will be responsible!
Contact me freely
Contact Us
- Nanchang Alex Electric Factory
- Contact nameleo leo
- Phone86-0791-88199006
- Addressqingshanhu Nanchang,Jiangxi
