High Quality Automatic Small Scale Bottle Filling Machine

High Quality Automatic Small Scale Bottle Filling Machine thumbnail-1
High Quality Automatic Small Scale Bottle Filling Machine thumbnail-2
High Quality Automatic Small Scale Bottle Filling Machine thumbnail-3
High Quality Automatic Small Scale Bottle Filling Machine thumbnail-4
High Quality Automatic Small Scale Bottle Filling Machine thumbnail-5
High Quality Automatic Small Scale Bottle Filling Machine thumbnail-6
High Quality Automatic Small Scale Bottle Filling Machine photo-1
High Quality Automatic Small Scale Bottle Filling Machine photo-2

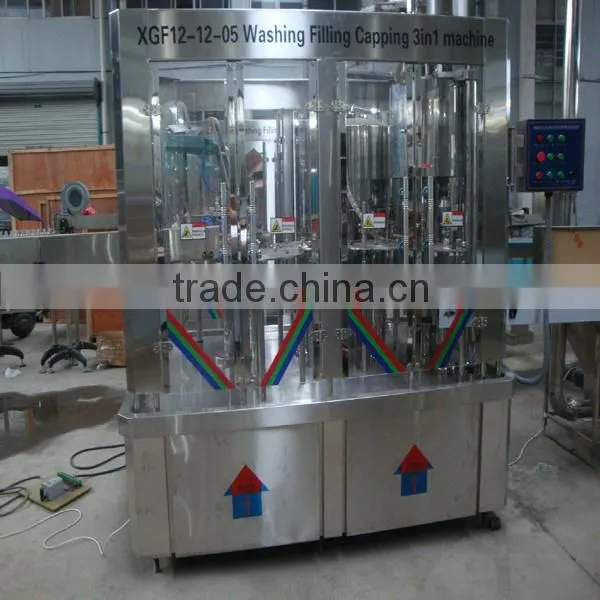

High Quality Automatic Small Scale Bottle Filling Machine photo-3
High Quality Automatic Small Scale Bottle Filling Machine photo-4
High Quality Automatic Small Scale Bottle Filling Machine photo-5

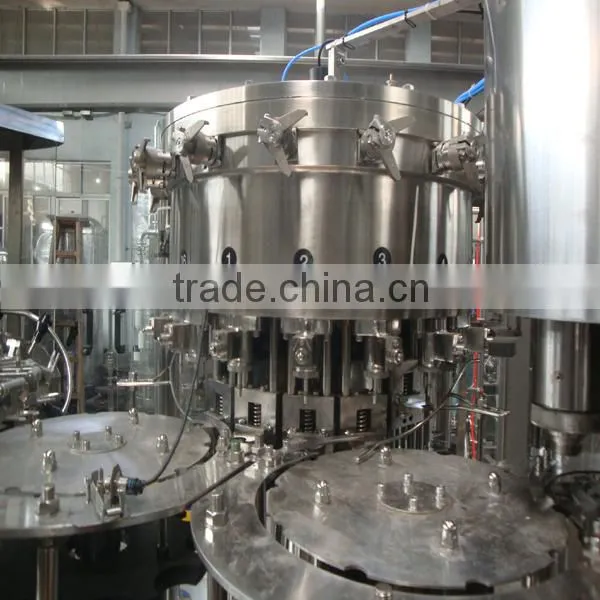

High Quality Automatic Small Scale Bottle Filling Machine photo-6
US$ 16,300 - 21,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Commodity, Food, Other, Beverage, Commodity, Food, water
Packaging Type:
Bottles
Contact Supplier Request Quote Chat Now
Ruian Honetop Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Beverage, Commodity, Food, Other, Beverage, Commodity, Food, water
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/380V can be customized
Power 4.5kw
Place of Origin Zhejiang, China
Brand Name Honetop
Model Number XGF12-12-5
Dimension(L*W*H) 2400*1800*2300mm
Weight 2500kg
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

High quality Automatic small scale bottle filling machine



High quality Automatic small scale bottle filling machine

High quality Automatic small scale bottle filling machine

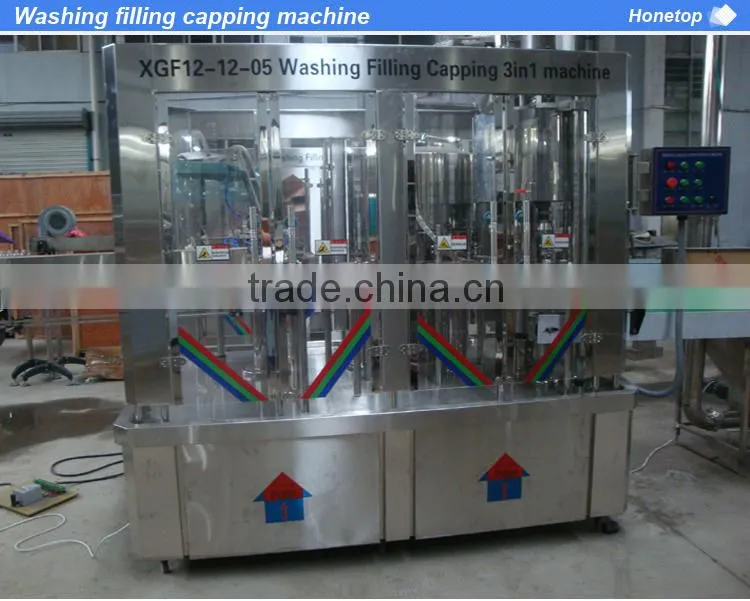

This small scale bottle filling machine XGF12-12-5 is suitable for pure water,wine,and other liquid with normal temperature. Not suitable for juice,tea drinks in high temperature hot filling condition.

High quality Automatic small scale bottle filling machine

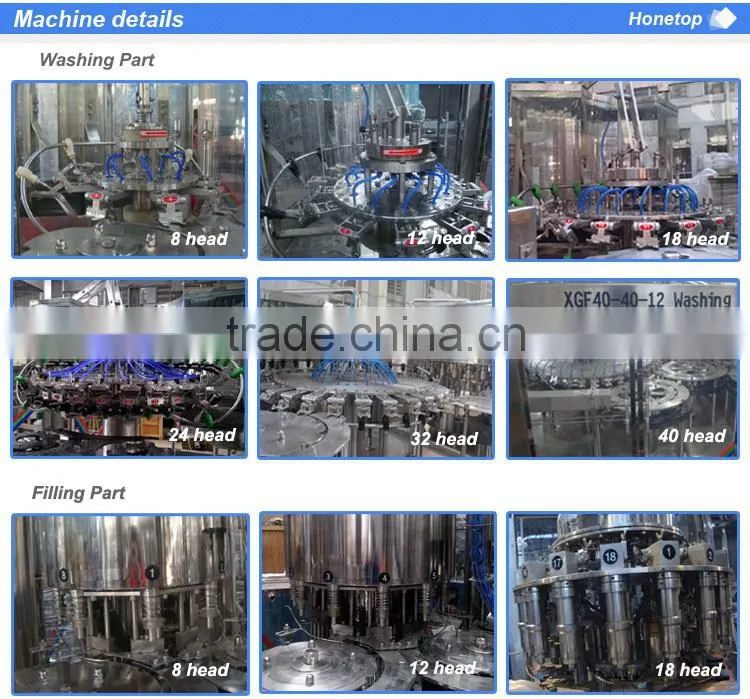

1. Automatic Bottling 3 in 1 small scale bottle filling machine  adopts Washing/Filling/Capping 3-in-1 technology, PLC control, Touch Screen, it is mainly made of SUS304.



2.Zero reversal washing bottles of fixture can make diameter larger bottle on the equipment.



3. Filling system has level sensor, can automatically control the liquid level.



4.Automatic stop device when bottle was hold back.



5.Automatic stop device when the motor was overloaded.



6.Using magnetic torque sealing technology, magnetic torque size is adjustable.



7.Adopting high precision, high speed quantitative filling valve, liquid level accurate can ensure quality of accurate filling.

 High quality Automatic small scale bottle filling machine

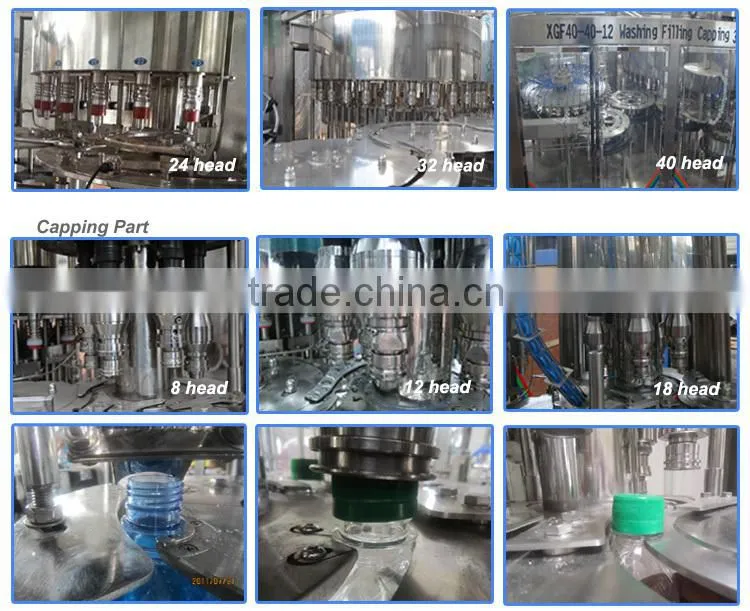

Model

XGF8-8-3

XGF12-12-5

XGF18-18-6



XGF24-24-8

XGF32-32-10

XGF40-40-10

XGF50-50-12

Production capacity

500ml(mm)

3000

4500

8000

10000

15000

18000

20000

Suitable height(mm)

150-340

150-340

150-340

150-340

150-340

150-340

150-340

Suitable diameter(mm)

Φ50-Φ110

Φ50-Φ110

Φ50-Φ110

Φ50-Φ110

Φ50-Φ110

Φ50-Φ110

Φ50-Φ110

Spraying Pressure(Mpa)















Power supply(KW)

2.2

3.2

3.8

4.2

5.6

6.3

7.5

Filling Temperature

Room temperature

Overall Size:

L*W*H(mm)

2100*1500*

2300

2400*1800*

2300

2500*1800*

2300

2800*2000*

2400

3700*2600*

2600

4000*3000*

2600

4500*3400*

2600

Total weight(KG)

2000

2500

3000

4000

5000

6000

7200



 High quality Automatic small scale bottle filling machineHigh quality Automatic small scale bottle filling machineHigh quality Automatic small scale bottle filling machineHigh quality Automatic small scale bottle filling machineHigh quality Automatic small scale bottle filling machineHigh quality Automatic small scale bottle filling machineHigh quality Automatic small scale bottle filling machine

High quality Automatic small scale bottle filling machineHigh quality Automatic small scale bottle filling machine
