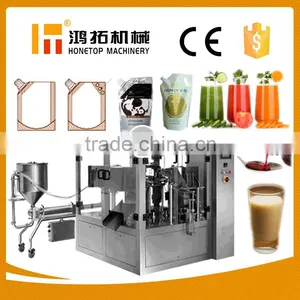

High quality automatic liquid packaging machine
|

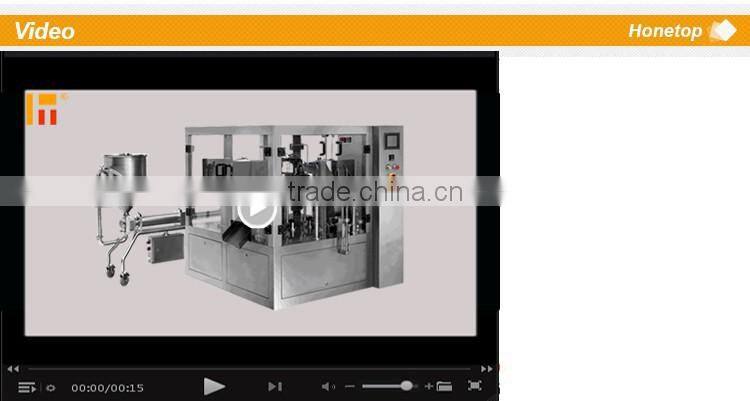

Potato Chips Vertical Packing Machine HTL-420C |
https://youtu.be/zoNisvz324Q |
Food Rotary Packing Machine HT-8G |
https://youtu.be/_dE9ARewCr8 |
Small Granule Packing Machine HTL-400A |
https://youtu.be/yt3ulgZiehk |
Small Powder Packing Machine HTL-400F |
https://youtu.be/jCMy3GmEDYs |
Vertical Powder Packing Machine HTL-420F |
https://youtu.be/vY_VJA8LjzI |
Zipper Pouch Rotary Packing Machine HT-8F |
https://youtu.be/WhiTwPWwOts |

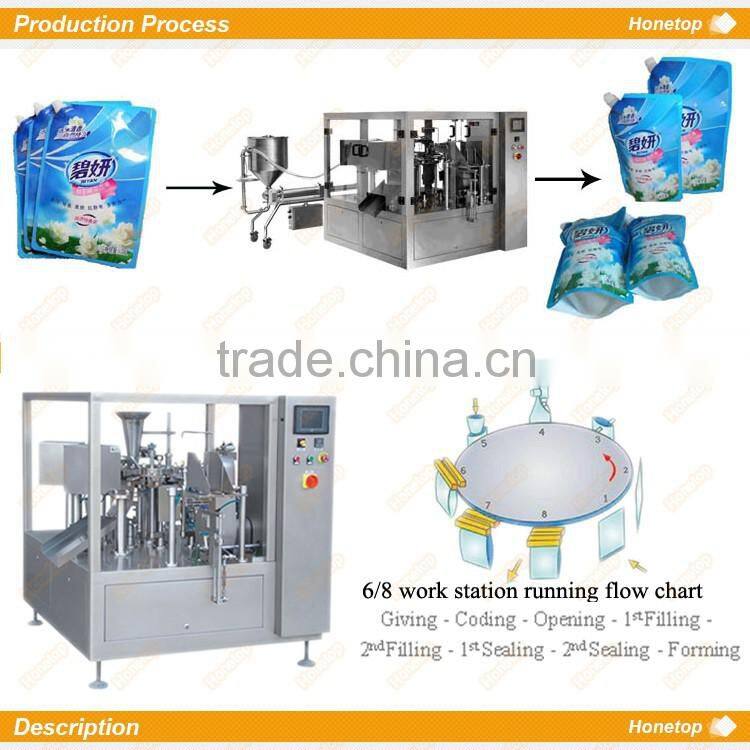

1.The liquid packaging machine can be fully automatic operation, it can achieve product packing assembly line work, and improve production efficiency and significantly reduce product cost.
2.The liquid packaging machine conforms to the food processing machinery's sanitation standard. On the machine, the spare part which contacts with the material and pouch conforms to the standard of food sanitation request on material processing, food health and security guarantee.

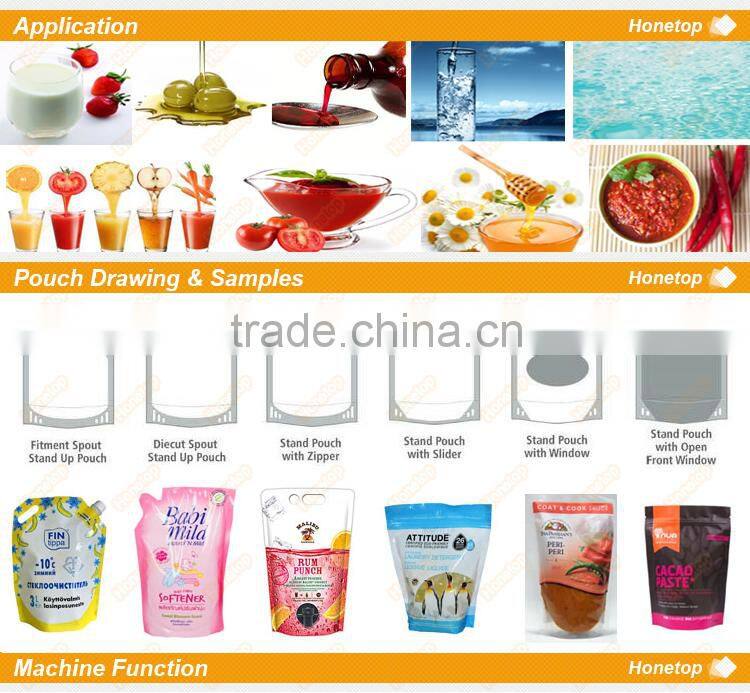

3.This liquid packaging machine is suitable for the packing liquid, the hydrodynamic material, such as detergent, yellow wine, soy sauce, vinegar, fruit juice, ketchup, peanut thick liquid, jam, hot pepper sauce, thick bean sauce packed in bags.

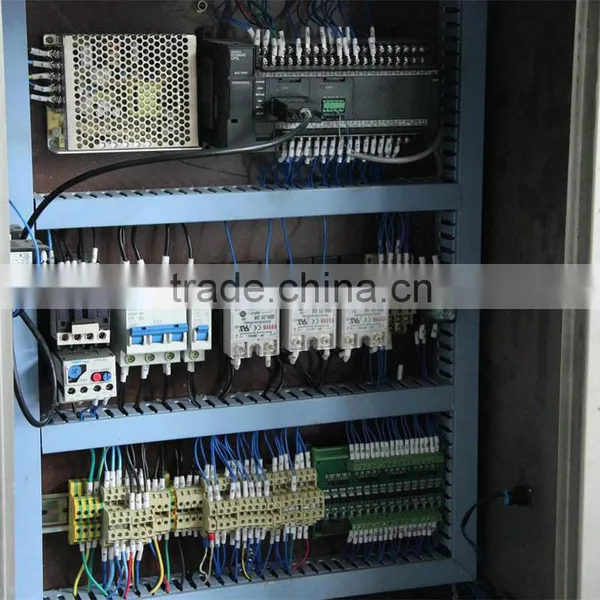

1. Easy to operate. The machine with Japan Mitsubishi PLC control, man-machine interface with touch screen control system, it can be operate easily.
2. Frequency control. The machine with frequency control, the required speed can be adjustable within the range according to any needs of reality in production.

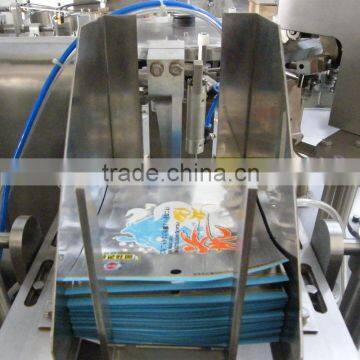

3. Automatic detection. No pouch or pouch is not opened completely, no feeding, no sealing, pouch can be reused, avoid wasting materials, it can reduce production costs for user.
4. Safety devices, when the abnormal pressure of work or failure of heating pipe, it will alarm.
5. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily operate, and save time.
6. Part of plastic bearings are imported, no oil, reduce pollution materials.
7. Use no oil vacuum pump, avoid polluting the environment in the production.

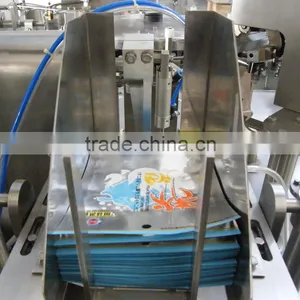

8. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification.
Model |
HT-8Y |
Packing range(bag size) |
Width 100-200mm, Length 100-300mm |
Packing Weight |
≤ 500ml |
Capacity |
30-50 bag/min (speed depends on filling product &weight) |
Packing Precision |
error<±1% |
Pouch type |
Stand-up bag,Flat bag, paper bag,composite material etc. |
Total Power |
2 kw |
Compressed Air Consumption |
0.6 m3/min |
Voltage |
3 Phase 380V 50HZ/60HZ |
Total Size |
(L)2420*(W)1510*(H)1480mm |
Machine Weight |
1200 kg |
Note: |
1.According to the customer request,provides the special design. 2.The machine disposition may make the choice. |
