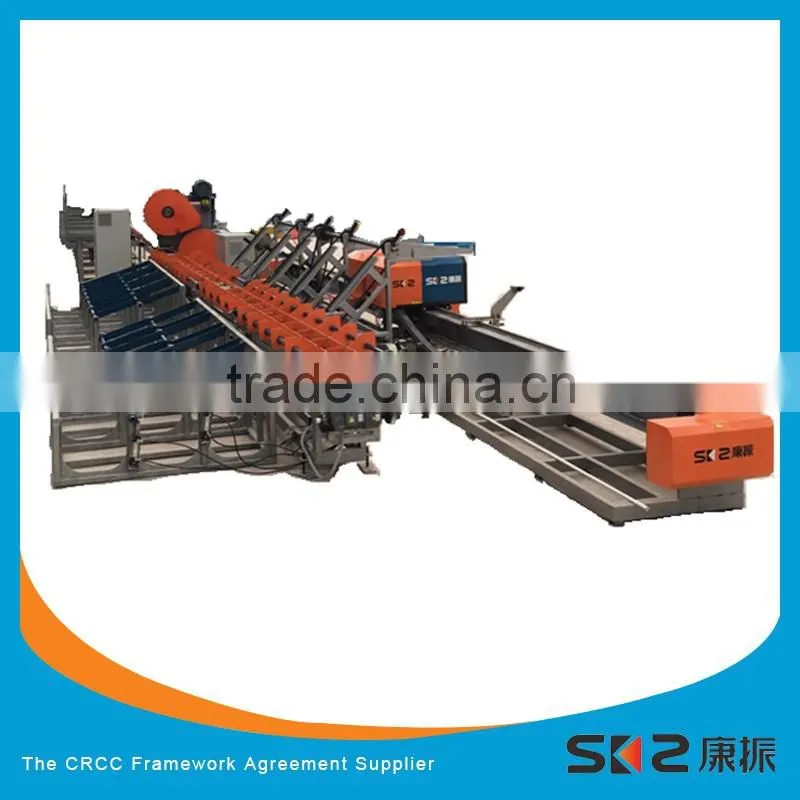

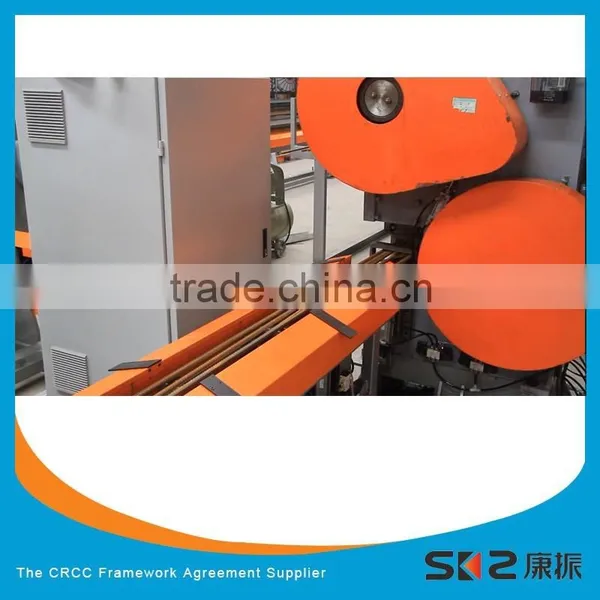

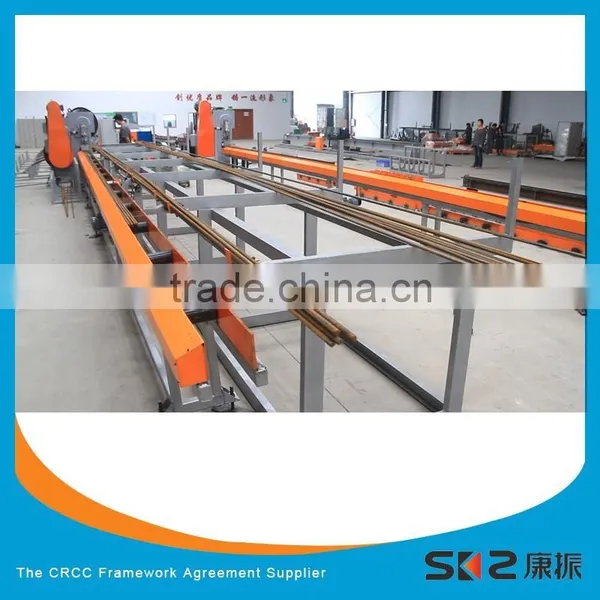

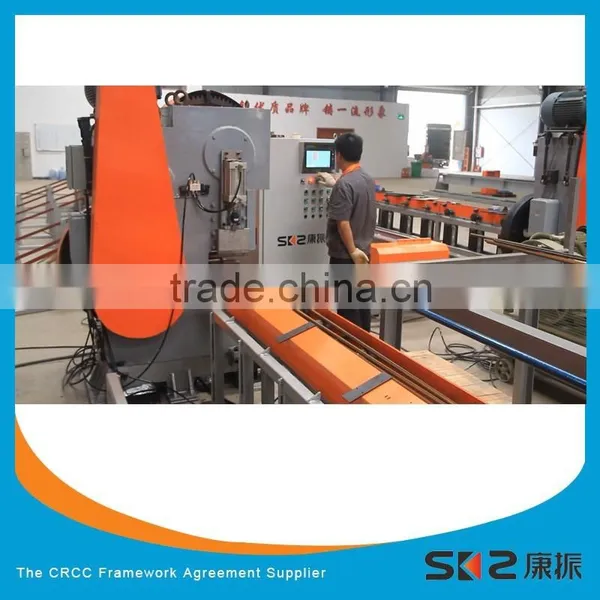

Integrated CNC Rebar Cutting and Bending Machine KZQW32B
Ⅰ. Description:
This machine consists of CNC rebar cutting machine and CNC rebar bending center, It combines the advantages of two machines into integrated line,achieves a lean production in the rebar processing industry .
Ⅱ.Features
1, Save space: The finished rebar of cutting does not need to arrange storage space, equipment covers around 120 square meters;
2, Reduce manual: Without lifting and handling, bar direct molding
3, Increase efficiency: To achieve bending finished products from raw materials in the shortest time
4, Quality assurance: up/down operation closely linked with the timely detection of exception and correct;
5, Simple operation: The equipment is equipped with humanize operating procedures, modular set, optional operation, the operation is extremely simple. Ⅲ. Technical Parameter.
Name |
CNC Rebar shears |
||||||||||||
Model |
KZQ150 |
||||||||||||
Max shear force |
1500KN |
||||||||||||
Cutting speed |
27/min |
||||||||||||
Max steel strength |
570MPa |
||||||||||||
Cutting length |
manual |
0-900 mm |
|||||||||||
automatic |
900-12000 mm |
||||||||||||
cutting capacity |
¢ |
10 |
12 |
14 |
16 |
18 |
20 |
22 |
25 |
28 |
32 |
36 |
40 |
|
Deformed bar Ⅲ Grade n. |
10 |
10 |
8 |
6 |
5 |
4 |
3 |
2 |
1 |
1 |
1 |
1 |
|
|
Round bar Ⅰ Grade n. |
12 |
12 |
10 |
8 |
6 |
6 |
4 |
3 |
2 |
1 |
1 |
1 |
|
Conveying Speed |
≤60m/min |
||||||||||||
Average Power consumption |
14KW/h |
||||||||||||
Model |
KZ2L32 |
||||||||||
Max Bending Angle (0) |
φ6-φ28 |
+1800 |
|||||||||
-1200 | |||||||||||
φ32 |
+900 |
||||||||||
-900 | |||||||||||
Max Bending Size(mm) |
10500 |
||||||||||
Min Bending Size (mm) |
90 |
||||||||||
Min Bending Side Length |
(φ10),(630mm) |
||||||||||
(φ25),(650mm) | |||||||||||
Length Tolerance (mm) |
±2 |
||||||||||
Bending Tolerance (0) |
±1 |
||||||||||
Speed Control |
CNC Servo control |
||||||||||
Installed Power(KW) |
14 |
||||||||||
Installed Voltage |
380V 50Hz |
||||||||||
Moving Speed(m/s) |
0.2-0.9 |
||||||||||
Bending Speed (0/s ) |
65 |
||||||||||
Working(0C) |
0—40 |
||||||||||
Cylinder Pressure(Mpa) |
0.6 |
||||||||||
manufacture range |
Strand Diameterφ(mm) |
10 |
12 |
14 |
16 |
20 |
22 |
25 |
28 |
32 |
|
Nos .to be sheared(pcs) |
6 |
5 |
4 |
3 |
3 |
2 |
2 |
1 |
1 |
||
Weight(kg) |
4500 |
||||||||||
QC
a. Every components and parts are examined and detected before assembling.
b. Every parts are assembled exactly according to the machine structure directions.
c. The machines are tested and checked carefully when they come off the production line.

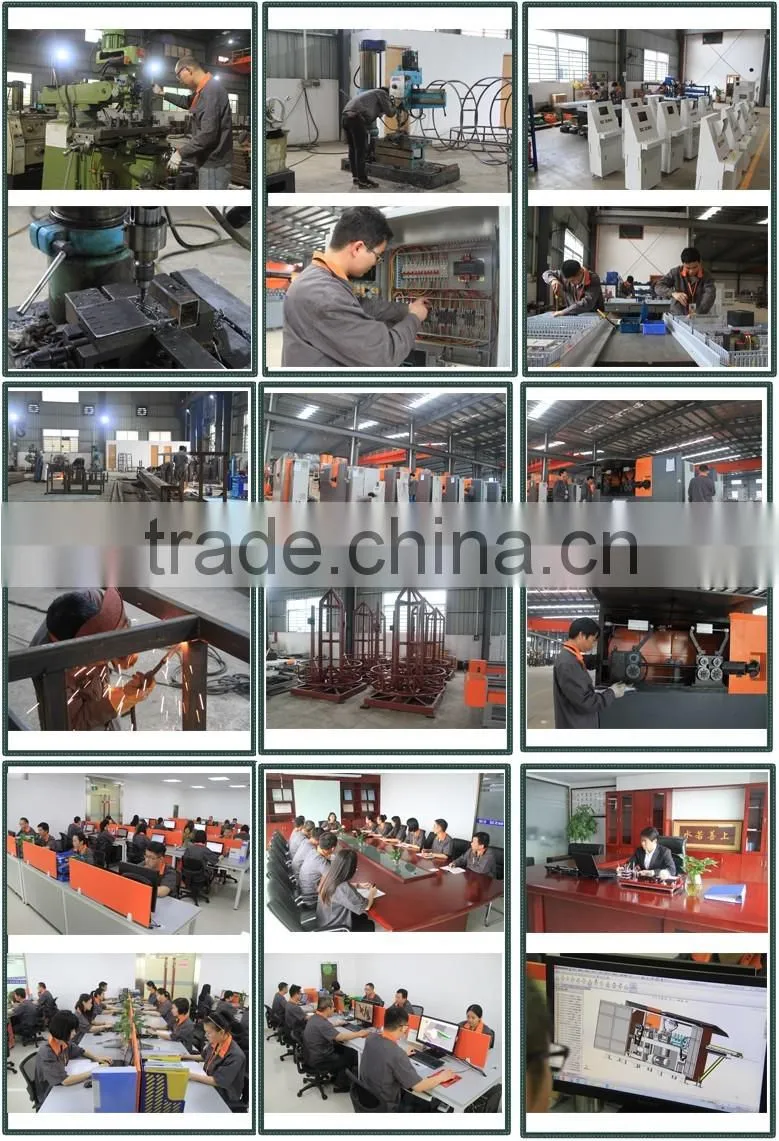

R&D
This machine is our well designed industry products, which evolves our team’s hard research, customers’ advise and competitor’s advantage.
We have and will never stop in doing research on latest technology!
Our Service:
Pre-sale Service
1. Supply item design, process design.
2. Help you choose a proper machine.
3. Making the machine according to your requirement.
Sale Service
1. Acceptance equipment together with you.
2. Help you to make the method statement and the details of the process.
After-sales Service
1. Guarantee for a year.
2. Quality problem, we will send you the accessories.
3. Free repair whole using life (without the freight and accessories charge)
4. SKZ has a professional and international experienced after service team. They all have more than 5 years’ experience and most of them have experience of oversea technical support.
FAQ:
1. Q: Are you a factory or trading company?
A: We are a manufacturer with strong capability in research,development and manufacturing, you could get factory price from us.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Shenzhen City, Guangdong Province, China. It’s about 20 km away from Shenzhen Baoan international Airport and there is direct subway connecting HongKong. The traffic is very convenient.
All our clients, from home or abroad, are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM products.
4. Q: what have you company accomplished since establishment?
A: Our company is a state high-tech enterprise, our rebar processing machinery are used in hundreds of infrastructure projects both with China and abroad. We are the framework agreement supplier to CRCC(CHINA RAILWAY CONSTRUCTION CORPORATION)we have a experienced scientific research team and after-sales service team.
