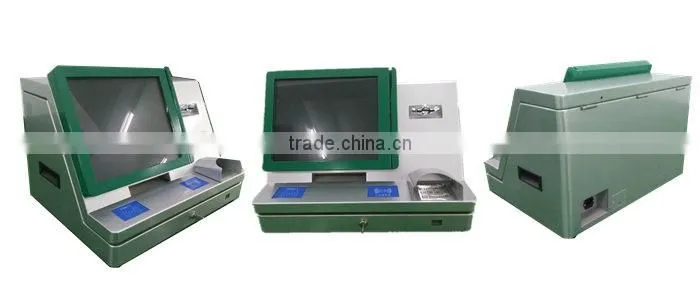

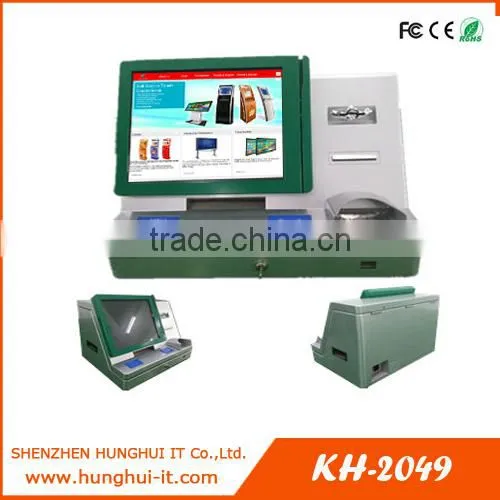

Multifunction Touch Screen Bank MICR Passbook Printing Kiosk and A4 Document Printing Kiosk
US$ 1,200 - 2,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Hunghui IT
Model Number:
KH-2049
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Viewing Angle Adjustable Landscape Touch Screen Information Interactive KioskUS$ 1,000 - 3,000MOQ: 1 Piece -
32/42 Inch TFT Vertical LCD Kiosk Advertising Display/ad PalyerUS$ 900 - 1,900MOQ: 1 Set
-
42inch Digital Diaplay Stand or Kiosk / Lobby Touch Screen KioskUS$ 900 - 1,900MOQ: 1 Set
-
Lobby Electronic Dispaly Stand or Kiosk / Touch Screen Display KioskUS$ 1,000 - 2,500MOQ: 1 Set
-
TFT LCD Touch Screen Kiosk Desgin for Shopping Mall / HotelUS$ 1,000 - 2,500MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Hunghui IT
Model Number
KH-2049
Multifunction Desktop Touch Screen Bank MICR Passbook Printing Kiosk and A4 Document Printing Kiosk
Basic configuration
|
Basic Configuration
| ||
|
Central PC (Customizable) |
Motherboard |
H61 |
| CPU | Dual core G2030, Main frequency: 3.0 GHz, Interface type: LGA 1155. Optional: i3/i5/i7 | |
| RAM | DDRIII 4G / 8G | |
| HDD | 500G, 7200rpm, 3.5" S-ATA | |
| Inter face | RS-232 Ports; LTP; USB Ports, 10/100M Net Port; Integrated Net Card, Sound Card | |
|
Monitor
|
Screen size | 17" |
| Brightness | 300cd/m2 | |
| Contrast | 800:1 | |
| Response time | 5ms | |
| Dot pitch | 0.264mm | |
| Best resolution | 1280x1024 | |
|
Touch Screen |
Screen size | 17" |
| Touch type | SAW, Infrared, Capacitive | |
| Resolution | 4096x4096 | |
| Feature | High transparence, precision and durability | |
| Card reader | Magnetic card, Chip card, RFID Card | |
| Pinpad | 16 keys numuric pin pad | |
Passbook printer |
Print direction: Bi-direction with logic seeking with built in 2D scanner, optional to have MICR reader |
|
|
Kiosk Enclosure |
Material | Cold-rolled steel ST12 SPCC with 1.5mm~2.0mm thickness. |
| Surface finishing | Car painting technology. Steel cabinet sprayed metallic paint, Anti-rust, Anti-acid, Anti-dust. | |
| Color and Logo | Customizable | |
| Features | Easy service access through front or back door. |
|
| Accessories | Speakers | Stereo loudspeaker, 8Ω 10W |
| Fans | Internal ventilation system | |
|
Power Supply |
Input voltage | 100~240V/AC |
| Frequency | 50Hz to 60Hz | |
| Operation System | Windows 2000 / Windows XP / Windows 7 / Vista / Windows 8 / Linux | |
| Package | Safe packing with bubble foam, carton box or plywood case | |
| Safety | Anti-vandal safety; | |
| Electric safety: compliant with GB4943 Standard; | ||
| EMC(Electro Magnetic Compatibility): Compliant with GB9254 and GB/T17626 Standard | ||
| Monitoring system: Digital video security monitoring system (optional) | ||
|
Data safety: EPP is compliant with VISA Security Standard, PCI compliant (optional) ; Card reader is compliant with EMV Level1 Standard; | ||
Pictures
Our Services
- Fast response: Our Sales representative will respond your inquries within 12 working hours;
- Pre sales technical consultation: Our engineer team has more than 10-year experiences in kiosk industry, we will always offer you suitable solutions according to requirements;
- Software development support: We provide API for all the components to support software development, and we could also provide software developing service if you could provide necessary APIs
- Fast and on time delivery: We guarranty on time delivery, you could receive goods at expected time;
- Warranty: for 12 months, and lifetime maintenance support.
