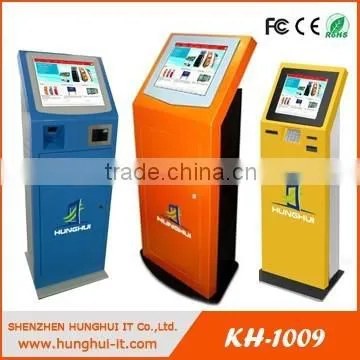

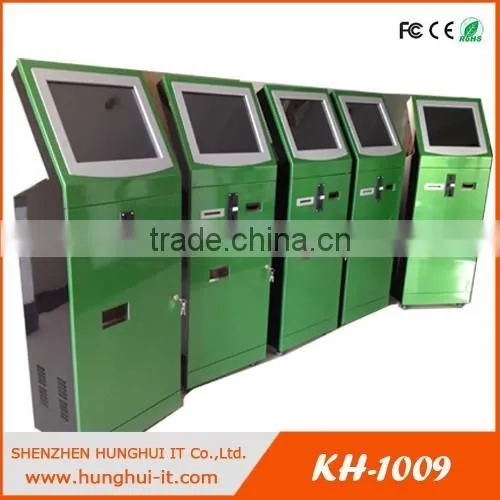

21.5 inch Multi touch screen Hotel check in kiosk with pc

1pcs/carton

Specifications

Mayfair card reader kiosk
-Industry-level structural design
-Low power consumption,green to environment
-Multi-touch,WIFI,3G



LCD Brand	LG/Samsung/Chimei/AUO
Panel Size	15" TO 65"
Aspect Ratio	16:9 Or 4:3
Max Resolution	1960*1080
Color	16.7M
Brightness	500cd/ m2
Contrast Ratio	5000:1
Response Time	6ms
Panel life	Above 50000hours



Computer Configuration

Type	C-1	C-2	C-3
CPU	Intel G2020 Pentium Dual Core 2.9G	Intel Core i3-3220 dual-core 3.2G	Intel Core i5-2300 quad-core 2.8G
RAM	2GB(4GB,8GB)
Graphic	Integrated
HDD	320G SATA HDD (HDD capacity & SSD can be customized)
LAN	10/100/1000M Auto-adjust Gigabit Ethernet included
WIFI	High quality  WiFi module
Audio	HD 8(7.1) Channel Audio System
Speaker	2 build-in high quality stereo speaks(3w or 5w)
I/O Ports	4 x USB Ports included HDMI*1;VGA*1;RS232*1 RJ45*1;MIC*1,PC*1
Pre-Installed OS	Windows7 or Windows 8
Mouse/Keyboard	wireless suit(optional)



Touch screen features:

 Optional size: 15" to 65"

Touch screen:infared touch screen

* Resolution: 4096*4096

* Material :pure tempered glass

*Brightness: 300cd/mm

*lens transmission :>95%

*Orientation precision: < 2mm0.080 inch

*Single-point touch Life expectancy :more than 50,000,000 times

*Surface hardness: equivalent to glass,7 Mohs

*Dust-proof, explosive proof.vandal-proof

*Durability:7 years



Product Features:

Adopt Samsung, LG,AUO or CHIMEI brand LCD Panel,full new A grade and factory original packing screen.

High-class plastic or metal material frame.

Touch Screen, Wi-fi,bluetooth,HD webcam is optional.

Low power consumption and space saving.

Industry-level structural design;Vandal-proof, dust-proof, anti-static, anti-interference, low power consumption,green to environment



Optional Configurations:

Following components can be integrated into Kiosk upon specific application requirement.

• Coin Acceptor
• Coin Hopper
• Check Reader
• Passport Reader
• Fingerprint Reader
• Bar-code Scanner
• Card printer
• Card dispenser
• A4 laser/thermal printer
• Wireless connective (WIFI/GSM/GPRS)
• UPS
• Telephone
• Camera
• Motion Sensor
• Air conditioner

Applicable field:

Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated hotels, restaurants, travel agencies, pharmacy.

Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops;

Non-profit Organizations:Telecommunications, post offices, hospital, schools;

Public Places:subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums, convention centers, ticket agencies, HR market, lottery centers;

Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;

Entertainments:Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops, golf course.
